SDO HMI 2014-08-16 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.24 | 0.00 | 8.34 | -5.05 | 27.34 | -41.57 | 104.80 | 0.6848 | 456.5 | 328.1 | |
|
previous
or next observation for the same group /

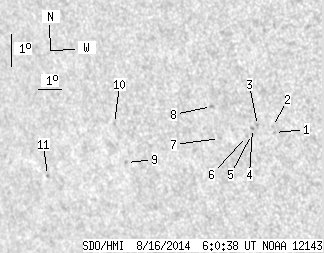

back to the solar disc SDO HMI 2014-08-16 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.70 | -4.70 | 30.42 | -38.49 | 105.52 | 0.6461 | 698.0 | 569.9 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -4.52 | 30.36 | -38.56 | 105.22 | 0.6462 | 702.0 | 568.7 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -4.53 | 29.77 | -39.15 | 104.99 | 0.6538 | 666.0 | 605.0 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -4.64 | 29.56 | -39.35 | 105.07 | 0.6568 | 690.0 | 563.9 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -4.83 | 29.51 | -39.40 | 105.32 | 0.6581 | 780.0 | 634.0 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -4.90 | 29.31 | -39.61 | 105.35 | 0.6610 | 635.0 | 503.2 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -5.05 | 28.22 | -40.70 | 105.11 | 0.6751 | 545.0 | 412.7 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -4.08 | 27.96 | -40.95 | 103.62 | 0.6750 | 712.0 | 533.6 | |
| 0.00 | 1.44 | 0.00 | 1.04 | -6.11 | 24.24 | -44.67 | 105.06 | 0.7262 | -628.0 | -573.6 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -4.93 | 23.84 | -45.07 | 103.35 | 0.7273 | -157.0 | -177.3 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -6.82 | 20.63 | -48.28 | 104.74 | 0.7686 | 379.0 | 353.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
