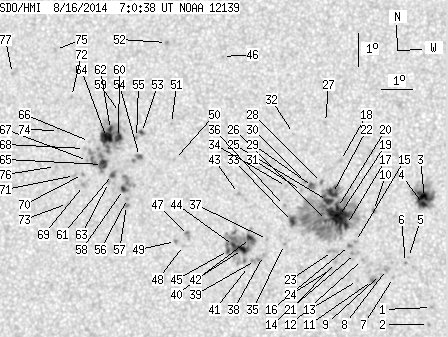

SDO HMI 2014-08-16 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.33 | 531.54 | 57.63 | 273.03 | 13.75 | 55.16 | -13.21 | 59.65 | 0.2568 | -216.7 | -51.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.65 | 60.46 | -7.91 | 62.63 | 0.1529 | -930.0 | -723.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.13 | 60.38 | -7.99 | 65.97 | 0.1504 | -885.0 | -755.8 | |
| 13.34 | 42.64 | 6.73 | 21.52 | 14.00 | 60.14 | -8.23 | 47.26 | 0.1899 | -1272.5 | -527.9 | |
| 4.51 | -3.00 | 2.27 | -3.00 | 13.78 | 60.12 | -8.25 | 48.21 | 0.1877 | -1171.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 12.16 | 59.70 | -8.67 | 56.78 | 0.1769 | -863.0 | -735.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.00 | 59.61 | -8.76 | 57.79 | 0.1768 | -875.0 | -688.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.54 | 59.25 | -9.12 | 61.05 | 0.1783 | -875.0 | -686.2 | |
| 0.00 | 3.97 | 0.00 | 2.00 | 11.78 | 59.02 | -9.35 | 60.45 | 0.1836 | -1067.0 | -887.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.62 | 58.84 | -9.53 | 61.65 | 0.1851 | -895.0 | -727.2 | |
| 0.36 | 1.35 | 0.18 | 0.68 | 13.57 | 58.54 | -9.82 | 53.79 | 0.2065 | -884.2 | -634.8 | |
| 0.36 | 4.69 | 0.18 | 2.36 | 11.44 | 58.59 | -9.78 | 63.13 | 0.1874 | -1028.8 | -828.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.07 | 58.25 | -10.11 | 60.93 | 0.1973 | -950.0 | -797.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.43 | 58.12 | -10.25 | 64.19 | 0.1946 | -748.0 | -555.9 | |
| 0.00 | 3.16 | 0.00 | 1.60 | 12.25 | 58.03 | -10.34 | 60.65 | 0.2021 | -872.0 | -814.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 12.62 | 58.01 | -10.35 | 59.10 | 0.2053 | -901.0 | -698.8 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 12.49 | 57.83 | -10.54 | 60.06 | 0.2070 | -1175.0 | -1045.5 | |
| 3.70 | 220.51 | 1.87 | 112.12 | 13.13 | 57.71 | -10.66 | 57.67 | 0.2142 | -1241.5 | -376.8 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 15.08 | 57.42 | -10.94 | 51.10 | 0.2366 | -765.0 | -456.2 | |
| 29.39 | -17.00 | 14.92 | -17.00 | 13.37 | 57.44 | -10.93 | 57.33 | 0.2200 | -1270.3 | 999999 | |
| 3.43 | -17.00 | 1.74 | -17.00 | 13.64 | 57.40 | -10.97 | 56.37 | 0.2231 | -1184.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 11.96 | 57.41 | -10.96 | 63.22 | 0.2093 | -794.0 | -649.5 | |
| 5.14 | -17.00 | 2.62 | -17.00 | 14.07 | 57.22 | -11.15 | 55.18 | 0.2295 | -1086.8 | 999999 | |
| 0.00 | 4.69 | 0.00 | 2.38 | 12.30 | 57.30 | -11.07 | 62.01 | 0.2134 | -863.0 | -689.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 11.75 | 57.26 | -11.11 | 64.45 | 0.2101 | -872.0 | -644.1 | |
| 5.77 | -17.00 | 2.94 | -17.00 | 13.85 | 57.07 | -11.30 | 56.33 | 0.2296 | -1119.3 | 999999 | |
| 1.62 | -17.00 | 0.82 | -17.00 | 13.24 | 57.07 | -11.30 | 58.67 | 0.2243 | -770.9 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 16.24 | 56.88 | -11.49 | 48.69 | 0.2557 | -788.0 | -592.0 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 14.40 | 56.85 | -11.52 | 54.83 | 0.2376 | -884.0 | -690.7 | |
| 0.00 | 4.42 | 0.00 | 2.25 | 14.27 | 56.57 | -11.80 | 55.90 | 0.2404 | -1041.0 | -903.7 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 14.42 | 56.34 | -12.03 | 55.87 | 0.2449 | -754.0 | -627.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 14.14 | 56.22 | -12.14 | 57.08 | 0.2441 | -707.0 | -607.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.88 | 55.87 | -12.50 | 52.07 | 0.2651 | -728.0 | -510.8 | |
| 3.43 | -17.00 | 1.75 | -17.00 | 13.18 | 55.99 | -12.38 | 61.02 | 0.2397 | 886.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 14.25 | 55.74 | -12.63 | 57.66 | 0.2520 | -618.0 | -412.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.48 | 55.77 | -12.60 | 64.10 | 0.2379 | 939.0 | 754.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 13.67 | 55.70 | -12.66 | 59.77 | 0.2476 | -731.0 | -575.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.62 | 55.22 | -13.15 | 64.46 | 0.2472 | 799.0 | 652.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.12 | 55.11 | -13.25 | 66.46 | 0.2456 | 887.0 | 655.8 | |
| 0.00 | 4.96 | 0.00 | 2.54 | 11.97 | 54.87 | -13.50 | 67.42 | 0.2485 | 917.0 | 811.1 | |
| 3.25 | 62.84 | 1.66 | 32.23 | 12.63 | 54.67 | -13.70 | 65.22 | 0.2556 | 1080.5 | -14.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.78 | 54.65 | -13.72 | 68.42 | 0.2507 | 810.0 | 646.5 | |
| 4.15 | -40.00 | 2.13 | -40.00 | 12.29 | 54.43 | -13.93 | 66.80 | 0.2571 | -1045.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 14.00 | 54.21 | -14.16 | 61.20 | 0.2721 | -907.0 | -672.1 | |
| 1.35 | -40.00 | 0.69 | -40.00 | 12.40 | 54.14 | -14.23 | 66.79 | 0.2624 | -955.7 | 999999 | |
| 1.44 | -40.00 | 0.74 | -40.00 | 12.25 | 53.99 | -14.38 | 67.54 | 0.2638 | -826.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.19 | 53.37 | -14.99 | 50.43 | 0.3202 | -700.0 | -521.8 | |
| 0.00 | 4.15 | 0.00 | 2.14 | 12.67 | 52.67 | -15.69 | 67.69 | 0.2865 | 1088.0 | 849.1 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 12.36 | 52.53 | -15.84 | 68.87 | 0.2870 | 722.0 | 481.6 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 12.47 | 52.27 | -16.10 | 68.78 | 0.2918 | 973.0 | 798.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 14.98 | 52.06 | -16.31 | 61.29 | 0.3107 | 855.0 | 699.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 16.08 | 51.87 | -16.50 | 58.43 | 0.3216 | 829.0 | 599.5 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 18.57 | 51.47 | -16.89 | 52.60 | 0.3482 | 968.0 | 820.1 | |
| 1.26 | 2.16 | 0.66 | 1.14 | 15.77 | 50.91 | -17.46 | 60.57 | 0.3330 | 943.1 | 791.2 | |
| 1.35 | 6.31 | 0.71 | 3.31 | 15.03 | 50.90 | -17.46 | 62.61 | 0.3279 | 1087.1 | 900.0 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 15.61 | 50.76 | -17.61 | 61.19 | 0.3340 | 1014.0 | 868.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 13.74 | 50.61 | -17.75 | 66.64 | 0.3241 | 898.0 | 770.6 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 13.52 | 50.60 | -17.77 | 67.28 | 0.3231 | 1029.0 | 875.8 | |
| 2.07 | 15.60 | 1.09 | 8.17 | 14.01 | 50.46 | -17.91 | 66.02 | 0.3279 | 1187.1 | 922.3 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 16.36 | 50.12 | -18.25 | 59.99 | 0.3484 | 835.0 | 715.5 | |
| 5.05 | 82.13 | 2.66 | 43.35 | 15.59 | 50.16 | -18.21 | 61.96 | 0.3424 | 1183.4 | 696.9 | |
| 1.71 | 3.07 | 0.90 | 1.61 | 14.45 | 50.06 | -18.31 | 65.18 | 0.3366 | 1151.6 | 995.4 | |
| 2.52 | -60.00 | 1.33 | -60.00 | 15.83 | 49.87 | -18.49 | 61.67 | 0.3482 | 916.2 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 14.20 | 49.95 | -18.42 | 65.99 | 0.3367 | 754.0 | 661.1 | |
| 11.45 | -60.00 | 6.05 | -60.00 | 15.58 | 49.76 | -18.60 | 62.46 | 0.3481 | 1150.5 | 999999 | |
| 5.68 | -60.00 | 2.99 | -60.00 | 14.75 | 49.71 | -18.66 | 64.75 | 0.3436 | 1183.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 15.44 | 49.21 | -19.16 | 63.43 | 0.3552 | 603.0 | 428.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 14.85 | 49.20 | -19.17 | 64.98 | 0.3518 | 642.0 | 573.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 15.22 | 49.06 | -19.30 | 64.16 | 0.3559 | 582.0 | 472.8 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 14.08 | 49.13 | -19.23 | 67.12 | 0.3483 | 820.0 | 693.5 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 14.42 | 49.07 | -19.30 | 66.27 | 0.3511 | 876.0 | 731.6 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 14.38 | 48.81 | -19.56 | 66.62 | 0.3548 | 759.0 | 518.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.80 | 48.47 | -19.90 | 60.81 | 0.3748 | 667.0 | 516.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.51 | 48.65 | -19.72 | 69.09 | 0.3527 | 704.0 | 537.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 15.74 | 48.14 | -20.23 | 63.76 | 0.3726 | 636.0 | 521.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 18.23 | 47.76 | -20.61 | 58.24 | 0.3949 | 757.0 | 669.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 14.63 | 48.15 | -20.22 | 66.56 | 0.3660 | 559.0 | 479.6 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 17.43 | 46.39 | -21.98 | 61.45 | 0.4083 | 793.0 | 573.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
