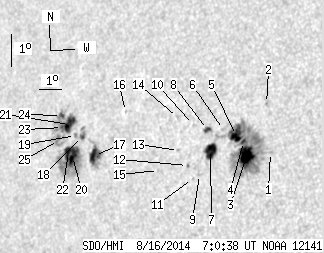

SDO HMI 2014-08-16 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.74 | 318.40 | 65.98 | 222.30 | 16.12 | 23.57 | -44.80 | 73.74 | 0.7060 | 3.2 | -96.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.94 | 16.31 | 28.47 | -39.90 | 72.58 | 0.6475 | -299.0 | -277.8 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 17.80 | 27.92 | -40.45 | 70.47 | 0.6577 | 557.0 | 473.2 | |
| 19.65 | 164.08 | 12.91 | 108.24 | 16.15 | 27.51 | -40.86 | 73.05 | 0.6592 | -1109.4 | -417.0 | |
| 1.98 | -3.00 | 1.31 | -3.00 | 16.57 | 27.28 | -41.09 | 72.47 | 0.6630 | -911.6 | 999999 | |
| 9.65 | -3.00 | 6.40 | -3.00 | 16.73 | 26.94 | -41.43 | 72.30 | 0.6675 | -827.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.97 | 16.87 | 26.34 | -42.02 | 72.22 | 0.6750 | 227.0 | 214.1 | |
| 12.89 | -3.00 | 8.66 | -3.00 | 16.16 | 25.98 | -42.39 | 73.34 | 0.6782 | -804.2 | 999999 | |
| 2.43 | 3.79 | 1.65 | 2.56 | 16.82 | 25.67 | -42.70 | 72.44 | 0.6831 | -628.3 | -366.2 | |
| 0.00 | 1.89 | 0.00 | 1.28 | 15.43 | 25.69 | -42.67 | 74.47 | 0.6804 | -619.0 | -549.8 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 16.93 | 25.03 | -43.34 | 72.42 | 0.6910 | -490.0 | -312.5 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 15.28 | 25.43 | -42.94 | 74.73 | 0.6835 | -621.0 | -589.8 | |
| 0.00 | 1.35 | 0.00 | 0.92 | 15.66 | 25.12 | -43.25 | 74.23 | 0.6879 | -357.0 | -275.1 | |
| 0.00 | 1.35 | 0.00 | 0.93 | 16.09 | 24.61 | -43.76 | 73.70 | 0.6947 | -521.0 | -365.1 | |
| 0.00 | 1.26 | 0.00 | 0.87 | 17.09 | 24.28 | -44.09 | 72.33 | 0.7003 | -567.0 | -528.5 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 15.41 | 23.91 | -44.46 | 74.78 | 0.7020 | 541.0 | 497.2 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 17.09 | 21.92 | -46.45 | 72.75 | 0.7277 | 611.0 | 489.4 | |
| 10.64 | 21.46 | 7.77 | 15.66 | 15.64 | 20.93 | -47.43 | 74.87 | 0.7370 | 912.0 | 645.6 | |
| 1.89 | 7.21 | 1.40 | 5.35 | 16.17 | 20.20 | -48.17 | 74.25 | 0.7458 | 836.2 | 681.4 | |
| 0.00 | 1.80 | 0.00 | 1.34 | 16.17 | 19.86 | -48.50 | 74.29 | 0.7496 | 760.0 | 684.2 | |
| 14.51 | 58.87 | 10.79 | 43.84 | 15.52 | 19.93 | -48.44 | 75.14 | 0.7482 | 956.6 | 215.7 | |
| 10.64 | 36.24 | 7.99 | 27.39 | 16.48 | 19.47 | -48.90 | 73.92 | 0.7542 | 845.1 | 124.1 | |
| 6.49 | -20.00 | 4.85 | -20.00 | 15.63 | 19.70 | -48.66 | 75.03 | 0.7508 | 669.6 | 999999 | |
| 0.81 | -21.00 | 0.61 | -21.00 | 16.36 | 19.17 | -49.19 | 74.12 | 0.7574 | 388.4 | 999999 | |
| 2.16 | -21.00 | 1.64 | -21.00 | 16.72 | 19.00 | -49.37 | 73.67 | 0.7597 | 322.4 | 999999 | |
| 0.00 | 12.71 | 0.00 | 9.61 | 15.95 | 19.12 | -49.25 | 74.67 | 0.7576 | 494.0 | 274.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
