SDO HMI 2014-08-16 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.14 | 534.85 | 56.26 | 273.71 | 13.85 | 55.09 | -12.19 | 57.20 | 0.2429 | -102.0 | -27.8 | |
|
previous
or next observation for the same group /

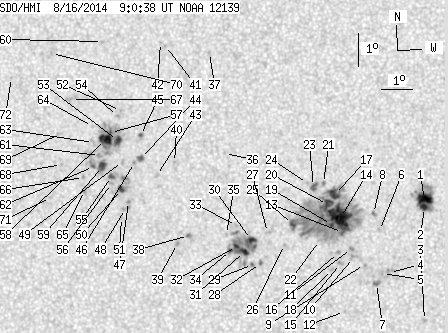

back to the solar disc SDO HMI 2014-08-16 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.33 | 40.93 | 7.21 | 20.60 | 14.01 | 60.12 | -7.15 | 43.31 | 0.1769 | -1268.3 | -516.5 | |
| 4.69 | -1.00 | 2.36 | -1.00 | 13.76 | 60.13 | -7.15 | 44.27 | 0.1739 | -1140.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 10.32 | 60.21 | -7.06 | 62.08 | 0.1374 | -904.0 | -690.8 | |
| 0.00 | 5.86 | 0.00 | 2.94 | 11.76 | 59.09 | -8.19 | 57.29 | 0.1664 | -766.0 | -770.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.73 | 58.87 | -8.40 | 58.12 | 0.1693 | -1036.0 | -896.7 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 13.04 | 58.73 | -8.54 | 52.31 | 0.1837 | -906.0 | -680.1 | |
| 0.00 | 3.79 | 0.00 | 1.90 | 11.42 | 58.69 | -8.58 | 60.22 | 0.1693 | -1003.0 | -877.4 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 13.56 | 58.52 | -8.75 | 50.75 | 0.1918 | -915.0 | -678.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.99 | 58.29 | -8.98 | 58.44 | 0.1800 | -985.0 | -753.7 | |
| 0.00 | 3.79 | 0.00 | 1.91 | 12.20 | 57.94 | -9.33 | 58.40 | 0.1869 | -797.0 | -816.6 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 12.48 | 57.87 | -9.40 | 57.34 | 0.1903 | -1219.0 | -1028.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.55 | 57.71 | -9.56 | 67.12 | 0.1780 | -812.0 | -641.9 | |
| 0.27 | 233.75 | 0.14 | 118.44 | 12.96 | 57.57 | -9.71 | 56.02 | 0.1990 | -1089.3 | -347.4 | |
| 32.99 | -13.00 | 16.70 | -13.00 | 13.42 | 57.49 | -9.79 | 54.33 | 0.2044 | -1272.9 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.32 | 12.01 | 57.54 | -9.73 | 60.30 | 0.1912 | -886.0 | -741.1 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.35 | 57.46 | -9.81 | 58.96 | 0.1951 | -1091.0 | -876.2 | |
| 6.49 | -13.00 | 3.29 | -13.00 | 14.12 | 57.27 | -10.01 | 52.16 | 0.2143 | -1037.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.82 | 57.29 | -9.98 | 61.75 | 0.1934 | -891.0 | -635.9 | |
| 1.44 | -13.00 | 0.73 | -13.00 | 13.20 | 57.21 | -10.06 | 55.94 | 0.2063 | -936.6 | 999999 | |
| 7.30 | -13.00 | 3.70 | -13.00 | 13.81 | 57.06 | -10.21 | 53.90 | 0.2141 | -1061.4 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 14.45 | 56.90 | -10.37 | 51.89 | 0.2225 | -797.0 | -566.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.70 | 56.85 | -10.42 | 58.88 | 0.2071 | -22.0 | -25.1 | |
| 1.98 | 4.33 | 1.01 | 2.20 | 14.35 | 56.59 | -10.68 | 53.04 | 0.2258 | -948.9 | -845.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 14.44 | 56.39 | -10.88 | 53.20 | 0.2293 | -655.0 | -467.7 | |
| 2.34 | -13.00 | 1.19 | -13.00 | 13.17 | 55.97 | -11.30 | 58.91 | 0.2238 | 968.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 12.56 | 55.75 | -11.53 | 61.83 | 0.2222 | 906.0 | 714.4 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 12.91 | 55.19 | -12.08 | 61.50 | 0.2332 | 715.0 | 599.4 | |
| 0.45 | 2.25 | 0.23 | 1.15 | 11.96 | 55.01 | -12.26 | 65.57 | 0.2292 | 1031.4 | 834.5 | |
| 0.45 | 1.62 | 0.23 | 0.83 | 11.92 | 54.76 | -12.51 | 66.12 | 0.2329 | 927.4 | 768.0 | |
| 3.43 | 59.05 | 1.75 | 30.14 | 12.68 | 54.69 | -12.58 | 63.25 | 0.2390 | 1045.7 | -51.8 | |
| 3.34 | -30.00 | 1.70 | -30.00 | 12.31 | 54.49 | -12.79 | 65.02 | 0.2396 | -1163.1 | 999999 | |
| 1.89 | -30.00 | 0.97 | -30.00 | 12.46 | 54.22 | -13.05 | 64.87 | 0.2446 | -949.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 13.10 | 54.19 | -13.08 | 62.55 | 0.2495 | 720.0 | 560.9 | |
| 1.17 | -30.00 | 0.60 | -30.00 | 12.33 | 54.04 | -13.23 | 65.63 | 0.2466 | -865.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 12.82 | 53.88 | -13.39 | 64.07 | 0.2521 | 686.0 | 425.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.29 | 53.67 | -13.60 | 56.05 | 0.2746 | -632.0 | -469.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 18.39 | 52.95 | -14.32 | 48.69 | 0.3138 | 677.0 | 470.7 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 12.76 | 52.67 | -14.60 | 66.04 | 0.2703 | 1020.0 | 927.2 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 12.50 | 52.33 | -14.94 | 67.35 | 0.2740 | 1079.0 | 874.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 14.97 | 52.07 | -15.20 | 59.71 | 0.2946 | 977.0 | 772.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 18.57 | 51.48 | -15.79 | 50.86 | 0.3341 | 912.0 | 704.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 18.66 | 51.30 | -15.97 | 50.93 | 0.3371 | 768.0 | 653.0 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 14.56 | 51.52 | -15.76 | 61.77 | 0.2996 | 803.0 | 664.3 | |
| 1.71 | 3.79 | 0.89 | 1.97 | 15.06 | 50.96 | -16.32 | 61.04 | 0.3114 | 1085.1 | 879.2 | |
| 0.72 | 1.71 | 0.38 | 0.89 | 15.77 | 50.90 | -16.37 | 59.11 | 0.3175 | 1011.5 | 843.6 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 14.94 | 50.77 | -16.50 | 61.67 | 0.3132 | 1092.0 | 879.7 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 13.74 | 50.66 | -16.61 | 65.37 | 0.3068 | 936.0 | 811.9 | |
| 0.00 | 3.16 | 0.00 | 1.64 | 13.52 | 50.58 | -16.69 | 66.12 | 0.3067 | 740.0 | 775.0 | |
| 0.00 | 2.25 | 0.00 | 1.18 | 14.95 | 50.37 | -16.90 | 62.13 | 0.3191 | 902.0 | 715.4 | |
| 2.61 | 19.47 | 1.36 | 10.16 | 14.10 | 50.41 | -16.86 | 64.59 | 0.3129 | 1190.4 | 879.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.24 | 50.47 | -16.80 | 67.10 | 0.3068 | 824.0 | 681.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.52 | 50.17 | -17.10 | 58.08 | 0.3335 | 832.0 | 658.7 | |
| 4.69 | 57.87 | 2.46 | 30.36 | 15.59 | 50.16 | -17.12 | 60.61 | 0.3268 | 1186.8 | 615.3 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 16.33 | 50.09 | -17.18 | 58.70 | 0.3332 | 816.0 | 743.0 | |
| 1.62 | -50.00 | 0.85 | -50.00 | 14.48 | 50.05 | -17.22 | 63.88 | 0.3207 | 1131.8 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 14.27 | 50.07 | -17.21 | 64.48 | 0.3191 | 833.0 | 739.0 | |
| 0.72 | -53.00 | 0.38 | -53.00 | 15.83 | 49.90 | -17.37 | 60.29 | 0.3321 | 999.8 | 999999 | |
| 10.01 | -53.00 | 5.25 | -53.00 | 15.61 | 49.76 | -17.51 | 61.07 | 0.3326 | 1167.3 | 999999 | |
| 4.60 | 9.74 | 2.41 | 5.10 | 14.78 | 49.73 | -17.54 | 63.41 | 0.3273 | 1221.5 | 839.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 18.63 | 49.36 | -17.91 | 53.94 | 0.3620 | 702.0 | 545.2 | |
| 0.00 | 2.70 | 0.00 | 1.42 | 15.11 | 49.60 | -17.67 | 62.63 | 0.3314 | 1078.0 | 921.2 | |
| 0.90 | 9.74 | 0.47 | 5.12 | 14.77 | 49.43 | -17.84 | 63.78 | 0.3316 | 937.5 | 721.8 | |
| 0.00 | 2.97 | 0.00 | 1.56 | 15.50 | 49.37 | -17.90 | 61.83 | 0.3374 | 603.0 | 454.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.00 | 49.29 | -17.98 | 60.61 | 0.3420 | 436.0 | 264.1 | |
| 0.00 | 3.52 | 0.00 | 1.84 | 14.03 | 49.20 | -18.07 | 66.13 | 0.3306 | 751.0 | 649.9 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 14.42 | 49.13 | -18.14 | 65.08 | 0.3339 | 961.0 | 706.2 | |
| 0.00 | 5.14 | 0.00 | 2.73 | 16.80 | 48.51 | -18.76 | 59.49 | 0.3589 | 591.0 | 521.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 14.79 | 48.37 | -18.90 | 64.86 | 0.3474 | 657.0 | 577.0 | |
| 0.00 | 2.61 | 0.00 | 1.39 | 15.71 | 48.19 | -19.08 | 62.64 | 0.3559 | 462.0 | 489.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 18.20 | 47.69 | -19.58 | 57.12 | 0.3808 | 778.0 | 666.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 13.77 | 48.10 | -19.18 | 67.91 | 0.3458 | 741.0 | 628.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 17.40 | 46.42 | -20.85 | 60.38 | 0.3924 | 721.0 | 611.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
