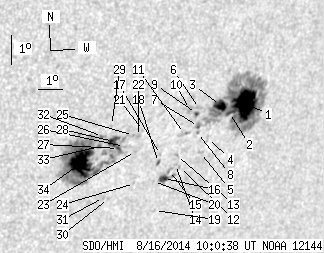

SDO HMI 2014-08-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.38 | 439.84 | 72.87 | 310.36 | -17.81 | 105.35 | 38.62 | 236.58 | 0.7136 | 182.9 | 37.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.28 | 214.44 | 30.19 | 156.23 | -17.13 | 108.14 | 41.42 | 239.26 | 0.7379 | 1093.6 | 306.7 | |
| 0.27 | -1.00 | 0.20 | -1.00 | -17.37 | 107.53 | 40.81 | 238.60 | 0.7331 | 504.7 | 999999 | |
| 8.74 | -1.00 | 6.29 | -1.00 | -17.11 | 107.08 | 40.36 | 238.65 | 0.7270 | 1064.7 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.95 | -18.18 | 106.83 | 40.11 | 237.19 | 0.7305 | -329.0 | -270.3 | |
| 0.00 | 2.16 | 0.00 | 1.57 | -18.63 | 106.66 | 39.94 | 236.54 | 0.7314 | 324.0 | 109.8 | |
| 0.00 | 3.25 | 0.00 | 2.30 | -17.14 | 106.22 | 39.50 | 238.08 | 0.7184 | 537.0 | 477.3 | |
| 0.54 | -1.00 | 0.39 | -1.00 | -17.74 | 106.33 | 39.61 | 237.41 | 0.7230 | 477.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -17.94 | 106.35 | 39.62 | 237.18 | 0.7243 | 580.0 | 528.5 | |
| 1.17 | 1.98 | 0.83 | 1.41 | -17.30 | 106.14 | 39.41 | 237.83 | 0.7184 | 614.5 | 510.8 | |
| 0.00 | 3.43 | 0.00 | 2.42 | -17.14 | 105.81 | 39.08 | 237.82 | 0.7141 | 394.0 | 416.1 | |
| 0.00 | 3.52 | 0.00 | 2.50 | -17.93 | 105.81 | 39.08 | 236.84 | 0.7188 | 317.0 | 289.8 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -19.07 | 105.91 | 39.19 | 235.53 | 0.7266 | -394.0 | -246.5 | |
| 0.00 | 1.62 | 0.00 | 1.16 | -18.65 | 105.67 | 38.95 | 235.88 | 0.7217 | 745.0 | 621.2 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -18.96 | 105.71 | 38.99 | 235.54 | 0.7239 | 464.0 | 398.2 | |
| 0.00 | 2.52 | 0.00 | 1.80 | -19.14 | 105.51 | 38.79 | 235.19 | 0.7231 | 690.0 | 540.2 | |
| 4.15 | 7.93 | 2.96 | 5.68 | -19.40 | 105.34 | 38.61 | 234.77 | 0.7230 | 760.5 | 390.8 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -18.57 | 104.99 | 38.26 | 235.53 | 0.7144 | 581.0 | 483.3 | |
| 0.72 | 2.16 | 0.51 | 1.53 | -18.83 | 104.98 | 38.25 | 235.20 | 0.7159 | 497.9 | 370.4 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -20.47 | 105.28 | 38.55 | 233.46 | 0.7290 | 453.0 | 443.2 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -19.47 | 104.94 | 38.22 | 234.42 | 0.7195 | 669.0 | 564.3 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -17.70 | 104.08 | 37.35 | 235.98 | 0.6997 | -473.0 | -389.3 | |
| 0.00 | 1.80 | 0.00 | 1.25 | -17.89 | 103.92 | 37.20 | 235.64 | 0.6993 | 219.0 | 162.0 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -18.38 | 103.92 | 37.20 | 235.03 | 0.7025 | 325.0 | 318.4 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -19.47 | 104.17 | 37.45 | 233.88 | 0.7120 | 550.0 | 420.8 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -17.84 | 103.71 | 36.99 | 235.55 | 0.6968 | -412.0 | -337.0 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -18.18 | 103.43 | 36.71 | 234.93 | 0.6962 | 350.0 | 307.3 | |
| 1.35 | 172.98 | 0.93 | 117.07 | -18.23 | 103.21 | 36.48 | 234.71 | 0.6942 | -483.5 | -395.3 | |
| 6.13 | -27.00 | 4.18 | -27.00 | -17.98 | 102.95 | 36.22 | 234.83 | 0.6899 | -789.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -17.43 | 102.74 | 36.02 | 235.37 | 0.6841 | -593.0 | -509.5 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -19.91 | 103.23 | 36.51 | 232.69 | 0.7056 | 608.0 | 459.1 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -19.86 | 103.02 | 36.30 | 232.60 | 0.7032 | 428.0 | 414.4 | |
| 0.00 | 2.61 | 0.00 | 1.77 | -17.78 | 102.46 | 35.74 | 234.73 | 0.6835 | -796.0 | -689.2 | |
| 0.00 | 2.07 | 0.00 | 1.41 | -18.11 | 102.42 | 35.70 | 234.29 | 0.6853 | -761.0 | -618.2 | |
| 39.03 | -27.00 | 26.39 | -27.00 | -18.60 | 101.83 | 35.11 | 233.24 | 0.6826 | -1009.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
