SDO HMI 2014-08-16 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.10 | 497.45 | 52.92 | 253.48 | 13.86 | 55.18 | -10.99 | 54.21 | 0.2268 | -41.2 | -58.1 | |
|
previous
or next observation for the same group /

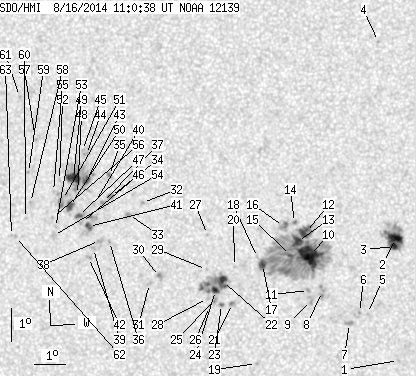

back to the solar disc SDO HMI 2014-08-16 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.30 | 60.33 | -5.85 | 57.64 | 0.1192 | -877.0 | -694.6 | |
| 12.26 | 41.64 | 6.16 | 20.92 | 14.02 | 60.16 | -6.02 | 38.45 | 0.1643 | -1287.7 | -555.5 | |
| 4.60 | -2.00 | 2.31 | -2.00 | 13.77 | 60.13 | -6.04 | 39.54 | 0.1614 | -1152.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.09 | 59.41 | -6.76 | 25.44 | 0.2586 | -836.0 | -556.5 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 11.72 | 59.33 | -6.84 | 52.83 | 0.1470 | -848.0 | -581.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.74 | 59.08 | -7.09 | 53.64 | 0.1507 | -1112.0 | -928.2 | |
| 0.00 | 4.15 | 0.00 | 2.08 | 11.41 | 58.78 | -7.39 | 56.62 | 0.1517 | -952.0 | -822.2 | |
| 0.00 | 5.95 | 0.00 | 2.99 | 12.37 | 57.91 | -8.27 | 54.52 | 0.1732 | -1071.0 | -847.1 | |
| 0.00 | 3.52 | 0.00 | 1.77 | 12.09 | 57.57 | -8.60 | 56.90 | 0.1754 | -951.0 | -777.0 | |
| 30.37 | 235.60 | 15.33 | 119.01 | 13.46 | 57.46 | -8.71 | 51.02 | 0.1903 | -1256.6 | -351.6 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 12.39 | 57.47 | -8.71 | 55.76 | 0.1796 | -1080.0 | -819.1 | |
| 8.74 | -10.00 | 4.42 | -10.00 | 14.16 | 57.31 | -8.86 | 48.68 | 0.1998 | -990.4 | 999999 | |
| 7.66 | -10.00 | 3.87 | -10.00 | 13.88 | 57.07 | -9.11 | 50.51 | 0.2000 | -1020.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 14.46 | 56.95 | -9.22 | 48.64 | 0.2077 | -810.0 | -645.8 | |
| 1.62 | -10.00 | 0.82 | -10.00 | 13.45 | 56.86 | -9.31 | 52.86 | 0.1983 | -703.2 | 999999 | |
| 0.00 | 7.12 | 0.00 | 3.61 | 14.33 | 56.61 | -9.57 | 50.12 | 0.2108 | -888.0 | -754.6 | |
| 4.24 | -10.00 | 2.14 | -10.00 | 13.16 | 55.99 | -10.19 | 56.39 | 0.2077 | 939.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.37 | 55.82 | -10.35 | 55.95 | 0.2120 | 723.0 | 561.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.14 | 55.91 | -10.27 | 70.54 | 0.1869 | -782.0 | -587.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.08 | 55.10 | -11.07 | 58.77 | 0.2197 | 743.0 | 508.5 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 11.95 | 55.09 | -11.09 | 63.50 | 0.2111 | 990.0 | 851.5 | |
| 8.11 | 38.94 | 4.12 | 19.79 | 12.62 | 54.74 | -11.43 | 61.40 | 0.2213 | 778.5 | -352.4 | |
| 0.54 | 1.62 | 0.27 | 0.82 | 11.91 | 54.74 | -11.43 | 64.32 | 0.2162 | 904.8 | 733.7 | |
| 3.24 | -22.00 | 1.65 | -22.00 | 12.34 | 54.53 | -11.64 | 62.94 | 0.2223 | -1082.1 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.42 | 12.06 | 54.51 | -11.66 | 64.11 | 0.2207 | 90.0 | 238.0 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 11.84 | 54.36 | -11.81 | 65.28 | 0.2215 | 469.0 | 317.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 14.04 | 54.20 | -11.98 | 57.07 | 0.2409 | -760.0 | -586.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 12.09 | 54.29 | -11.88 | 64.40 | 0.2243 | -218.0 | -177.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.97 | 54.22 | -11.96 | 61.02 | 0.2318 | 804.0 | 548.9 | |
| 0.00 | 3.61 | 0.00 | 1.85 | 12.72 | 52.73 | -13.44 | 64.50 | 0.2524 | 1102.0 | 864.2 | |
| 0.00 | 2.52 | 0.00 | 1.29 | 12.50 | 52.42 | -13.75 | 65.77 | 0.2556 | 936.0 | 746.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 14.97 | 52.05 | -14.12 | 57.99 | 0.2792 | 976.0 | 791.4 | |
| 0.00 | 2.43 | 0.00 | 1.26 | 14.59 | 51.62 | -14.55 | 59.89 | 0.2823 | 992.0 | 845.8 | |
| 0.00 | 3.24 | 0.00 | 1.68 | 15.12 | 51.00 | -15.17 | 59.21 | 0.2954 | 1097.0 | 921.8 | |
| 0.00 | 2.52 | 0.00 | 1.31 | 15.77 | 50.92 | -15.25 | 57.44 | 0.3018 | 1046.0 | 825.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 13.75 | 51.06 | -15.11 | 63.42 | 0.2844 | 1006.0 | 860.1 | |
| 0.00 | 2.07 | 0.00 | 1.08 | 14.93 | 50.75 | -15.42 | 60.16 | 0.2975 | 1094.0 | 906.6 | |
| 0.00 | 3.33 | 0.00 | 1.73 | 13.77 | 50.74 | -15.44 | 63.79 | 0.2894 | 853.0 | 776.2 | |
| 0.00 | 2.16 | 0.00 | 1.12 | 13.52 | 50.56 | -15.62 | 64.82 | 0.2905 | 765.0 | 679.4 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 14.86 | 50.46 | -15.71 | 60.79 | 0.3012 | 802.0 | 660.1 | |
| 2.70 | 18.57 | 1.40 | 9.64 | 14.19 | 50.35 | -15.82 | 63.00 | 0.2980 | 1218.4 | 841.8 | |
| 0.00 | 2.07 | 0.00 | 1.07 | 13.24 | 50.41 | -15.76 | 65.90 | 0.2909 | 766.0 | 739.0 | |
| 3.61 | 50.20 | 1.88 | 26.20 | 15.59 | 50.18 | -15.99 | 59.06 | 0.3108 | 1143.1 | 550.6 | |
| 0.00 | 2.07 | 0.00 | 1.08 | 16.39 | 50.11 | -16.06 | 56.92 | 0.3181 | 913.0 | 805.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 16.51 | 49.97 | -16.20 | 56.81 | 0.3210 | 804.0 | 629.2 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 14.30 | 50.11 | -16.06 | 62.96 | 0.3023 | 854.0 | 753.2 | |
| 1.89 | -41.00 | 0.98 | -41.00 | 14.51 | 50.00 | -16.17 | 62.47 | 0.3054 | 1038.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.15 | 49.92 | -16.25 | 60.69 | 0.3112 | 850.0 | 796.3 | |
| 10.46 | -43.00 | 5.46 | -43.00 | 15.64 | 49.75 | -16.42 | 59.54 | 0.3173 | 1100.7 | 999999 | |
| 4.06 | 7.84 | 2.11 | 4.09 | 14.78 | 49.69 | -16.49 | 62.10 | 0.3119 | 1165.9 | 886.0 | |
| 0.00 | 10.46 | 0.00 | 5.46 | 14.99 | 49.44 | -16.73 | 61.82 | 0.3169 | 802.0 | 818.9 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 15.57 | 49.29 | -16.88 | 60.37 | 0.3232 | 562.0 | 398.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 14.12 | 49.28 | -16.90 | 64.54 | 0.3135 | 717.0 | 678.4 | |
| 0.00 | 4.33 | 0.00 | 2.26 | 13.87 | 49.23 | -16.94 | 65.33 | 0.3127 | 676.0 | 548.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.22 | 49.12 | -17.05 | 61.55 | 0.3231 | 598.0 | 530.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 14.42 | 49.16 | -17.02 | 63.80 | 0.3173 | 879.0 | 583.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.80 | 48.39 | -17.78 | 58.27 | 0.3453 | 748.0 | 576.8 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 14.86 | 48.40 | -17.78 | 63.45 | 0.3313 | 585.0 | 535.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 15.78 | 48.25 | -17.92 | 61.12 | 0.3397 | 614.0 | 584.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 14.36 | 48.27 | -17.90 | 64.98 | 0.3300 | 626.0 | 472.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 18.11 | 47.72 | -18.45 | 55.91 | 0.3649 | 763.0 | 545.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 13.80 | 47.99 | -18.18 | 66.87 | 0.3310 | 884.0 | 647.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 13.83 | 47.86 | -18.32 | 66.93 | 0.3332 | 692.0 | 589.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
