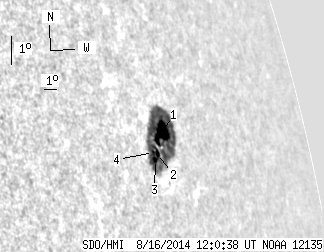

SDO HMI 2014-08-16 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.41 | 139.68 | 32.56 | 178.94 | 15.43 | 133.81 | 68.18 | 283.95 | 0.9238 | -572.3 | -149.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.83 | 139.68 | 25.60 | 178.94 | 15.56 | 134.01 | 68.38 | 284.10 | 0.9251 | -532.6 | -149.1 | |
| 1.98 | -1.00 | 2.49 | -1.00 | 14.98 | 133.27 | 67.65 | 283.46 | 0.9203 | -390.1 | 999999 | |
| 1.98 | -1.00 | 2.46 | -1.00 | 14.82 | 133.00 | 67.37 | 283.28 | 0.9186 | -884.5 | 999999 | |
| 1.62 | -1.00 | 2.01 | -1.00 | 15.04 | 132.98 | 67.35 | 283.52 | 0.9184 | -920.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
