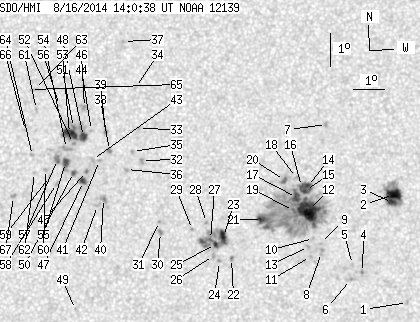

SDO HMI 2014-08-16 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.89 | 440.19 | 55.65 | 222.96 | 13.88 | 55.45 | -9.07 | 48.66 | 0.2014 | -50.3 | -81.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.90 | 10.74 | 60.62 | -3.90 | 43.34 | 0.0978 | -1032.0 | -736.0 | |
| 14.05 | 34.78 | 7.04 | 17.42 | 14.03 | 60.14 | -4.38 | 30.08 | 0.1486 | -1187.1 | -540.1 | |
| 5.05 | -2.00 | 2.53 | -2.00 | 13.78 | 60.11 | -4.41 | 31.11 | 0.1452 | -1110.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.64 | 59.21 | -5.31 | 46.26 | 0.1260 | -1022.0 | -902.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.88 | 58.90 | -5.62 | 46.52 | 0.1328 | -803.0 | -672.1 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 11.42 | 58.84 | -5.68 | 49.43 | 0.1282 | -865.0 | -729.3 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 16.16 | 57.97 | -6.55 | 33.57 | 0.1991 | -824.0 | -725.2 | |
| 0.00 | 3.15 | 0.00 | 1.58 | 12.24 | 57.92 | -6.60 | 49.09 | 0.1493 | -881.0 | -826.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 12.51 | 57.88 | -6.64 | 47.86 | 0.1529 | -812.0 | -563.5 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 12.66 | 57.66 | -6.86 | 48.05 | 0.1574 | -816.0 | -669.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.11 | 57.58 | -6.94 | 51.13 | 0.1524 | -985.0 | -793.0 | |
| 33.69 | 227.21 | 16.94 | 114.31 | 13.51 | 57.48 | -7.04 | 44.90 | 0.1696 | -1209.2 | -338.9 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 12.41 | 57.51 | -7.01 | 49.86 | 0.1566 | -1064.0 | -791.7 | |
| 4.05 | -12.00 | 2.04 | -12.00 | 14.25 | 57.43 | -7.09 | 42.14 | 0.1792 | -928.5 | 999999 | |
| 3.69 | -12.00 | 1.86 | -12.00 | 14.12 | 57.37 | -7.15 | 42.85 | 0.1784 | -1078.0 | 999999 | |
| 1.89 | -12.00 | 0.95 | -12.00 | 14.24 | 57.24 | -7.28 | 42.88 | 0.1814 | -914.0 | 999999 | |
| 6.31 | -12.00 | 3.18 | -12.00 | 13.90 | 57.09 | -7.43 | 44.78 | 0.1790 | -1018.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 14.52 | 57.07 | -7.45 | 42.48 | 0.1867 | -695.0 | -576.2 | |
| 1.44 | -12.00 | 0.73 | -12.00 | 13.51 | 57.01 | -7.51 | 46.75 | 0.1753 | -852.6 | 999999 | |
| 1.26 | 5.32 | 0.64 | 2.68 | 14.42 | 56.70 | -7.83 | 44.22 | 0.1899 | -978.1 | -733.5 | |
| 5.59 | -12.00 | 2.82 | -12.00 | 13.22 | 56.04 | -8.48 | 51.34 | 0.1847 | 701.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 12.01 | 55.11 | -9.41 | 59.51 | 0.1865 | 853.0 | 666.8 | |
| 5.86 | 37.57 | 2.96 | 18.99 | 12.68 | 54.83 | -9.69 | 57.19 | 0.1963 | 933.6 | -345.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 11.91 | 54.73 | -9.79 | 60.89 | 0.1913 | 955.0 | 716.5 | |
| 2.43 | -23.00 | 1.23 | -23.00 | 12.43 | 54.59 | -9.93 | 58.89 | 0.1976 | -1009.1 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 12.09 | 54.54 | -9.98 | 60.52 | 0.1956 | 209.0 | 254.6 | |
| 1.08 | -23.00 | 0.55 | -23.00 | 12.58 | 54.42 | -10.10 | 58.64 | 0.2013 | -969.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 13.09 | 54.28 | -10.24 | 56.81 | 0.2079 | 768.0 | 518.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 12.87 | 53.84 | -10.68 | 58.75 | 0.2122 | 486.0 | 434.7 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 12.76 | 52.83 | -11.69 | 61.33 | 0.2262 | 989.0 | 836.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.09 | 52.79 | -11.74 | 60.11 | 0.2295 | -763.0 | -557.7 | |
| 0.00 | 2.25 | 0.00 | 1.15 | 14.95 | 52.11 | -12.41 | 54.85 | 0.2550 | 917.0 | 785.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.93 | 51.96 | -12.56 | 52.05 | 0.2664 | 819.0 | 670.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.19 | 51.78 | -12.74 | 48.74 | 0.2816 | 704.0 | 477.5 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 15.22 | 51.81 | -12.71 | 54.59 | 0.2617 | 998.0 | 762.5 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 14.66 | 51.65 | -12.87 | 56.73 | 0.2590 | 1037.0 | 823.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 18.60 | 51.28 | -13.24 | 46.05 | 0.3028 | 773.0 | 617.2 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 15.23 | 51.06 | -13.46 | 55.99 | 0.2721 | 1044.0 | 918.5 | |
| 0.36 | 1.35 | 0.19 | 0.70 | 15.81 | 50.90 | -13.63 | 54.52 | 0.2796 | 864.2 | 724.3 | |
| 0.00 | 4.77 | 0.00 | 2.45 | 13.75 | 50.96 | -13.56 | 61.03 | 0.2615 | 1085.0 | 845.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 14.91 | 50.76 | -13.76 | 57.54 | 0.2736 | 1023.0 | 813.6 | |
| 0.00 | 2.70 | 0.00 | 1.39 | 13.54 | 50.78 | -13.74 | 62.08 | 0.2625 | 783.0 | 732.0 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 14.94 | 50.53 | -13.99 | 57.86 | 0.2771 | 930.0 | 724.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.83 | 50.44 | -14.08 | 55.29 | 0.2860 | 768.0 | 602.8 | |
| 0.36 | 1.53 | 0.19 | 0.79 | 14.57 | 50.36 | -14.16 | 59.33 | 0.2765 | 1145.5 | 1051.4 | |
| 0.00 | 3.87 | 0.00 | 2.01 | 16.53 | 50.16 | -14.36 | 53.76 | 0.2961 | 957.0 | 767.9 | |
| 2.61 | 4.32 | 1.35 | 2.23 | 14.26 | 50.28 | -14.24 | 60.45 | 0.2752 | 1143.2 | 928.4 | |
| 4.59 | 30.54 | 2.38 | 15.81 | 15.64 | 50.19 | -14.33 | 56.30 | 0.2877 | 1104.5 | 604.0 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 10.35 | 50.24 | -14.28 | 74.50 | 0.2529 | -644.0 | -412.8 | |
| 1.26 | 2.97 | 0.65 | 1.53 | 14.52 | 49.94 | -14.58 | 60.14 | 0.2822 | 1060.3 | 851.4 | |
| 0.81 | -48.00 | 0.42 | -48.00 | 15.90 | 49.85 | -14.67 | 56.10 | 0.2948 | 866.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 15.41 | 49.88 | -14.64 | 57.49 | 0.2902 | 1178.0 | 1012.5 | |
| 9.82 | -48.00 | 5.09 | -48.00 | 15.72 | 49.73 | -14.79 | 56.84 | 0.2948 | 1080.8 | 999999 | |
| 0.00 | 4.59 | 0.00 | 2.38 | 15.25 | 49.67 | -14.85 | 58.33 | 0.2919 | 1037.0 | 923.8 | |
| 3.69 | 8.11 | 1.91 | 4.19 | 14.82 | 49.66 | -14.86 | 59.64 | 0.2885 | 1148.5 | 814.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 16.57 | 49.34 | -15.18 | 55.06 | 0.3076 | 759.0 | 552.9 | |
| 0.00 | 4.86 | 0.00 | 2.52 | 14.91 | 49.40 | -15.12 | 59.79 | 0.2930 | 1027.0 | 886.0 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 14.17 | 49.42 | -15.10 | 62.05 | 0.2873 | 939.0 | 729.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 14.38 | 49.17 | -15.35 | 61.74 | 0.2923 | 772.0 | 580.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 14.59 | 49.03 | -15.49 | 61.30 | 0.2960 | 758.0 | 620.0 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 16.42 | 48.59 | -15.93 | 56.64 | 0.3165 | 736.0 | 618.3 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 14.49 | 48.68 | -15.84 | 62.10 | 0.3004 | 720.0 | 558.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 17.04 | 48.48 | -16.04 | 55.17 | 0.3233 | 795.0 | 594.1 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 15.01 | 48.58 | -15.95 | 60.70 | 0.3056 | 714.0 | 534.4 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 17.03 | 48.34 | -16.18 | 55.38 | 0.3251 | 614.0 | 525.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 15.77 | 48.29 | -16.23 | 58.92 | 0.3155 | 706.0 | 554.8 | |
| 0.00 | 2.70 | 0.00 | 1.41 | 13.73 | 48.05 | -16.47 | 65.21 | 0.3047 | 848.0 | 700.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
