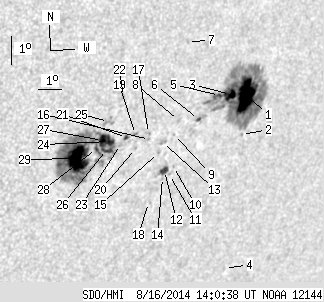

SDO HMI 2014-08-16 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.36 | 456.82 | 80.86 | 333.31 | -17.70 | 105.42 | 40.90 | 238.14 | 0.7358 | 62.9 | 13.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.40 | 220.27 | 27.72 | 167.20 | -17.03 | 108.37 | 43.85 | 240.73 | 0.7616 | 993.2 | 283.9 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -18.34 | 108.60 | 44.08 | 239.30 | 0.7701 | -94.0 | -114.3 | |
| 9.64 | -1.00 | 7.25 | -1.00 | -16.94 | 107.69 | 43.17 | 240.47 | 0.7544 | 1073.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -22.95 | 109.54 | 45.01 | 234.58 | 0.8014 | -174.0 | -226.7 | |
| 1.62 | -1.00 | 1.21 | -1.00 | -16.93 | 107.21 | 42.69 | 240.21 | 0.7496 | 981.2 | 999999 | |
| 1.08 | 4.59 | 0.80 | 3.41 | -17.67 | 106.51 | 41.99 | 238.94 | 0.7464 | 556.1 | 507.3 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -15.05 | 105.36 | 40.84 | 241.49 | 0.7210 | 407.0 | 401.3 | |
| 0.00 | 1.89 | 0.00 | 1.38 | -17.63 | 105.64 | 41.12 | 238.48 | 0.7376 | 290.0 | 271.2 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -18.09 | 105.60 | 41.08 | 237.90 | 0.7397 | 428.0 | 375.3 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -19.18 | 105.88 | 41.36 | 236.77 | 0.7484 | 267.0 | 221.4 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -19.44 | 105.79 | 41.27 | 236.41 | 0.7490 | 388.0 | 253.4 | |
| 3.78 | 7.39 | 2.80 | 5.47 | -19.28 | 105.53 | 41.01 | 236.43 | 0.7456 | 666.0 | 457.4 | |
| 0.00 | 3.60 | 0.00 | 2.63 | -18.32 | 105.16 | 40.64 | 237.35 | 0.7366 | 732.0 | 489.4 | |
| 0.00 | 1.62 | 0.00 | 1.20 | -19.52 | 105.51 | 40.99 | 236.15 | 0.7468 | 323.0 | 261.3 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -18.64 | 105.08 | 40.56 | 236.92 | 0.7377 | 507.0 | 388.6 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -18.17 | 104.57 | 40.05 | 237.17 | 0.7299 | 528.0 | 454.8 | |
| 0.00 | 1.98 | 0.00 | 1.43 | -17.96 | 104.47 | 39.95 | 237.35 | 0.7277 | 560.0 | 433.5 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -20.33 | 105.17 | 40.65 | 234.98 | 0.7481 | 323.0 | 381.2 | |
| 0.00 | 1.35 | 0.00 | 0.96 | -17.95 | 103.93 | 39.41 | 237.02 | 0.7222 | -413.0 | -234.4 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -18.43 | 104.06 | 39.54 | 236.53 | 0.7263 | 414.0 | 393.9 | |
| 1.35 | 2.97 | 0.96 | 2.11 | -18.03 | 103.57 | 39.05 | 236.71 | 0.7190 | -392.2 | -230.1 | |
| 0.00 | 1.98 | 0.00 | 1.38 | -16.64 | 103.10 | 38.58 | 238.12 | 0.7060 | -79.0 | -117.5 | |
| 0.00 | 1.89 | 0.00 | 1.34 | -18.24 | 103.39 | 38.86 | 236.32 | 0.7184 | 280.0 | 285.3 | |
| 5.50 | 192.16 | 3.87 | 133.84 | -18.11 | 102.90 | 38.38 | 236.17 | 0.7127 | -572.2 | -402.9 | |
| 0.00 | 6.76 | 0.00 | 4.71 | -17.43 | 102.69 | 38.16 | 236.86 | 0.7064 | -577.0 | -503.5 | |
| 5.50 | -24.00 | 3.88 | -24.00 | -18.37 | 102.84 | 38.32 | 235.81 | 0.7137 | -509.0 | 999999 | |
| 8.11 | -24.00 | 5.68 | -24.00 | -18.05 | 102.60 | 38.08 | 236.04 | 0.7093 | -859.5 | 999999 | |
| 1.08 | -24.00 | 0.76 | -24.00 | -18.30 | 102.42 | 37.90 | 235.61 | 0.7090 | -791.1 | 999999 | |
| 37.30 | -24.00 | 25.93 | -24.00 | -18.58 | 101.72 | 37.20 | 234.79 | 0.7038 | -1028.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
