SDO HMI 2014-08-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.94 | 460.85 | 52.52 | 233.12 | 13.93 | 55.49 | -8.48 | 46.47 | 0.1945 | -101.9 | -79.8 | |
|
previous
or next observation for the same group /

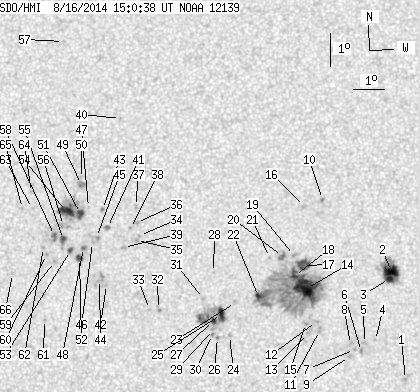

back to the solar disc SDO HMI 2014-08-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.72 | 10.74 | 60.63 | -3.34 | 38.94 | 0.0915 | -1003.0 | -802.6 | |
| 14.32 | 36.39 | 7.17 | 18.22 | 14.04 | 60.15 | -3.82 | 26.77 | 0.1440 | -1177.3 | -517.0 | |
| 4.77 | -2.00 | 2.39 | -2.00 | 13.82 | 60.09 | -3.88 | 27.83 | 0.1412 | -1149.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.93 | 59.68 | -4.28 | 38.62 | 0.1176 | -853.0 | -674.7 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 11.83 | 59.34 | -4.62 | 41.27 | 0.1202 | -782.0 | -725.5 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 11.59 | 59.25 | -4.71 | 43.22 | 0.1181 | -1027.0 | -890.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.65 | 59.04 | -4.93 | 44.15 | 0.1215 | -1040.0 | -811.3 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 11.80 | 58.91 | -5.06 | 44.00 | 0.1248 | -827.0 | -757.6 | |
| 0.00 | 2.25 | 0.00 | 1.12 | 11.43 | 58.88 | -5.08 | 46.29 | 0.1207 | -876.0 | -655.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.23 | 57.93 | -6.04 | 31.30 | 0.1954 | -842.0 | -698.1 | |
| 0.00 | 2.97 | 0.00 | 1.49 | 12.22 | 57.93 | -6.03 | 46.70 | 0.1418 | -894.0 | -802.3 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 12.49 | 57.83 | -6.13 | 45.76 | 0.1463 | -992.0 | -735.9 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 12.12 | 57.59 | -6.38 | 48.74 | 0.1451 | -930.0 | -729.2 | |
| 35.40 | 223.48 | 17.77 | 112.30 | 13.49 | 57.50 | -6.47 | 42.63 | 0.1626 | -1206.5 | -336.1 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 12.42 | 57.49 | -6.48 | 47.61 | 0.1498 | -945.0 | -789.5 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 16.00 | 57.36 | -6.61 | 34.24 | 0.1975 | -775.0 | -678.3 | |
| 9.01 | -14.00 | 4.53 | -14.00 | 14.19 | 57.38 | -6.58 | 40.26 | 0.1728 | -998.2 | 999999 | |
| 5.95 | -14.00 | 2.99 | -14.00 | 13.88 | 57.11 | -6.86 | 42.63 | 0.1720 | -1016.5 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 14.50 | 57.09 | -6.88 | 40.33 | 0.1799 | -787.0 | -585.6 | |
| 0.00 | 5.49 | 0.00 | 2.77 | 14.46 | 56.71 | -7.26 | 41.95 | 0.1838 | -1048.0 | -790.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 14.43 | 56.30 | -7.66 | 43.63 | 0.1881 | -721.0 | -543.8 | |
| 2.61 | -14.00 | 1.32 | -14.00 | 13.23 | 56.00 | -7.97 | 49.61 | 0.1781 | 916.4 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 13.03 | 55.28 | -8.69 | 52.81 | 0.1856 | 588.0 | 419.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.02 | 55.12 | -8.85 | 57.93 | 0.1783 | 927.0 | 594.9 | |
| 6.76 | 37.83 | 3.41 | 19.09 | 12.66 | 54.85 | -9.12 | 55.73 | 0.1880 | 885.6 | -439.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.96 | 54.75 | -9.22 | 59.27 | 0.1832 | 914.0 | 777.6 | |
| 2.16 | -25.00 | 1.09 | -25.00 | 12.47 | 54.60 | -9.36 | 57.25 | 0.1898 | -1101.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.94 | 54.55 | -9.42 | 51.22 | 0.2047 | -769.0 | -593.2 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 12.20 | 54.61 | -9.35 | 58.48 | 0.1872 | -131.0 | -128.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.05 | 54.59 | -9.38 | 59.26 | 0.1863 | 776.0 | 616.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 13.14 | 54.26 | -9.70 | 55.26 | 0.2007 | 828.0 | 564.5 | |
| 0.00 | 2.70 | 0.00 | 1.37 | 12.78 | 52.85 | -11.11 | 60.11 | 0.2178 | 865.0 | 753.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 12.77 | 52.57 | -11.40 | 60.72 | 0.2220 | 856.0 | 626.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.02 | 52.14 | -11.83 | 53.36 | 0.2479 | 824.0 | 679.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 14.87 | 52.05 | -11.92 | 54.08 | 0.2476 | 958.0 | 762.0 | |
| 0.00 | 2.79 | 0.00 | 1.43 | 15.42 | 52.02 | -11.95 | 52.32 | 0.2533 | 943.0 | 677.8 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 15.91 | 51.96 | -12.01 | 50.90 | 0.2590 | 716.0 | 572.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 15.23 | 51.84 | -12.13 | 53.33 | 0.2539 | 956.0 | 790.3 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 14.65 | 51.64 | -12.32 | 55.69 | 0.2511 | 1002.0 | 729.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.62 | 51.29 | -12.68 | 44.83 | 0.2964 | 808.0 | 616.5 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 15.25 | 51.09 | -12.87 | 54.82 | 0.2642 | 1087.0 | 890.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 13.50 | 51.16 | -12.81 | 60.62 | 0.2484 | 844.0 | 697.2 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 15.79 | 50.90 | -13.07 | 53.49 | 0.2719 | 970.0 | 799.0 | |
| 0.00 | 6.49 | 0.00 | 3.32 | 13.65 | 50.93 | -13.04 | 60.51 | 0.2530 | 508.0 | 783.7 | |
| 0.00 | 2.79 | 0.00 | 1.43 | 14.93 | 50.76 | -13.21 | 56.48 | 0.2660 | 1014.0 | 898.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 14.77 | 50.64 | -13.33 | 57.21 | 0.2663 | 893.0 | 813.7 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 15.85 | 50.44 | -13.53 | 54.23 | 0.2786 | 726.0 | 538.9 | |
| 0.54 | 2.25 | 0.28 | 1.16 | 14.61 | 50.36 | -13.61 | 58.24 | 0.2690 | 1152.2 | 987.1 | |
| 0.00 | 4.77 | 0.00 | 2.47 | 16.55 | 50.17 | -13.80 | 52.69 | 0.2888 | 986.0 | 874.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 16.73 | 50.15 | -13.82 | 52.18 | 0.2908 | 487.0 | 470.5 | |
| 4.23 | 41.17 | 2.18 | 21.27 | 15.65 | 50.19 | -13.77 | 55.26 | 0.2802 | 1124.5 | 636.1 | |
| 2.79 | 4.32 | 1.44 | 2.22 | 14.27 | 50.25 | -13.72 | 59.54 | 0.2678 | 1149.6 | 918.1 | |
| 1.62 | 3.06 | 0.83 | 1.58 | 14.51 | 49.95 | -14.02 | 59.28 | 0.2741 | 1016.3 | 842.2 | |
| 10.00 | -51.00 | 5.17 | -51.00 | 15.70 | 49.74 | -14.23 | 55.93 | 0.2870 | 1085.2 | 999999 | |
| 2.34 | 6.58 | 1.21 | 3.39 | 14.84 | 49.70 | -14.27 | 58.64 | 0.2803 | 1213.2 | 874.0 | |
| 0.00 | 5.86 | 0.00 | 3.02 | 15.27 | 49.67 | -14.30 | 57.36 | 0.2842 | 948.0 | 835.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 20.96 | 49.19 | -14.78 | 43.60 | 0.3468 | 706.0 | 566.1 | |
| 1.44 | 5.67 | 0.74 | 2.93 | 14.96 | 49.40 | -14.57 | 58.78 | 0.2855 | 1052.3 | 784.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 14.16 | 49.45 | -14.52 | 61.21 | 0.2786 | 940.0 | 822.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 14.37 | 49.18 | -14.79 | 60.97 | 0.2841 | 781.0 | 571.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.38 | 49.24 | -14.73 | 67.51 | 0.2700 | 702.0 | 557.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 14.58 | 49.07 | -14.90 | 60.47 | 0.2873 | 848.0 | 617.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.77 | 48.62 | -15.35 | 57.60 | 0.3030 | 867.0 | 729.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 16.26 | 48.55 | -15.42 | 56.31 | 0.3081 | 645.0 | 522.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 15.76 | 48.30 | -15.67 | 58.13 | 0.3075 | 688.0 | 563.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 13.76 | 48.12 | -15.85 | 64.38 | 0.2955 | 869.0 | 733.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
