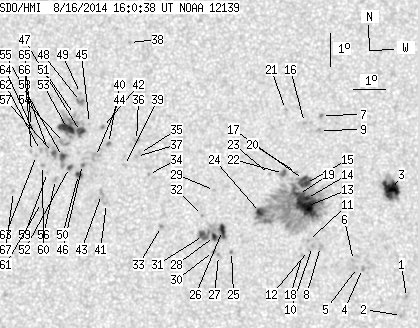

SDO HMI 2014-08-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.80 | 449.97 | 52.93 | 227.44 | 13.99 | 55.30 | -8.11 | 44.70 | 0.1909 | -115.2 | -66.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.72 | 60.63 | -2.78 | 34.16 | 0.0853 | -964.0 | -875.5 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 10.17 | 60.48 | -2.93 | 39.66 | 0.0792 | -870.0 | -759.4 | |
| 18.55 | 33.14 | 9.28 | 16.58 | 14.01 | 60.13 | -3.28 | 23.55 | 0.1396 | -1205.9 | -570.1 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 11.59 | 59.26 | -4.15 | 39.64 | 0.1117 | -1006.0 | -863.8 | |
| 0.00 | 0.45 | 0.00 | 0.22 | 11.62 | 59.11 | -4.31 | 40.50 | 0.1138 | -943.0 | -758.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.83 | 58.98 | -4.44 | 40.11 | 0.1180 | -951.0 | -778.4 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 16.26 | 57.88 | -5.53 | 29.05 | 0.1915 | -887.0 | -772.0 | |
| 0.00 | 3.42 | 0.00 | 1.71 | 12.25 | 57.94 | -5.47 | 43.76 | 0.1353 | -953.0 | -793.0 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 15.80 | 57.83 | -5.58 | 30.53 | 0.1851 | -992.0 | -772.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.25 | 57.69 | -5.72 | 45.03 | 0.1383 | -1024.0 | -774.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.43 | 57.57 | -5.85 | 44.72 | 0.1421 | -1089.0 | -902.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.13 | 57.57 | -5.84 | 46.28 | 0.1383 | -854.0 | -722.8 | |
| 25.31 | 228.31 | 12.69 | 114.59 | 13.47 | 57.48 | -5.94 | 40.32 | 0.1561 | -1260.1 | -361.3 | |
| 4.86 | -13.00 | 2.44 | -13.00 | 13.71 | 57.47 | -5.94 | 39.33 | 0.1594 | -1193.5 | 999999 | |
| 5.76 | -13.00 | 2.90 | -13.00 | 14.17 | 57.43 | -5.98 | 37.72 | 0.1659 | -1053.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 16.04 | 57.35 | -6.07 | 31.93 | 0.1929 | -749.0 | -692.4 | |
| 3.33 | -13.00 | 1.67 | -13.00 | 14.29 | 57.37 | -6.05 | 37.56 | 0.1683 | -916.5 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 12.00 | 57.39 | -6.03 | 47.82 | 0.1392 | -790.0 | -585.6 | |
| 4.41 | -13.00 | 2.22 | -13.00 | 13.83 | 57.22 | -6.20 | 40.01 | 0.1637 | -1078.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 14.50 | 57.14 | -6.28 | 37.79 | 0.1735 | -730.0 | -646.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 16.43 | 56.73 | -6.68 | 33.31 | 0.2042 | -580.0 | -442.2 | |
| 1.44 | 3.87 | 0.73 | 1.95 | 14.47 | 56.73 | -6.68 | 39.66 | 0.1774 | -1021.6 | -762.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.43 | 56.29 | -7.13 | 41.57 | 0.1819 | -733.0 | -599.0 | |
| 5.85 | -13.00 | 2.94 | -13.00 | 13.27 | 56.04 | -7.37 | 47.28 | 0.1708 | 677.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.06 | 55.17 | -8.25 | 55.98 | 0.1700 | 910.0 | 789.2 | |
| 4.86 | 32.24 | 2.45 | 16.25 | 12.70 | 54.86 | -8.55 | 53.88 | 0.1804 | 942.7 | -250.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 11.94 | 54.76 | -8.65 | 57.82 | 0.1747 | 855.0 | 690.8 | |
| 2.61 | -26.00 | 1.32 | -26.00 | 12.51 | 54.62 | -8.80 | 55.49 | 0.1820 | -1066.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.92 | 54.57 | -8.85 | 49.60 | 0.1969 | -815.0 | -616.5 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.06 | 54.60 | -8.81 | 57.70 | 0.1781 | 705.0 | 616.5 | |
| 4.23 | -26.00 | 2.13 | -26.00 | 12.54 | 54.27 | -9.14 | 56.36 | 0.1872 | -1032.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.15 | 54.22 | -9.20 | 53.83 | 0.1937 | 832.0 | 615.1 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 12.79 | 52.94 | -10.48 | 58.66 | 0.2086 | 1019.0 | 824.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 14.37 | 52.45 | -10.96 | 53.65 | 0.2297 | 899.0 | 675.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 15.01 | 52.13 | -11.28 | 52.18 | 0.2403 | 649.0 | 616.9 | |
| 0.00 | 2.52 | 0.00 | 1.29 | 15.40 | 52.02 | -11.40 | 51.14 | 0.2458 | 918.0 | 775.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 14.91 | 52.04 | -11.37 | 52.72 | 0.2406 | 948.0 | 772.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 18.42 | 51.60 | -11.81 | 43.38 | 0.2840 | 829.0 | 628.7 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 14.63 | 51.67 | -11.74 | 54.53 | 0.2429 | 847.0 | 707.9 | |
| 0.54 | 1.98 | 0.28 | 1.02 | 15.29 | 51.12 | -12.29 | 53.50 | 0.2566 | 1052.7 | 874.3 | |
| 0.00 | 2.70 | 0.00 | 1.38 | 13.45 | 51.16 | -12.26 | 59.79 | 0.2400 | 799.0 | 694.6 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 15.78 | 50.90 | -12.52 | 52.42 | 0.2643 | 1043.0 | 824.2 | |
| 0.00 | 5.40 | 0.00 | 2.76 | 13.72 | 50.98 | -12.43 | 59.13 | 0.2447 | 849.0 | 786.4 | |
| 0.00 | 6.57 | 0.00 | 3.37 | 14.88 | 50.73 | -12.69 | 55.64 | 0.2583 | 676.0 | 816.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.89 | 50.47 | -12.94 | 52.96 | 0.2711 | 601.0 | 478.4 | |
| 0.36 | 1.80 | 0.18 | 0.92 | 14.63 | 50.32 | -13.09 | 57.27 | 0.2617 | 1199.0 | 1028.7 | |
| 4.05 | 39.81 | 2.09 | 20.52 | 15.64 | 50.20 | -13.22 | 54.28 | 0.2724 | 1111.8 | 571.8 | |
| 0.00 | 4.68 | 0.00 | 2.42 | 16.56 | 50.13 | -13.28 | 51.64 | 0.2820 | 1028.0 | 869.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 16.81 | 50.12 | -13.30 | 50.97 | 0.2847 | 718.0 | 597.1 | |
| 2.34 | 3.51 | 1.20 | 1.80 | 14.32 | 50.21 | -13.20 | 58.50 | 0.2607 | 1182.7 | 991.8 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 16.15 | 49.97 | -13.45 | 53.16 | 0.2804 | 229.0 | 199.8 | |
| 1.26 | 2.61 | 0.65 | 1.34 | 14.52 | 49.91 | -13.50 | 58.36 | 0.2667 | 1025.2 | 873.3 | |
| 11.26 | -47.00 | 5.81 | -47.00 | 15.72 | 49.77 | -13.65 | 54.84 | 0.2790 | 1083.6 | 999999 | |
| 0.00 | 4.86 | 0.00 | 2.51 | 15.29 | 49.70 | -13.71 | 56.29 | 0.2761 | 784.0 | 935.8 | |
| 2.52 | 7.21 | 1.30 | 3.71 | 14.86 | 49.66 | -13.75 | 57.72 | 0.2730 | 1193.5 | 829.7 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 14.15 | 49.48 | -13.93 | 60.34 | 0.2699 | 961.0 | 748.6 | |
| 1.26 | 4.77 | 0.65 | 2.46 | 14.97 | 49.37 | -14.05 | 57.87 | 0.2782 | 1051.4 | 854.9 | |
| 0.00 | 5.40 | 0.00 | 2.79 | 15.09 | 49.16 | -14.25 | 57.85 | 0.2820 | 788.0 | 632.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 14.35 | 49.21 | -14.20 | 60.10 | 0.2754 | 720.0 | 567.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 14.56 | 49.04 | -14.38 | 59.71 | 0.2796 | 821.0 | 695.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 13.43 | 49.07 | -14.34 | 63.37 | 0.2707 | 880.0 | 631.2 | |
| 0.00 | 2.16 | 0.00 | 1.12 | 15.02 | 48.94 | -14.47 | 58.43 | 0.2846 | 701.0 | 569.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 14.86 | 48.82 | -14.59 | 59.11 | 0.2850 | 728.0 | 546.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 15.54 | 48.71 | -14.71 | 57.25 | 0.2921 | 767.0 | 619.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 15.75 | 48.60 | -14.82 | 56.80 | 0.2955 | 747.0 | 629.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 14.98 | 48.65 | -14.76 | 59.02 | 0.2884 | 521.0 | 473.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 13.74 | 48.15 | -15.26 | 63.66 | 0.2866 | 729.0 | 572.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
