SDO HMI 2014-08-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.53 | 363.38 | 63.28 | 234.58 | 16.15 | 23.97 | -39.45 | 72.61 | 0.6402 | -127.0 | -70.3 | |
|
previous
or next observation for the same group /

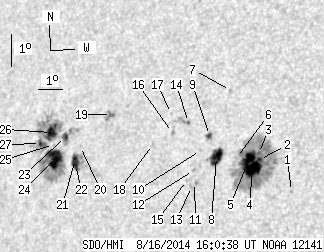

back to the solar disc SDO HMI 2014-08-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.59 | 15.37 | 29.44 | -33.97 | 72.49 | 0.5671 | -605.0 | -487.3 | |
| 2.07 | 167.34 | 1.27 | 102.52 | 16.27 | 28.04 | -35.38 | 71.41 | 0.5886 | -1116.6 | -350.1 | |
| 0.72 | -2.00 | 0.44 | -2.00 | 16.45 | 27.96 | -35.45 | 71.13 | 0.5901 | -693.6 | 999999 | |
| 21.26 | -2.00 | 13.02 | -2.00 | 15.98 | 27.82 | -35.59 | 71.96 | 0.5906 | -1134.8 | 999999 | |
| 11.53 | -2.00 | 7.09 | -2.00 | 16.31 | 27.64 | -35.78 | 71.47 | 0.5940 | -918.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 16.27 | 27.14 | -36.28 | 71.68 | 0.6005 | 2.0 | 39.2 | |
| 0.00 | 1.35 | 0.00 | 0.85 | 18.31 | 26.43 | -36.99 | 68.62 | 0.6156 | -584.0 | -510.5 | |
| 13.60 | 18.91 | 8.49 | 11.81 | 16.25 | 26.35 | -37.06 | 71.95 | 0.6108 | -796.3 | -464.2 | |
| 1.80 | 3.42 | 1.13 | 2.15 | 16.88 | 25.93 | -37.48 | 71.07 | 0.6179 | -721.5 | -535.2 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 16.39 | 25.68 | -37.73 | 71.91 | 0.6199 | -237.0 | -188.7 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 15.40 | 25.66 | -37.76 | 73.50 | 0.6179 | -616.0 | -648.5 | |
| 0.00 | 1.35 | 0.00 | 0.85 | 15.76 | 25.54 | -37.87 | 72.95 | 0.6202 | -545.0 | -471.5 | |
| 0.00 | 2.07 | 0.00 | 1.30 | 15.27 | 25.57 | -37.85 | 73.73 | 0.6188 | -586.0 | -494.8 | |
| 0.54 | 6.30 | 0.34 | 4.03 | 17.22 | 25.00 | -38.41 | 70.80 | 0.6307 | -755.0 | -595.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 15.44 | 25.33 | -38.08 | 73.52 | 0.6223 | -437.0 | -349.0 | |
| 0.00 | 1.89 | 0.00 | 1.21 | 16.87 | 24.44 | -38.98 | 71.50 | 0.6370 | -645.0 | -499.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 17.44 | 24.25 | -39.16 | 70.66 | 0.6408 | -435.0 | -396.0 | |
| 0.00 | 1.53 | 0.00 | 0.99 | 16.44 | 23.72 | -39.70 | 72.34 | 0.6452 | -460.0 | -303.4 | |
| 0.99 | 6.21 | 0.66 | 4.14 | 17.23 | 21.79 | -41.62 | 71.60 | 0.6708 | 793.3 | 663.5 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 16.16 | 20.76 | -42.66 | 73.40 | 0.6815 | 634.0 | 544.3 | |
| 3.33 | 16.39 | 2.25 | 11.05 | 15.78 | 20.64 | -42.77 | 73.98 | 0.6822 | 869.1 | 692.1 | |
| 4.50 | -21.00 | 3.04 | -21.00 | 15.60 | 20.69 | -42.73 | 74.23 | 0.6814 | 892.3 | 999999 | |
| 3.33 | 69.35 | 2.28 | 47.89 | 16.42 | 20.03 | -43.38 | 73.16 | 0.6906 | 819.1 | 271.2 | |
| 19.90 | 61.51 | 13.63 | 42.14 | 15.71 | 19.75 | -43.67 | 74.23 | 0.6930 | 884.6 | 251.9 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 16.13 | 19.59 | -43.83 | 73.65 | 0.6955 | 618.0 | 544.0 | |
| 12.07 | -23.00 | 8.33 | -23.00 | 16.49 | 19.40 | -44.02 | 73.17 | 0.6984 | 772.9 | 999999 | |
| 1.89 | -23.00 | 1.31 | -23.00 | 16.12 | 19.02 | -44.40 | 73.77 | 0.7023 | 529.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
