SDO HMI 2014-08-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.96 | 0.00 | 8.15 | 7.89 | 25.46 | -37.95 | 85.96 | 0.6123 | -78.3 | -135.9 | |
|
previous
or next observation for the same group /

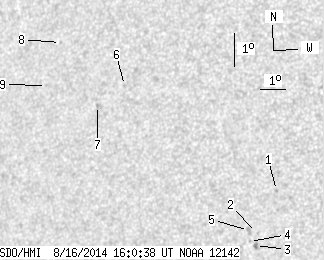

back to the solar disc SDO HMI 2014-08-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.76 | 7.68 | 28.81 | -34.60 | 86.18 | 0.5662 | -707.0 | -519.9 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 6.36 | 28.17 | -35.24 | 88.47 | 0.5758 | -490.0 | -493.0 | |
| 0.00 | 2.34 | 0.00 | 1.42 | 5.96 | 28.17 | -35.25 | 89.16 | 0.5762 | -733.0 | -631.0 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 6.07 | 27.93 | -35.48 | 88.95 | 0.5794 | -518.0 | -358.8 | |
| 0.00 | 3.42 | 0.00 | 2.08 | 6.40 | 27.87 | -35.54 | 88.38 | 0.5801 | -561.0 | -432.9 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 10.44 | 22.55 | -40.87 | 81.75 | 0.6525 | 630.0 | 481.3 | |
| 0.00 | 1.62 | 0.00 | 1.07 | 9.76 | 21.54 | -41.87 | 82.83 | 0.6653 | 540.0 | 443.9 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 11.54 | 19.67 | -43.75 | 80.27 | 0.6897 | 559.0 | 440.9 | |
| 0.00 | 0.81 | 0.00 | 0.56 | 10.20 | 19.31 | -44.10 | 82.24 | 0.6936 | 575.0 | 557.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
