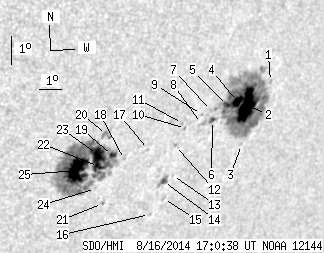

SDO HMI 2014-08-16 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.37 | 469.07 | 83.71 | 351.42 | -17.72 | 105.37 | 42.50 | 239.05 | 0.7518 | -10.9 | 13.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.00 | -16.31 | 109.43 | 46.57 | 242.95 | 0.7848 | -372.0 | -386.1 | |
| 34.94 | 215.86 | 27.52 | 169.48 | -17.02 | 108.55 | 45.68 | 241.68 | 0.7794 | 942.5 | 291.6 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -18.32 | 108.74 | 45.88 | 240.26 | 0.7871 | -165.0 | -135.6 | |
| 8.01 | -2.00 | 6.25 | -2.00 | -16.85 | 108.08 | 45.22 | 241.65 | 0.7742 | 1295.4 | 999999 | |
| 1.80 | -2.00 | 1.39 | -2.00 | -16.94 | 107.66 | 44.80 | 241.33 | 0.7705 | 1075.7 | 999999 | |
| 1.71 | 3.42 | 1.32 | 2.63 | -17.39 | 107.13 | 44.26 | 240.52 | 0.7674 | 684.9 | 514.1 | |
| 0.00 | 1.62 | 0.00 | 1.24 | -17.05 | 106.98 | 44.12 | 240.85 | 0.7644 | 582.0 | 500.9 | |
| 0.00 | 2.43 | 0.00 | 1.86 | -17.45 | 106.66 | 43.79 | 240.20 | 0.7631 | 395.0 | 445.0 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -17.14 | 106.56 | 43.70 | 240.51 | 0.7608 | 603.0 | 562.3 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -17.55 | 105.98 | 43.12 | 239.71 | 0.7571 | 578.0 | 474.3 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -17.37 | 105.80 | 42.94 | 239.82 | 0.7544 | 494.0 | 477.0 | |
| 0.00 | 1.44 | 0.00 | 1.09 | -18.09 | 105.71 | 42.85 | 238.91 | 0.7571 | 585.0 | 418.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -19.11 | 105.89 | 43.03 | 237.82 | 0.7641 | 198.0 | 290.0 | |
| 2.16 | 6.75 | 1.65 | 5.14 | -19.28 | 105.55 | 42.69 | 237.43 | 0.7618 | 668.5 | 469.5 | |
| 0.00 | 1.62 | 0.00 | 1.25 | -19.86 | 105.75 | 42.89 | 236.86 | 0.7666 | 19.0 | 33.0 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -20.36 | 105.30 | 42.44 | 236.02 | 0.7651 | 475.0 | 429.3 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -18.13 | 104.55 | 41.69 | 238.20 | 0.7459 | 341.0 | 401.2 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -18.38 | 103.60 | 40.74 | 237.33 | 0.7380 | -211.0 | -115.2 | |
| 3.42 | 220.54 | 2.48 | 157.35 | -18.21 | 103.04 | 40.18 | 237.20 | 0.7314 | -308.5 | -340.2 | |
| 0.00 | 6.03 | 0.00 | 4.31 | -17.47 | 102.59 | 39.73 | 237.81 | 0.7228 | -592.0 | -528.5 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -19.81 | 103.09 | 40.23 | 235.32 | 0.7412 | -490.0 | -326.9 | |
| 6.66 | -19.00 | 4.80 | -19.00 | -18.53 | 102.55 | 39.69 | 236.50 | 0.7284 | -713.5 | 999999 | |
| 19.36 | -19.00 | 13.88 | -19.00 | -18.12 | 102.39 | 39.53 | 236.90 | 0.7245 | -815.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -19.27 | 102.63 | 39.77 | 235.67 | 0.7336 | -257.0 | -193.8 | |
| 34.31 | -19.00 | 24.42 | -19.00 | -18.60 | 101.69 | 38.83 | 235.87 | 0.7203 | -1035.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
