group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12139	105.87	423.52	53.28	213.55	14.12	55.42	-6.89	39.17	0.1786	-211.6	-58.8

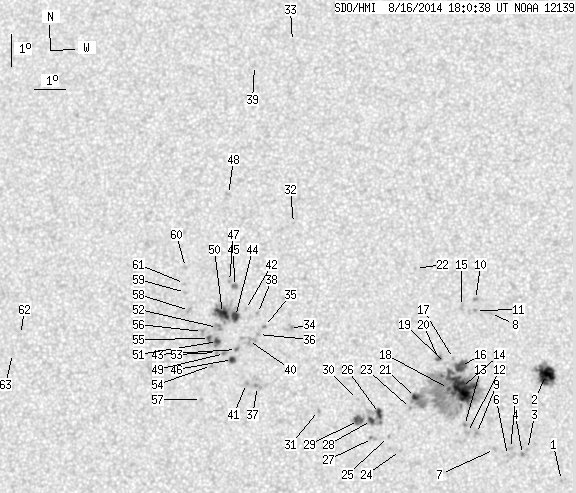

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-08-16 18:00:38 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.08	0.00	0.54	10.79	60.61	-1.70	22.25	0.0773	-978.0	-771.0
2	21.52	34.85	10.76	17.42	14.02	60.12	-2.19	16.21	0.1333	-1209.3	-559.9
3	0.00	0.90	0.00	0.45	11.73	59.55	-2.76	28.26	0.1000	-1028.0	-884.5
4	0.00	1.71	0.00	0.85	11.57	59.40	-2.91	30.35	0.0990	-1100.0	-928.7
5	0.00	2.07	0.00	1.03	11.76	59.02	-3.29	32.47	0.1050	-994.0	-862.5
6	0.00	0.72	0.00	0.36	11.54	58.93	-3.38	34.33	0.1028	-942.0	-798.1
7	0.00	1.98	0.00	0.99	11.72	58.52	-3.78	36.38	0.1094	-806.0	-720.8
8	0.00	1.17	0.00	0.59	15.88	58.34	-3.97	22.65	0.1738	-848.0	-624.5
9	0.00	2.70	0.00	1.35	12.21	57.96	-4.35	37.62	0.1220	-1069.0	-733.7
10	0.00	1.89	0.00	0.95	16.31	57.85	-4.46	24.04	0.1839	-975.0	-813.2
11	0.00	1.17	0.00	0.59	15.97	57.86	-4.45	24.81	0.1785	-1014.0	-871.8
12	0.00	2.52	0.00	1.26	12.23	57.68	-4.63	39.20	0.1254	-910.0	-781.1
13	0.00	1.26	0.00	0.63	12.45	57.58	-4.73	38.70	0.1293	-1078.0	-959.1
14	39.62	211.88	19.84	106.14	13.61	57.47	-4.84	34.24	0.1465	-1218.7	-362.9
15	0.00	3.24	0.00	1.63	16.09	57.41	-4.89	26.64	0.1837	-655.0	-581.4
16	7.65	-14.00	3.84	-14.00	14.25	57.42	-4.89	32.09	0.1561	-1022.0	999999
17	0.00	1.44	0.00	0.72	14.49	57.20	-5.11	32.40	0.1617	-647.0	-527.8
18	1.26	-14.00	0.63	-14.00	13.57	57.06	-5.25	36.53	0.1501	-918.4	999999
19	0.00	1.26	0.00	0.63	14.34	56.95	-5.36	34.18	0.1618	-543.0	-472.1
20	1.26	2.79	0.63	1.40	14.49	56.72	-5.58	34.72	0.1661	-985.8	-757.2
21	3.15	-14.00	1.58	-14.00	13.29	56.03	-6.28	42.70	0.1576	869.9	999999
22	0.00	0.99	0.00	0.50	17.24	55.92	-6.39	30.07	0.2131	-756.0	-540.5
23	0.00	1.17	0.00	0.59	12.95	55.88	-6.42	44.89	0.1552	986.0	760.2
24	0.00	0.90	0.00	0.45	11.66	55.60	-6.71	52.67	0.1445	-684.0	-536.5
25	0.00	1.44	0.00	0.72	12.09	55.22	-7.09	51.90	0.1541	840.0	609.1
26	3.60	20.44	1.81	10.27	12.78	54.92	-7.39	49.58	0.1655	950.7	-57.7
27	0.00	2.61	0.00	1.31	12.02	54.72	-7.59	54.07	0.1603	711.0	723.4
28	2.61	-26.00	1.31	-26.00	12.57	54.67	-7.64	51.51	0.1665	-1170.0	999999
29	4.59	8.73	2.31	4.39	12.56	54.26	-8.04	52.94	0.1719	-1081.1	-785.3
30	0.00	0.72	0.00	0.36	13.20	54.21	-8.10	50.19	0.1793	546.0	317.5
31	0.00	1.53	0.00	0.77	12.85	53.00	-9.31	55.49	0.1923	995.0	822.0
32	0.00	0.81	0.00	0.42	18.58	51.92	-10.39	39.47	0.2700	675.0	542.7
33	0.00	0.27	0.00	0.14	24.28	51.47	-10.83	29.41	0.3504	5.0	3.0
34	0.00	4.68	0.00	2.38	15.34	51.97	-10.34	48.73	0.2313	804.0	805.0
35	0.00	1.71	0.00	0.87	15.38	51.17	-11.14	50.61	0.2422	1018.0	845.0
36	0.00	1.53	0.00	0.78	15.13	50.99	-11.32	51.87	0.2420	927.0	783.3
37	0.00	3.78	0.00	1.92	13.54	51.03	-11.27	57.47	0.2264	809.0	792.0
38	0.00	1.35	0.00	0.69	15.78	50.92	-11.39	49.92	0.2494	794.0	648.1
39	0.00	1.98	0.00	1.05	23.50	50.26	-12.05	33.32	0.3501	-9.0	-7.5
40	0.00	8.46	0.00	4.32	14.94	50.68	-11.63	53.23	0.2443	913.0	781.1
41	0.00	1.53	0.00	0.78	13.63	50.68	-11.63	57.91	0.2322	889.0	798.9
42	0.00	1.35	0.00	0.69	15.89	50.53	-11.78	50.48	0.2557	812.0	551.1
43	0.00	1.98	0.00	1.01	14.66	50.31	-12.00	55.00	0.2467	1263.0	1064.5
44	5.13	37.55	2.63	19.27	15.67	50.22	-12.09	51.87	0.2575	1125.8	646.1
45	0.00	3.24	0.00	1.67	16.59	50.13	-12.18	49.25	0.2681	1109.0	959.6
46	2.52	3.87	1.29	1.98	14.35	50.20	-12.11	56.31	0.2454	1201.2	1012.4
47	0.00	0.99	0.00	0.51	16.74	49.96	-12.35	49.19	0.2718	816.0	675.3
48	0.00	2.43	0.00	1.26	19.43	49.73	-12.57	42.64	0.3044	808.0	645.3
49	0.00	2.52	0.00	1.29	14.53	49.93	-12.38	56.24	0.2507	1204.0	1013.8
50	9.45	-44.00	4.85	-44.00	15.75	49.79	-12.51	52.52	0.2640	1168.3	999999
51	2.16	4.95	1.11	2.54	14.89	49.68	-12.62	55.52	0.2574	1241.2	990.9
52	0.00	5.85	0.00	3.00	15.32	49.66	-12.65	54.17	0.2617	885.0	938.5
53	0.00	1.44	0.00	0.74	14.55	49.67	-12.64	56.67	0.2546	900.0	717.4
54	0.00	1.44	0.00	0.74	14.15	49.53	-12.77	58.31	0.2531	929.0	713.8
55	1.35	3.60	0.69	1.85	14.98	49.42	-12.89	55.75	0.2618	1125.3	940.7
56	0.00	2.52	0.00	1.30	15.18	49.18	-13.13	55.54	0.2670	909.0	743.4
57	0.00	1.53	0.00	0.78	13.10	49.27	-13.04	62.50	0.2488	780.0	587.3
58	0.00	2.61	0.00	1.35	15.82	48.72	-13.59	54.45	0.2790	732.0	677.0
59	0.00	1.44	0.00	0.74	16.37	48.55	-13.76	53.14	0.2864	796.0	598.0
60	0.00	1.89	0.00	0.98	17.14	48.50	-13.81	51.07	0.2946	776.0	565.4
61	0.00	1.17	0.00	0.61	16.64	48.50	-13.81	52.44	0.2897	659.0	531.2
62	0.00	0.27	0.00	0.14	14.91	43.25	-19.06	64.73	0.3505	17.0	8.0
63	0.00	1.62	0.00	0.86	14.32	43.03	-19.27	66.53	0.3502	4.0	8.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
