SDO HMI 2014-08-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.79 | 0.00 | 7.27 | -5.28 | 27.45 | -34.30 | 108.51 | 0.5925 | 398.8 | 349.3 | |
|
previous
or next observation for the same group /

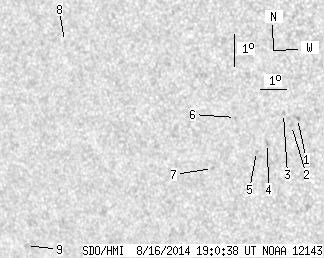

back to the solar disc SDO HMI 2014-08-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.17 | -4.19 | 30.58 | -31.17 | 108.46 | 0.5464 | 888.0 | 733.8 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -4.42 | 30.36 | -31.40 | 108.72 | 0.5506 | 724.0 | 603.8 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -4.07 | 30.09 | -31.67 | 107.95 | 0.5526 | 676.0 | 494.5 | |
| 0.00 | 1.80 | 0.00 | 1.08 | -5.03 | 29.46 | -32.29 | 109.22 | 0.5658 | 700.0 | 527.7 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -5.31 | 29.05 | -32.71 | 109.43 | 0.5727 | -202.0 | -158.1 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -4.30 | 28.34 | -33.42 | 107.37 | 0.5776 | 782.0 | 635.5 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -5.94 | 27.39 | -34.36 | 109.50 | 0.5978 | 657.0 | 523.3 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -2.41 | 21.93 | -39.83 | 101.61 | 0.6555 | -587.0 | -467.7 | |
| 0.00 | 1.71 | 0.00 | 1.19 | -8.90 | 19.81 | -41.94 | 109.94 | 0.7047 | -49.0 | -143.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
