SDO HMI 2014-08-16 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.95 | 392.45 | 49.18 | 197.24 | 14.08 | 55.49 | -5.15 | 30.60 | 0.1611 | -242.3 | -108.0 | |
|
previous
or next observation for the same group /

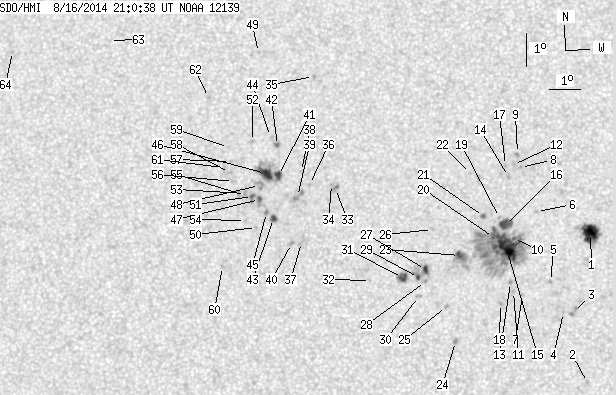

back to the solar disc SDO HMI 2014-08-16 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.44 | 32.78 | 10.21 | 16.37 | 14.01 | 60.13 | -0.52 | 3.97 | 0.1278 | -1230.6 | -619.5 | |
| 0.00 | 1.62 | 0.00 | 0.80 | 9.47 | 60.04 | -0.61 | 12.34 | 0.0494 | -951.0 | -656.6 | |
| 0.00 | 3.78 | 0.00 | 1.88 | 11.63 | 59.60 | -1.05 | 11.79 | 0.0879 | -848.0 | -887.1 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 11.60 | 59.29 | -1.35 | 15.23 | 0.0886 | -881.0 | -729.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.54 | 58.88 | -1.76 | 16.48 | 0.1063 | -920.0 | -709.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.68 | 58.43 | -2.22 | 15.10 | 0.1442 | -697.0 | -500.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 12.14 | 58.02 | -2.63 | 25.36 | 0.1052 | -907.0 | -710.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.03 | 57.91 | -2.73 | 15.81 | 0.1690 | -942.0 | -813.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 16.46 | 57.81 | -2.83 | 15.65 | 0.1766 | -862.0 | -666.0 | |
| 0.90 | 182.33 | 0.45 | 91.13 | 13.85 | 57.72 | -2.93 | 21.75 | 0.1344 | -878.1 | -455.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.23 | 57.74 | -2.91 | 27.28 | 0.1088 | -946.0 | -767.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 16.12 | 57.69 | -2.96 | 16.86 | 0.1716 | -917.0 | -749.5 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.51 | 57.64 | -3.01 | 26.88 | 0.1138 | -1107.0 | -904.2 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 15.75 | 57.54 | -3.11 | 18.37 | 0.1663 | -865.0 | -656.5 | |
| 34.94 | -10.00 | 17.46 | -10.00 | 13.58 | 57.50 | -3.14 | 24.03 | 0.1315 | -1256.4 | 999999 | |
| 8.28 | -10.00 | 4.15 | -10.00 | 14.28 | 57.46 | -3.18 | 22.22 | 0.1429 | -989.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 16.09 | 57.44 | -3.21 | 18.26 | 0.1724 | -873.0 | -725.5 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 11.87 | 57.34 | -3.31 | 32.16 | 0.1067 | -916.0 | -756.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.49 | 57.27 | -3.37 | 22.82 | 0.1476 | -598.0 | -507.3 | |
| 0.27 | -10.00 | 0.14 | -10.00 | 13.88 | 57.09 | -3.55 | 25.73 | 0.1392 | -949.0 | 999999 | |
| 0.63 | 2.97 | 0.32 | 1.49 | 14.52 | 56.77 | -3.88 | 25.71 | 0.1516 | -972.3 | -800.7 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 15.84 | 56.34 | -4.31 | 24.49 | 0.1752 | -856.0 | -659.5 | |
| 3.78 | 16.66 | 1.89 | 8.33 | 13.32 | 56.04 | -4.61 | 34.13 | 0.1400 | 763.7 | 250.1 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 10.70 | 55.96 | -4.69 | 49.02 | 0.1069 | -963.0 | -830.2 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 11.76 | 55.66 | -4.99 | 43.93 | 0.1232 | -822.0 | -599.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.11 | 55.18 | -5.47 | 35.61 | 0.1595 | -908.0 | -669.9 | |
| 3.06 | 16.48 | 1.53 | 8.25 | 12.88 | 54.98 | -5.66 | 41.71 | 0.1452 | 931.9 | -176.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.52 | 54.99 | -5.66 | 43.44 | 0.1406 | 684.0 | 482.2 | |
| 1.44 | -27.00 | 0.72 | -27.00 | 12.64 | 54.77 | -5.88 | 43.93 | 0.1447 | -1101.0 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 12.06 | 54.78 | -5.86 | 46.85 | 0.1376 | 947.0 | 764.6 | |
| 4.95 | 8.37 | 2.48 | 4.20 | 12.63 | 54.27 | -6.38 | 46.26 | 0.1507 | -1095.7 | -701.5 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 12.53 | 53.27 | -7.38 | 50.82 | 0.1624 | 814.0 | 596.1 | |
| 0.00 | 3.87 | 0.00 | 1.96 | 15.33 | 52.07 | -8.57 | 43.62 | 0.2094 | 989.0 | 834.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.45 | 51.94 | -8.71 | 43.64 | 0.2124 | 781.0 | 645.8 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 18.77 | 51.20 | -9.45 | 36.47 | 0.2626 | 847.0 | 697.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 15.43 | 51.24 | -9.41 | 45.84 | 0.2206 | 935.0 | 753.6 | |
| 0.00 | 2.97 | 0.00 | 1.50 | 13.65 | 51.06 | -9.59 | 52.92 | 0.2038 | 786.0 | 747.3 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 15.83 | 50.97 | -9.68 | 45.33 | 0.2285 | 750.0 | 512.3 | |
| 0.00 | 6.66 | 0.00 | 3.38 | 15.06 | 50.87 | -9.77 | 48.18 | 0.2210 | 998.0 | 895.2 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 13.62 | 50.74 | -9.90 | 53.92 | 0.2077 | 943.0 | 799.0 | |
| 3.69 | 32.96 | 1.88 | 16.82 | 15.69 | 50.24 | -10.41 | 47.79 | 0.2359 | 1123.6 | 657.6 | |
| 0.72 | 2.07 | 0.37 | 1.06 | 16.61 | 50.16 | -10.49 | 45.13 | 0.2473 | 1036.2 | 875.6 | |
| 2.61 | 3.96 | 1.33 | 2.01 | 14.37 | 50.14 | -10.51 | 52.60 | 0.2234 | 1224.7 | 956.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 16.89 | 49.91 | -10.73 | 44.95 | 0.2533 | 700.0 | 644.6 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 14.55 | 49.91 | -10.74 | 52.53 | 0.2283 | 1190.0 | 1003.2 | |
| 9.81 | -41.00 | 5.01 | -41.00 | 15.75 | 49.82 | -10.83 | 48.70 | 0.2418 | 1159.5 | 999999 | |
| 1.35 | 4.59 | 0.69 | 2.34 | 14.94 | 49.67 | -10.98 | 51.74 | 0.2354 | 1241.5 | 980.4 | |
| 0.00 | 6.57 | 0.00 | 3.35 | 15.37 | 49.64 | -11.00 | 50.35 | 0.2401 | 636.0 | 867.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 19.48 | 49.36 | -11.29 | 39.61 | 0.2907 | 726.0 | 480.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 14.09 | 49.61 | -11.04 | 54.94 | 0.2278 | 884.0 | 662.1 | |
| 1.08 | 4.05 | 0.55 | 2.07 | 15.03 | 49.44 | -11.21 | 52.00 | 0.2394 | 1167.5 | 936.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 16.72 | 49.34 | -11.30 | 46.87 | 0.2584 | 822.0 | 661.1 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 15.12 | 49.21 | -11.44 | 52.24 | 0.2433 | 787.0 | 769.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 14.29 | 49.25 | -11.40 | 55.01 | 0.2348 | 839.0 | 502.5 | |
| 0.00 | 2.70 | 0.00 | 1.38 | 15.11 | 48.98 | -11.66 | 52.77 | 0.2462 | 786.0 | 687.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 15.48 | 48.80 | -11.84 | 51.98 | 0.2522 | 845.0 | 720.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.09 | 48.67 | -11.98 | 50.35 | 0.2601 | 743.0 | 589.9 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 15.75 | 48.66 | -11.99 | 51.43 | 0.2569 | 750.0 | 664.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 16.52 | 48.58 | -12.07 | 49.25 | 0.2657 | 757.0 | 624.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 12.87 | 48.59 | -12.06 | 61.70 | 0.2324 | 735.0 | 579.6 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 15.90 | 48.42 | -12.22 | 51.48 | 0.2614 | 377.0 | 469.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 18.05 | 47.83 | -12.82 | 46.65 | 0.2914 | 864.0 | 624.9 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 19.73 | 44.40 | -16.25 | 48.94 | 0.3508 | 53.0 | 41.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 19.27 | 41.17 | -19.48 | 54.60 | 0.3878 | 712.0 | 483.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
