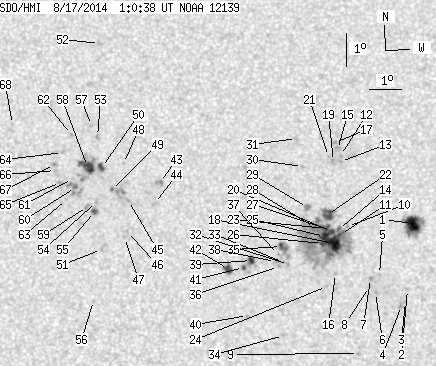

SDO HMI 2014-08-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.35 | 386.81 | 43.72 | 193.78 | 14.15 | 55.77 | -2.67 | 301.48 | 0.1454 | -244.3 | -134.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.04 | 34.23 | 7.52 | 17.10 | 14.08 | 60.11 | 1.67 | 347.57 | 0.1316 | -1245.9 | -683.4 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 12.07 | 59.93 | 1.49 | 344.66 | 0.0968 | -703.0 | -576.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.70 | 59.87 | 1.43 | 344.24 | 0.0904 | -793.0 | -609.0 | |
| 0.00 | 2.79 | 0.00 | 1.39 | 11.58 | 59.75 | 1.31 | 345.20 | 0.0878 | -881.0 | -794.4 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.53 | 59.07 | 0.63 | 353.96 | 0.1019 | -864.0 | -682.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.98 | 58.94 | 0.50 | 354.65 | 0.0922 | -969.0 | -845.9 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.41 | 58.79 | 0.35 | 356.57 | 0.0994 | -964.0 | -860.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.16 | 58.76 | 0.32 | 356.74 | 0.0951 | -826.0 | -691.5 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 10.12 | 58.41 | -0.03 | 0.47 | 0.0594 | -878.0 | -713.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 13.99 | 58.07 | -0.37 | 2.82 | 0.1271 | -774.0 | -615.4 | |
| 3.06 | 183.84 | 1.53 | 91.75 | 13.75 | 57.85 | -0.59 | 4.65 | 0.1231 | -1044.7 | -449.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 16.17 | 57.85 | -0.59 | 3.45 | 0.1650 | -965.0 | -838.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.99 | 57.85 | -0.59 | 3.52 | 0.1618 | -1000.0 | -734.2 | |
| 0.81 | -11.00 | 0.40 | -11.00 | 13.90 | 57.79 | -0.65 | 5.04 | 0.1258 | -858.3 | 999999 | |
| 0.00 | 3.96 | 0.00 | 1.99 | 16.36 | 57.76 | -0.69 | 3.93 | 0.1683 | -763.0 | -708.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.56 | 57.70 | -0.74 | 7.09 | 0.1027 | -987.0 | -788.1 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 16.57 | 57.66 | -0.78 | 4.37 | 0.1721 | -868.0 | -635.0 | |
| 17.56 | -11.00 | 8.76 | -11.00 | 13.48 | 57.64 | -0.80 | 6.64 | 0.1187 | -1331.0 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.31 | 15.99 | 57.63 | -0.81 | 4.84 | 0.1621 | -853.0 | -810.0 | |
| 2.70 | -11.00 | 1.35 | -11.00 | 13.84 | 57.57 | -0.87 | 6.78 | 0.1251 | -1121.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.14 | 57.47 | -0.97 | 5.68 | 0.1650 | -869.0 | -697.5 | |
| 7.03 | -11.00 | 3.51 | -11.00 | 14.36 | 57.45 | -0.99 | 7.22 | 0.1344 | -993.9 | 999999 | |
| 2.61 | -11.00 | 1.30 | -11.00 | 13.93 | 57.45 | -0.99 | 7.65 | 0.1270 | -1090.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 12.16 | 57.42 | -1.02 | 10.42 | 0.0966 | -795.0 | -563.4 | |
| 6.76 | -11.00 | 3.37 | -11.00 | 13.69 | 57.35 | -1.09 | 8.65 | 0.1230 | -1210.2 | 999999 | |
| 2.61 | -11.00 | 1.30 | -11.00 | 13.47 | 57.29 | -1.15 | 9.42 | 0.1195 | -1003.9 | 999999 | |
| 2.16 | -11.00 | 1.08 | -11.00 | 13.96 | 57.29 | -1.15 | 8.80 | 0.1279 | -1140.8 | 999999 | |
| 1.08 | -11.00 | 0.54 | -11.00 | 13.96 | 57.04 | -1.40 | 10.67 | 0.1286 | -873.2 | 999999 | |
| 0.00 | 4.14 | 0.00 | 2.07 | 14.58 | 56.82 | -1.62 | 11.36 | 0.1398 | -942.0 | -731.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 15.83 | 56.65 | -1.79 | 10.75 | 0.1617 | -858.0 | -609.4 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 16.69 | 56.46 | -1.99 | 10.86 | 0.1769 | -704.0 | -554.1 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.83 | 56.24 | -2.20 | 19.44 | 0.1132 | 751.0 | 673.6 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 12.89 | 56.08 | -2.36 | 20.51 | 0.1151 | 832.0 | 685.2 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 10.67 | 56.10 | -2.34 | 30.34 | 0.0799 | -879.0 | -594.8 | |
| 1.98 | 12.25 | 0.99 | 6.11 | 13.38 | 56.01 | -2.43 | 19.58 | 0.1235 | 770.7 | 108.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.77 | 55.93 | -2.51 | 22.13 | 0.1141 | 899.0 | 748.6 | |
| 0.00 | 0.63 | 0.00 | 0.31 | 13.14 | 55.92 | -2.52 | 20.98 | 0.1200 | 897.0 | 686.3 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 12.92 | 55.83 | -2.61 | 22.37 | 0.1172 | 931.0 | 791.4 | |
| 2.61 | 12.07 | 1.30 | 6.02 | 12.95 | 55.08 | -3.36 | 27.77 | 0.1231 | 914.1 | -55.6 | |
| 0.00 | 0.45 | 0.00 | 0.22 | 11.27 | 54.98 | -3.46 | 36.77 | 0.0994 | 577.0 | 423.4 | |
| 1.08 | -39.00 | 0.54 | -39.00 | 12.73 | 54.84 | -3.60 | 30.36 | 0.1219 | -961.0 | 999999 | |
| 4.32 | 7.66 | 2.16 | 3.82 | 12.67 | 54.37 | -4.07 | 33.76 | 0.1252 | -1108.7 | -709.5 | |
| 0.00 | 4.14 | 0.00 | 2.09 | 15.31 | 52.15 | -6.30 | 35.23 | 0.1842 | 730.0 | 726.9 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 14.67 | 52.01 | -6.43 | 38.02 | 0.1768 | 665.0 | 635.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.75 | 51.18 | -7.26 | 41.06 | 0.1869 | 899.0 | 690.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.80 | 51.18 | -7.26 | 44.74 | 0.1751 | 862.0 | 660.3 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 13.61 | 51.09 | -7.35 | 45.86 | 0.1740 | 862.0 | 713.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.88 | 50.98 | -7.46 | 37.98 | 0.2037 | 758.0 | 494.5 | |
| 0.45 | 8.74 | 0.23 | 4.41 | 15.08 | 50.63 | -7.81 | 41.92 | 0.1972 | 1024.8 | 886.8 | |
| 2.79 | 32.16 | 1.41 | 16.31 | 15.75 | 50.29 | -8.15 | 40.86 | 0.2095 | 1021.5 | 707.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.24 | 50.38 | -8.06 | 50.06 | 0.1789 | 852.0 | 664.1 | |
| 0.00 | 2.97 | 0.00 | 1.53 | 19.58 | 50.05 | -8.39 | 31.60 | 0.2635 | 887.0 | 623.2 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 16.70 | 50.12 | -8.32 | 38.50 | 0.2236 | 916.0 | 732.3 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.70 | 50.17 | -8.27 | 44.87 | 0.1981 | 853.0 | 709.3 | |
| 1.71 | 4.14 | 0.86 | 2.09 | 14.39 | 50.12 | -8.32 | 46.20 | 0.1951 | 1179.8 | 815.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.68 | 50.17 | -8.27 | 58.19 | 0.1664 | 805.0 | 631.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.03 | 49.92 | -8.52 | 38.22 | 0.2301 | 790.0 | 606.2 | |
| 10.36 | -50.00 | 5.25 | -50.00 | 15.77 | 49.84 | -8.60 | 42.27 | 0.2149 | 1117.1 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.46 | 14.54 | 49.89 | -8.55 | 46.39 | 0.1997 | 1028.0 | 840.8 | |
| 0.63 | 12.52 | 0.32 | 6.34 | 15.12 | 49.49 | -8.95 | 45.59 | 0.2113 | 1216.7 | 882.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.39 | 49.38 | -9.06 | 44.98 | 0.2158 | 682.0 | 573.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 16.75 | 49.29 | -9.15 | 41.00 | 0.2332 | 896.0 | 716.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 14.75 | 49.22 | -9.22 | 47.75 | 0.2104 | 725.0 | 587.6 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 16.19 | 49.02 | -9.42 | 43.47 | 0.2294 | 965.0 | 689.1 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 15.27 | 49.00 | -9.44 | 46.55 | 0.2189 | 763.0 | 690.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.63 | 48.83 | -9.61 | 45.84 | 0.2252 | 669.0 | 633.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 15.81 | 48.79 | -9.65 | 45.35 | 0.2278 | 958.0 | 827.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.02 | 47.37 | -11.07 | 45.47 | 0.2587 | 650.0 | 490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
