SDO HMI 2014-08-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.08 | 372.43 | 54.04 | 225.75 | 16.10 | 24.02 | -34.42 | 71.26 | 0.5740 | -95.4 | -27.6 | |
|
previous
or next observation for the same group /

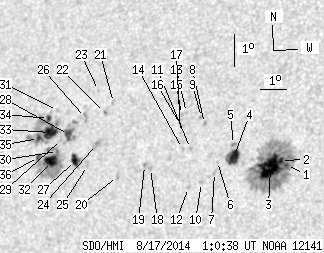

back to the solar disc SDO HMI 2014-08-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 169.70 | 1.09 | 98.22 | 16.05 | 28.59 | -29.85 | 69.71 | 0.5119 | -1036.9 | -405.1 | |
| 2.88 | -1.00 | 1.66 | -1.00 | 16.19 | 28.35 | -30.09 | 69.56 | 0.5158 | -1176.8 | 999999 | |
| 31.35 | -1.00 | 18.15 | -1.00 | 15.96 | 28.02 | -30.42 | 70.15 | 0.5196 | -1201.2 | 999999 | |
| 12.34 | 15.94 | 7.25 | 9.37 | 16.18 | 26.62 | -31.82 | 70.32 | 0.5399 | -905.0 | -597.9 | |
| 0.00 | 2.34 | 0.00 | 1.38 | 16.58 | 26.55 | -31.89 | 69.63 | 0.5422 | -603.0 | -528.4 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 16.03 | 26.05 | -32.39 | 70.83 | 0.5472 | -504.0 | -369.8 | |
| 0.00 | 1.89 | 0.00 | 1.12 | 15.68 | 26.00 | -32.44 | 71.47 | 0.5468 | -607.0 | -518.0 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 17.16 | 25.34 | -33.10 | 69.11 | 0.5606 | -817.0 | -600.4 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 17.34 | 25.19 | -33.25 | 68.86 | 0.5632 | -793.0 | -732.4 | |
| 0.00 | 2.07 | 0.00 | 1.23 | 15.35 | 25.57 | -32.87 | 72.22 | 0.5518 | -649.0 | -448.2 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 16.36 | 24.97 | -33.47 | 70.64 | 0.5630 | -719.0 | -604.1 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 15.17 | 25.11 | -33.33 | 72.69 | 0.5576 | -652.0 | -461.6 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 17.46 | 24.59 | -33.85 | 68.90 | 0.5716 | -527.0 | -420.2 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 16.34 | 24.67 | -33.77 | 70.79 | 0.5671 | -619.0 | -450.2 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 17.38 | 24.42 | -34.02 | 69.10 | 0.5737 | -541.0 | -477.4 | |
| 0.00 | 2.16 | 0.00 | 1.30 | 17.08 | 24.44 | -34.00 | 69.61 | 0.5724 | -586.0 | -492.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 16.83 | 24.49 | -33.95 | 70.01 | 0.5709 | -612.0 | -412.1 | |
| 0.00 | 2.25 | 0.00 | 1.37 | 15.66 | 23.57 | -34.87 | 72.33 | 0.5799 | 814.0 | 591.4 | |
| 0.00 | 1.80 | 0.00 | 1.10 | 15.73 | 23.33 | -35.11 | 72.28 | 0.5834 | 695.0 | 601.5 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 15.33 | 22.36 | -36.08 | 73.23 | 0.5954 | 689.0 | 620.2 | |
| 0.00 | 1.80 | 0.00 | 1.12 | 17.58 | 21.71 | -36.73 | 69.75 | 0.6099 | 652.0 | 627.2 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 17.25 | 21.43 | -37.01 | 70.37 | 0.6126 | 893.0 | 745.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 17.91 | 21.03 | -37.41 | 69.45 | 0.6196 | 531.0 | 396.2 | |
| 0.00 | 6.94 | 0.00 | 4.33 | 16.25 | 21.34 | -37.10 | 72.01 | 0.6111 | 870.0 | 705.4 | |
| 0.00 | 1.62 | 0.00 | 1.01 | 15.59 | 21.13 | -37.31 | 73.14 | 0.6124 | 655.0 | 597.9 | |
| 0.00 | 3.87 | 0.00 | 2.44 | 17.05 | 20.72 | -37.72 | 70.91 | 0.6212 | 763.0 | 640.8 | |
| 6.49 | 9.55 | 4.08 | 6.01 | 15.71 | 20.62 | -37.82 | 73.07 | 0.6192 | 948.7 | 655.0 | |
| 5.13 | 17.83 | 3.26 | 11.31 | 16.48 | 20.17 | -38.27 | 71.96 | 0.6269 | 932.6 | 647.6 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 16.31 | 19.92 | -38.52 | 72.30 | 0.6297 | 778.0 | 645.3 | |
| 0.27 | 58.82 | 0.17 | 37.50 | 15.93 | 19.85 | -38.59 | 72.91 | 0.6298 | 1039.7 | 451.4 | |
| 0.00 | 1.62 | 0.00 | 1.04 | 17.18 | 19.55 | -38.89 | 71.03 | 0.6365 | 538.0 | 492.7 | |
| 10.72 | -30.00 | 6.83 | -30.00 | 15.61 | 19.68 | -38.76 | 73.45 | 0.6313 | 1090.2 | 999999 | |
| 12.25 | 56.03 | 7.85 | 36.03 | 16.49 | 19.43 | -39.01 | 72.14 | 0.6364 | 864.6 | 164.5 | |
| 1.71 | -33.00 | 1.10 | -33.00 | 16.91 | 19.25 | -39.19 | 71.53 | 0.6397 | 627.2 | 999999 | |
| 2.16 | -33.00 | 1.39 | -33.00 | 16.27 | 18.99 | -39.45 | 72.58 | 0.6415 | 471.1 | 999999 | |
| 1.89 | -30.00 | 1.21 | -30.00 | 15.70 | 19.13 | -39.31 | 73.45 | 0.6385 | 453.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
