SDO HMI 2014-08-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.94 | 492.84 | 95.55 | 407.58 | -17.71 | 105.60 | 47.71 | 241.71 | 0.8012 | 71.9 | -62.3 | |
|
previous
or next observation for the same group /

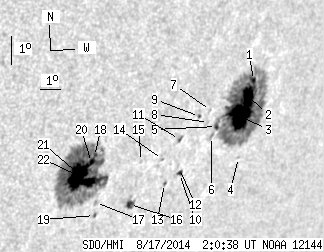

back to the solar disc SDO HMI 2014-08-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 238.01 | 1.97 | 209.20 | -16.03 | 109.06 | 51.17 | 245.26 | 0.8265 | 663.0 | 207.6 | |
| 18.47 | -1.00 | 16.21 | -1.00 | -16.54 | 108.94 | 51.05 | 244.64 | 0.8272 | 838.3 | 999999 | |
| 37.48 | -1.00 | 32.95 | -1.00 | -17.18 | 108.78 | 50.89 | 243.84 | 0.8280 | 728.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.81 | -18.58 | 109.29 | 51.40 | 242.49 | 0.8374 | 30.0 | 0.9 | |
| 2.16 | -1.00 | 1.86 | -1.00 | -17.41 | 107.71 | 49.82 | 243.13 | 0.8194 | 525.4 | 999999 | |
| 0.00 | 2.52 | 0.00 | 2.17 | -17.72 | 107.58 | 49.69 | 242.72 | 0.8195 | 268.0 | 245.6 | |
| 0.00 | 1.17 | 0.00 | 0.99 | -16.83 | 107.21 | 49.32 | 243.57 | 0.8128 | 521.0 | 374.2 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -17.23 | 107.25 | 49.36 | 243.13 | 0.8147 | 403.0 | 367.4 | |
| 0.54 | 1.80 | 0.45 | 1.51 | -16.99 | 106.73 | 48.84 | 243.18 | 0.8090 | 479.0 | 386.6 | |
| 1.44 | 3.06 | 1.22 | 2.60 | -18.84 | 106.44 | 48.55 | 240.94 | 0.8137 | -506.5 | -426.1 | |
| 0.81 | 2.34 | 0.67 | 1.95 | -17.67 | 106.01 | 48.11 | 242.06 | 0.8051 | 503.3 | 412.6 | |
| 0.00 | 0.99 | 0.00 | 0.84 | -18.67 | 106.37 | 48.48 | 241.10 | 0.8124 | -369.0 | -411.9 | |
| 0.36 | 1.62 | 0.30 | 1.36 | -19.12 | 105.82 | 47.93 | 240.33 | 0.8094 | 242.2 | 288.4 | |
| 0.00 | 1.35 | 0.00 | 1.12 | -18.28 | 105.41 | 47.52 | 241.09 | 0.8022 | 309.0 | 345.9 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -18.26 | 104.41 | 46.52 | 240.63 | 0.7930 | 200.0 | 272.6 | |
| 3.87 | 8.92 | 3.18 | 7.31 | -19.68 | 104.37 | 46.48 | 238.98 | 0.7989 | -585.6 | -386.9 | |
| 0.00 | 2.16 | 0.00 | 1.71 | -19.47 | 102.72 | 44.83 | 238.36 | 0.7829 | -331.0 | -237.9 | |
| 1.71 | 224.94 | 1.32 | 173.53 | -17.89 | 102.14 | 44.25 | 239.89 | 0.7699 | -659.5 | -376.4 | |
| 0.45 | 1.62 | 0.36 | 1.29 | -19.92 | 102.83 | 44.94 | 237.91 | 0.7861 | -337.8 | -236.4 | |
| 3.06 | -18.00 | 2.37 | -18.00 | -18.08 | 102.07 | 44.18 | 239.63 | 0.7701 | -676.1 | 999999 | |
| 10.54 | -18.00 | 8.21 | -18.00 | -18.75 | 102.15 | 44.26 | 238.89 | 0.7742 | -606.4 | 999999 | |
| 31.80 | -18.00 | 24.48 | -18.00 | -18.47 | 101.57 | 43.68 | 238.90 | 0.7673 | -988.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
