SDO HMI 2014-08-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.43 | 382.65 | 35.76 | 191.67 | 14.18 | 55.67 | -1.67 | 333.36 | 0.1432 | -142.2 | -126.9 | |
|
previous
or next observation for the same group /

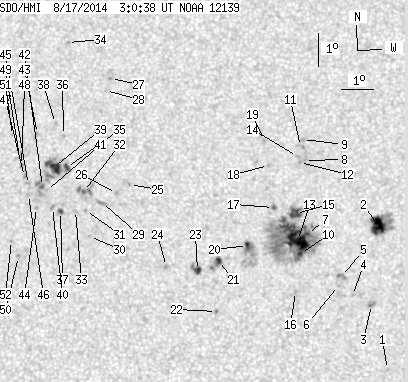

back to the solar disc SDO HMI 2014-08-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.27 | 9.63 | 60.32 | 2.98 | 314.58 | 0.0724 | -970.0 | -778.5 | |
| 18.02 | 36.67 | 9.01 | 18.34 | 14.02 | 60.10 | 2.76 | 339.81 | 0.1358 | -1223.8 | -457.1 | |
| 0.00 | 4.14 | 0.00 | 2.06 | 11.61 | 59.85 | 2.51 | 333.23 | 0.0956 | -853.0 | -817.8 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 11.89 | 59.26 | 1.92 | 339.92 | 0.0960 | -946.0 | -712.2 | |
| 0.00 | 4.41 | 0.00 | 2.20 | 12.47 | 58.93 | 1.58 | 344.86 | 0.1039 | -778.0 | -766.5 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.20 | 58.83 | 1.49 | 345.04 | 0.0989 | -967.0 | -735.8 | |
| 1.71 | 176.41 | 0.85 | 88.04 | 13.79 | 57.87 | 0.53 | 355.79 | 0.1235 | -1094.8 | -542.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 16.02 | 57.79 | 0.45 | 357.34 | 0.1622 | -958.0 | -715.7 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 16.67 | 57.73 | 0.39 | 357.86 | 0.1733 | -688.0 | -607.3 | |
| 1.44 | -7.00 | 0.72 | -7.00 | 13.18 | 57.65 | 0.31 | 357.29 | 0.1127 | -1030.1 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.54 | 16.46 | 57.66 | 0.32 | 358.17 | 0.1696 | -540.0 | -678.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 15.96 | 57.63 | 0.29 | 358.27 | 0.1611 | -991.0 | -758.8 | |
| 20.81 | -7.00 | 10.38 | -7.00 | 13.57 | 57.56 | 0.22 | 358.20 | 0.1195 | -1369.9 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 16.15 | 57.57 | 0.23 | 358.67 | 0.1642 | -854.0 | -745.2 | |
| 6.67 | -7.00 | 3.33 | -7.00 | 14.40 | 57.50 | 0.16 | 358.85 | 0.1339 | -971.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.02 | 57.50 | 0.15 | 358.36 | 0.0924 | -881.0 | -697.6 | |
| 0.45 | 2.43 | 0.23 | 1.22 | 14.58 | 56.81 | -0.53 | 3.76 | 0.1374 | -1020.8 | -787.1 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 15.87 | 56.65 | -0.69 | 4.17 | 0.1598 | -853.0 | -617.6 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 16.64 | 56.52 | -0.82 | 4.55 | 0.1733 | -875.0 | -645.0 | |
| 2.34 | 25.23 | 1.17 | 12.58 | 13.42 | 56.00 | -1.34 | 11.07 | 0.1191 | 730.2 | 348.3 | |
| 2.43 | 8.38 | 1.21 | 4.18 | 12.96 | 55.10 | -2.24 | 19.38 | 0.1154 | 925.0 | -209.7 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 11.40 | 55.05 | -2.29 | 25.73 | 0.0908 | 803.0 | 578.4 | |
| 3.15 | 8.29 | 1.57 | 4.13 | 12.65 | 54.45 | -2.89 | 25.53 | 0.1148 | -1088.3 | -696.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 12.77 | 53.48 | -3.86 | 31.96 | 0.1246 | 898.0 | 665.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 15.27 | 52.27 | -5.07 | 29.81 | 0.1722 | 767.0 | 650.9 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 14.99 | 51.87 | -5.47 | 32.61 | 0.1717 | 928.0 | 771.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 18.53 | 51.58 | -5.76 | 24.93 | 0.2269 | 992.0 | 790.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 18.16 | 51.43 | -5.91 | 26.24 | 0.2223 | 790.0 | 567.8 | |
| 0.00 | 4.41 | 0.00 | 2.22 | 14.71 | 51.40 | -5.94 | 35.71 | 0.1722 | 868.0 | 747.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 13.66 | 51.05 | -6.29 | 41.29 | 0.1620 | 956.0 | 749.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 14.46 | 50.91 | -6.44 | 38.80 | 0.1740 | 993.0 | 777.6 | |
| 0.63 | 10.09 | 0.32 | 5.08 | 15.04 | 50.83 | -6.52 | 37.07 | 0.1826 | 1237.6 | 886.1 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 14.45 | 50.59 | -6.75 | 40.14 | 0.1774 | 425.0 | 526.5 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 19.63 | 50.15 | -7.19 | 27.78 | 0.2543 | 840.0 | 717.0 | |
| 2.16 | 32.16 | 1.09 | 16.27 | 15.77 | 50.26 | -7.08 | 36.93 | 0.1982 | 1051.0 | 769.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 16.75 | 50.13 | -7.21 | 34.51 | 0.2130 | 910.0 | 698.0 | |
| 1.17 | 2.52 | 0.59 | 1.27 | 14.42 | 50.12 | -7.22 | 42.17 | 0.1822 | 1161.2 | 974.1 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 17.12 | 49.86 | -7.48 | 34.48 | 0.2207 | 825.0 | 522.2 | |
| 9.82 | -35.00 | 4.97 | -35.00 | 15.79 | 49.88 | -7.46 | 38.28 | 0.2026 | 1130.8 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 14.54 | 49.86 | -7.48 | 42.69 | 0.1867 | 1054.0 | 861.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.05 | 49.65 | -7.69 | 41.58 | 0.1955 | 1020.0 | 782.5 | |
| 0.63 | 10.09 | 0.32 | 5.10 | 15.17 | 49.52 | -7.82 | 41.63 | 0.1985 | 1208.0 | 864.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.80 | 49.30 | -8.04 | 37.30 | 0.2220 | 792.0 | 627.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 14.53 | 49.36 | -7.99 | 44.55 | 0.1926 | 914.0 | 721.0 | |
| 0.00 | 3.51 | 0.00 | 1.78 | 15.23 | 49.08 | -8.27 | 42.99 | 0.2043 | 640.0 | 581.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 14.92 | 49.09 | -8.25 | 44.03 | 0.2005 | 628.0 | 564.8 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 15.47 | 48.94 | -8.40 | 42.62 | 0.2089 | 874.0 | 702.2 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 15.81 | 48.83 | -8.51 | 41.87 | 0.2143 | 998.0 | 774.0 | |
| 0.00 | 4.59 | 0.00 | 2.33 | 16.09 | 48.76 | -8.59 | 41.24 | 0.2186 | 506.0 | 552.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 13.02 | 48.84 | -8.50 | 52.47 | 0.1825 | 932.0 | 792.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.73 | 48.50 | -8.84 | 40.10 | 0.2295 | 454.0 | 351.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.51 | 48.60 | -8.74 | 51.12 | 0.1906 | 899.0 | 721.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
