SDO HMI 2014-08-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.53 | 497.76 | 91.88 | 416.55 | -17.71 | 105.66 | 48.32 | 242.00 | 0.8068 | 33.6 | -38.5 | |
|
previous
or next observation for the same group /

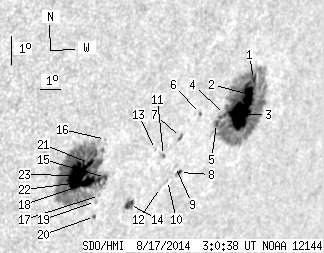

back to the solar disc SDO HMI 2014-08-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.78 | 246.05 | 3.36 | 219.16 | -16.02 | 109.12 | 51.78 | 245.51 | 0.8319 | 646.3 | 222.5 | |
| 11.53 | -1.00 | 10.26 | -1.00 | -16.51 | 109.04 | 51.70 | 244.94 | 0.8328 | 867.0 | 999999 | |
| 37.21 | -1.00 | 33.18 | -1.00 | -17.14 | 108.88 | 51.54 | 244.15 | 0.8335 | 757.6 | 999999 | |
| 0.27 | -1.00 | 0.24 | -1.00 | -17.06 | 108.03 | 50.69 | 243.89 | 0.8259 | 745.0 | 999999 | |
| 1.98 | -1.00 | 1.73 | -1.00 | -17.33 | 107.73 | 50.39 | 243.46 | 0.8242 | 620.2 | 999999 | |
| 0.45 | 1.35 | 0.38 | 1.15 | -16.91 | 106.78 | 49.44 | 243.53 | 0.8142 | 476.8 | 450.3 | |
| 0.00 | 2.25 | 0.00 | 1.90 | -17.63 | 106.07 | 48.72 | 242.39 | 0.8105 | 428.0 | 466.1 | |
| 1.35 | 2.97 | 1.16 | 2.55 | -18.83 | 106.47 | 49.13 | 241.22 | 0.8188 | -406.9 | -449.9 | |
| 0.00 | 1.26 | 0.00 | 1.07 | -18.60 | 106.19 | 48.84 | 241.34 | 0.8154 | -220.0 | -250.4 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -19.05 | 105.97 | 48.63 | 240.74 | 0.8153 | 268.0 | 287.5 | |
| 0.00 | 1.71 | 0.00 | 1.43 | -18.17 | 105.44 | 48.10 | 241.49 | 0.8070 | 558.0 | 462.0 | |
| 0.00 | 0.81 | 0.00 | 0.69 | -19.26 | 105.71 | 48.37 | 240.38 | 0.8138 | 294.0 | 287.1 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -17.93 | 104.97 | 47.63 | 241.54 | 0.8017 | -499.0 | -469.3 | |
| 4.68 | 8.56 | 3.88 | 7.09 | -19.70 | 104.39 | 47.05 | 239.24 | 0.8041 | -575.5 | -381.6 | |
| 1.62 | 227.49 | 1.29 | 177.24 | -18.67 | 102.89 | 45.55 | 239.67 | 0.7858 | -181.2 | -354.1 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -17.37 | 102.46 | 45.12 | 240.96 | 0.7758 | -448.0 | -368.7 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -19.26 | 102.82 | 45.48 | 238.95 | 0.7880 | -255.0 | -191.6 | |
| 1.26 | -15.00 | 1.00 | -15.00 | -18.71 | 102.58 | 45.24 | 239.46 | 0.7832 | -388.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.15 | -19.45 | 102.71 | 45.37 | 238.67 | 0.7878 | -324.0 | -275.6 | |
| 0.54 | 1.26 | 0.44 | 1.02 | -19.97 | 102.85 | 45.51 | 238.16 | 0.7915 | -384.3 | -238.8 | |
| 3.06 | -15.00 | 2.39 | -15.00 | -18.12 | 101.98 | 44.64 | 239.82 | 0.7747 | -740.0 | 999999 | |
| 10.27 | -15.00 | 8.08 | -15.00 | -18.73 | 102.09 | 44.75 | 239.18 | 0.7787 | -575.1 | 999999 | |
| 31.53 | -15.00 | 24.49 | -15.00 | -18.48 | 101.56 | 44.22 | 239.18 | 0.7725 | -1015.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
