groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12139 80.00 392.79 40.03 196.57 14.07 55.88 -0.91 349.65 0.1395 -187.5 -116.8


previous   or   next   observation for the same group / back to the solar disc

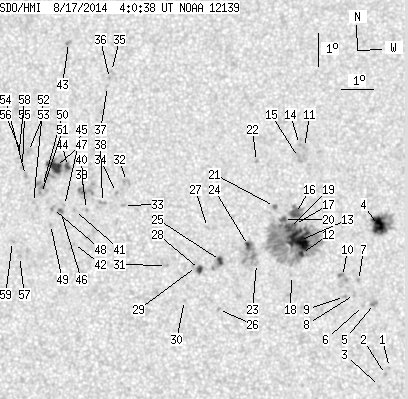

SDO HMI 2014-08-17 04:00:38 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.17 0.00 0.58 9.69 60.36 3.57 310.06 0.0806 -906.0 -709.0
2 0.00 1.26 0.00 0.63 9.48 60.24 3.45 308.95 0.0766 -868.0 -708.7
3 0.00 0.99 0.00 0.49 9.11 60.05 3.26 306.54 0.0701 -894.0 -774.5
4 16.58 35.77 8.29 17.90 14.02 60.08 3.29 336.30 0.1392 -1244.7 -499.6
5 0.00 3.51 0.00 1.75 11.64 59.92 3.13 327.98 0.1013 -942.0 -850.7
6 0.00 1.44 0.00 0.72 11.58 59.58 2.79 330.57 0.0974 -769.0 -548.2
7 0.00 1.35 0.00 0.67 12.34 59.44 2.64 335.26 0.1081 -868.0 -756.0
8 0.00 2.07 0.00 1.03 11.92 59.31 2.51 334.59 0.1004 -887.0 -660.0
9 0.00 1.53 0.00 0.76 11.86 59.00 2.20 337.15 0.0973 -1017.0 -820.0
10 0.00 4.78 0.00 2.38 12.47 58.94 2.15 339.89 0.1068 -586.0 -780.1
11 0.00 0.63 0.00 0.32 16.42 57.78 0.99 354.39 0.1698 -911.0 -748.0
12 2.43 192.92 1.21 96.28 13.18 57.67 0.87 352.44 0.1136 -1039.6 -477.3
13 26.22 -12.00 13.08 -12.00 13.57 57.61 0.81 353.37 0.1203 -1334.8 999999
14 0.00 1.44 0.00 0.72 16.52 57.62 0.83 355.33 0.1711 -823.0 -645.4
15 0.00 4.14 0.00 2.08 16.12 57.59 0.80 355.32 0.1642 -855.0 -823.8
16 5.23 -12.00 2.61 -12.00 14.40 57.49 0.69 354.98 0.1344 -1010.3 999999
17 0.63 -12.00 0.32 -12.00 14.06 57.45 0.66 354.99 0.1285 -1069.4 999999
18 0.00 1.17 0.00 0.58 12.51 57.35 0.56 354.56 0.1013 -789.0 -481.7
19 5.59 -12.00 2.79 -12.00 13.94 57.30 0.50 356.11 0.1262 -1128.2 999999
20 1.53 -12.00 0.77 -12.00 14.22 57.11 0.32 357.64 0.1308 -881.6 999999
21 0.00 2.52 0.00 1.26 14.62 56.83 0.04 359.75 0.1376 -942.0 -772.0
22 0.00 1.26 0.00 0.63 16.00 56.26 -0.53 3.17 0.1618 -823.0 -607.1
23 0.00 1.89 0.00 0.94 12.87 56.27 -0.53 4.80 0.1077 696.0 662.5
24 2.34 20.90 1.17 10.42 13.42 56.02 -0.78 6.47 0.1176 665.8 324.2
25 2.88 8.56 1.44 4.27 12.96 55.14 -1.65 14.50 0.1125 899.4 -162.2
26 0.00 1.53 0.00 0.76 11.47 55.09 -1.70 19.46 0.0878 788.0 559.4
27 0.00 1.62 0.00 0.81 13.97 54.73 -2.06 15.50 0.1312 -637.0 -525.2
28 2.61 4.33 1.30 2.16 12.69 54.49 -2.30 20.70 0.1113 -1079.7 -748.3
29 0.00 0.90 0.00 0.45 12.78 54.40 -2.39 21.17 0.1134 -589.0 -700.2
30 0.00 1.35 0.00 0.67 11.74 54.03 -2.76 28.38 0.0996 696.0 499.5
31 0.00 1.26 0.00 0.63 12.80 53.46 -3.33 28.16 0.1205 946.0 762.7
32 0.00 4.42 0.00 2.22 15.37 52.17 -4.63 27.36 0.1700 541.0 619.1
33 0.00 1.26 0.00 0.63 14.63 52.09 -4.71 29.98 0.1596 848.0 693.6
34 0.00 1.53 0.00 0.77 15.03 51.86 -4.93 29.90 0.1674 982.0 783.2
35 0.00 2.70 0.00 1.37 18.76 51.60 -5.19 22.32 0.2265 665.0 589.2
36 0.00 1.08 0.00 0.55 18.54 51.55 -5.25 22.94 0.2235 907.0 757.2
37 0.00 1.08 0.00 0.55 18.29 51.49 -5.30 23.63 0.2200 526.0 483.8
38 0.00 3.15 0.00 1.58 14.72 51.42 -5.37 33.03 0.1668 831.0 755.6
39 0.00 1.08 0.00 0.54 14.50 50.93 -5.87 36.15 0.1686 966.0 826.6
40 0.54 11.35 0.27 5.71 15.05 50.82 -5.98 34.73 0.1773 1244.7 909.1
41 0.00 1.35 0.00 0.68 14.46 50.55 -6.24 37.97 0.1720 912.0 704.1
42 0.00 1.08 0.00 0.54 13.45 50.54 -6.25 42.02 0.1589 846.0 663.7
43 0.00 2.25 0.00 1.15 19.64 50.18 -6.61 25.83 0.2500 878.0 702.1
44 1.98 31.09 1.00 15.70 15.81 50.29 -6.51 34.55 0.1931 999.6 765.6
45 0.00 0.63 0.00 0.32 14.61 50.23 -6.56 38.79 0.1774 821.0 627.0
46 0.54 3.33 0.27 1.68 14.46 50.11 -6.69 39.87 0.1767 1240.0 955.4
47 10.54 -44.00 5.33 -44.00 15.80 49.91 -6.89 36.08 0.1968 1122.8 999999
48 0.00 2.07 0.00 1.04 14.51 49.85 -6.94 40.69 0.1803 982.0 869.8
49 0.00 0.90 0.00 0.45 14.02 49.80 -6.99 42.78 0.1746 982.0 822.4
50 0.36 7.03 0.18 3.55 15.18 49.51 -7.28 39.61 0.1926 1281.8 869.4
51 0.00 2.25 0.00 1.14 14.97 49.49 -7.30 40.45 0.1901 758.0 843.5
52 0.00 0.72 0.00 0.36 14.69 49.25 -7.55 42.38 0.1894 716.0 602.1
53 0.00 2.43 0.00 1.23 16.25 49.03 -7.76 37.95 0.2118 966.0 660.0
54 0.00 2.61 0.00 1.32 15.51 48.96 -7.83 40.52 0.2029 813.0 679.3
55 0.00 1.80 0.00 0.91 15.79 48.86 -7.94 40.00 0.2076 963.0 697.4
56 0.00 0.90 0.00 0.46 16.22 48.81 -7.98 38.82 0.2137 800.0 689.3
57 0.00 1.80 0.00 0.91 13.03 48.86 -7.94 50.55 0.1750 806.0 690.0
58 0.00 1.08 0.00 0.55 16.06 48.72 -8.07 39.61 0.2127 637.0 462.1
59 0.00 1.53 0.00 0.77 13.49 48.62 -8.17 49.36 0.1829 918.0 745.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
