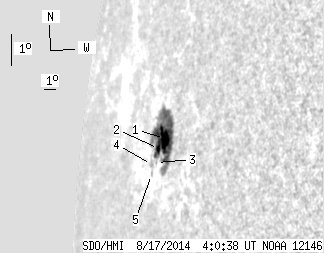

SDO HMI 2014-08-17 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.95 | 97.85 | 26.74 | 164.78 | 8.17 | 343.25 | -73.54 | 83.50 | 0.9567 | -345.6 | -160.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.16 | 93.35 | 21.94 | 156.82 | 8.28 | 343.38 | -73.41 | 83.39 | 0.9560 | -503.1 | -179.8 | |
| 2.79 | -1.00 | 4.80 | -1.00 | 7.92 | 342.89 | -73.90 | 83.73 | 0.9586 | 129.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.47 | 7.49 | 342.87 | -73.92 | 84.18 | 0.9589 | -129.0 | -135.3 | |
| 0.00 | 2.52 | 0.00 | 4.48 | 7.37 | 342.36 | -74.44 | 84.26 | 0.9614 | 353.0 | 283.7 | |
| 0.00 | 1.71 | 0.00 | 3.01 | 7.07 | 342.49 | -74.30 | 84.57 | 0.9609 | -88.0 | -1.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
