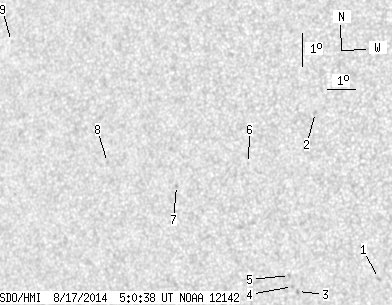

SDO HMI 2014-08-17 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.60 | 0.00 | 7.20 | 8.19 | 26.72 | -29.52 | 85.55 | 0.4912 | -267.0 | -260.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.08 | 6.35 | 31.30 | -24.95 | 89.45 | 0.4210 | -703.0 | -558.9 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 11.28 | 28.76 | -27.48 | 78.51 | 0.4637 | -747.0 | -596.5 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 5.81 | 28.56 | -27.68 | 90.35 | 0.4641 | -886.0 | -695.9 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 5.96 | 28.38 | -27.86 | 90.02 | 0.4667 | -711.0 | -550.8 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 6.28 | 28.26 | -27.99 | 89.31 | 0.4684 | -623.0 | -547.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 9.60 | 26.57 | -29.67 | 82.41 | 0.4944 | -553.0 | -418.8 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 8.78 | 24.06 | -32.18 | 84.20 | 0.5311 | 763.0 | 596.7 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 9.32 | 21.46 | -34.78 | 83.35 | 0.5689 | 535.0 | 357.7 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 12.73 | 17.24 | -39.00 | 78.05 | 0.6297 | 522.0 | 448.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
