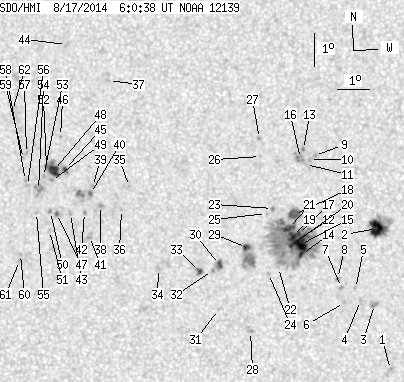

SDO HMI 2014-08-17 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.76 | 365.71 | 38.42 | 182.99 | 14.08 | 56.17 | 0.47 | 351.92 | 0.1392 | -228.3 | -157.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.12 | 9.71 | 60.44 | 4.74 | 302.60 | 0.0972 | -974.0 | -744.6 | |
| 15.14 | 35.87 | 7.58 | 17.97 | 14.01 | 60.08 | 4.38 | 329.67 | 0.1476 | -1309.9 | -519.8 | |
| 0.00 | 5.32 | 0.00 | 2.65 | 11.69 | 59.98 | 4.28 | 319.83 | 0.1138 | -928.0 | -833.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.82 | 59.54 | 3.85 | 323.49 | 0.1109 | -971.0 | -766.0 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 12.18 | 59.39 | 3.70 | 326.46 | 0.1146 | -879.0 | -653.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.76 | 59.05 | 3.35 | 326.88 | 0.1051 | -942.0 | -823.3 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 12.22 | 58.96 | 3.26 | 329.81 | 0.1111 | -1010.0 | -795.5 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 12.49 | 58.84 | 3.14 | 331.94 | 0.1142 | -940.0 | -804.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 16.26 | 58.17 | 2.47 | 345.96 | 0.1714 | -826.0 | -666.1 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.14 | 58.01 | 2.31 | 346.66 | 0.1687 | -956.0 | -786.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.99 | 57.88 | 2.18 | 347.17 | 0.1656 | -889.0 | -710.4 | |
| 3.06 | 182.22 | 1.53 | 90.98 | 13.81 | 57.82 | 2.13 | 343.69 | 0.1289 | -1060.7 | -477.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 16.45 | 57.82 | 2.13 | 348.10 | 0.1732 | -948.0 | -830.8 | |
| 2.79 | -12.00 | 1.39 | -12.00 | 13.23 | 57.72 | 2.03 | 343.06 | 0.1188 | -1123.3 | 999999 | |
| 15.41 | -12.00 | 7.69 | -12.00 | 13.54 | 57.70 | 2.00 | 344.02 | 0.1237 | -1459.0 | 999999 | |
| 0.00 | 5.86 | 0.00 | 2.94 | 16.17 | 57.72 | 2.03 | 348.29 | 0.1682 | -888.0 | -953.2 | |
| 2.07 | -12.00 | 1.04 | -12.00 | 13.87 | 57.64 | 1.94 | 345.18 | 0.1291 | -1164.0 | 999999 | |
| 6.49 | -12.00 | 3.25 | -12.00 | 14.46 | 57.52 | 1.82 | 347.10 | 0.1384 | -971.5 | 999999 | |
| 6.49 | -12.00 | 3.24 | -12.00 | 13.78 | 57.45 | 1.75 | 346.39 | 0.1267 | -1319.0 | 999999 | |
| 1.62 | -12.00 | 0.81 | -12.00 | 13.51 | 57.38 | 1.69 | 346.35 | 0.1218 | -1145.4 | 999999 | |
| 5.41 | -12.00 | 2.70 | -12.00 | 14.03 | 57.33 | 1.63 | 347.74 | 0.1304 | -1082.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 12.84 | 57.00 | 1.31 | 348.17 | 0.1090 | -40.0 | -46.8 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 14.64 | 56.83 | 1.13 | 352.09 | 0.1394 | -982.0 | -804.9 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 12.66 | 56.69 | 1.00 | 350.66 | 0.1049 | 730.0 | 541.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.49 | 56.64 | 0.94 | 353.26 | 0.1364 | -686.0 | -526.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 16.24 | 56.46 | 0.76 | 355.57 | 0.1663 | -742.0 | -532.8 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 16.80 | 56.43 | 0.73 | 355.98 | 0.1758 | -921.0 | -745.2 | |
| 0.00 | 2.25 | 0.00 | 1.12 | 10.89 | 56.13 | 0.43 | 354.18 | 0.0730 | -893.0 | -760.0 | |
| 2.70 | 21.72 | 1.35 | 10.83 | 13.45 | 56.01 | 0.31 | 357.40 | 0.1175 | 681.1 | 438.3 | |
| 2.25 | 5.86 | 1.12 | 2.92 | 12.93 | 55.17 | -0.53 | 4.77 | 0.1087 | 915.3 | 336.9 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 11.56 | 55.14 | -0.56 | 6.49 | 0.0849 | 754.0 | 554.4 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 12.75 | 54.95 | -0.75 | 6.93 | 0.1059 | -964.0 | -767.4 | |
| 1.80 | 3.69 | 0.90 | 1.84 | 12.72 | 54.55 | -1.15 | 10.66 | 0.1065 | -1153.7 | -784.0 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 12.81 | 53.27 | -2.43 | 21.34 | 0.1141 | 939.0 | 561.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.31 | 52.33 | -3.37 | 20.78 | 0.1603 | 583.0 | 552.1 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 14.61 | 52.09 | -3.61 | 23.95 | 0.1506 | 796.0 | 656.0 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 18.58 | 51.60 | -4.09 | 18.24 | 0.2172 | 871.0 | 748.8 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 14.72 | 51.43 | -4.27 | 27.35 | 0.1574 | 994.0 | 864.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 15.31 | 51.17 | -4.53 | 27.05 | 0.1683 | 889.0 | 726.8 | |
| 0.72 | 11.17 | 0.36 | 5.61 | 15.09 | 51.11 | -4.59 | 27.97 | 0.1655 | 1062.2 | 903.7 | |
| 0.00 | 3.51 | 0.00 | 1.76 | 13.77 | 51.10 | -4.60 | 32.38 | 0.1460 | 722.0 | 749.4 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 14.51 | 50.93 | -4.77 | 30.71 | 0.1583 | 1048.0 | 885.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 14.47 | 50.49 | -5.21 | 33.07 | 0.1618 | 964.0 | 789.3 | |
| 0.00 | 2.52 | 0.00 | 1.29 | 19.69 | 50.22 | -5.48 | 21.83 | 0.2429 | 787.0 | 574.4 | |
| 1.62 | 21.63 | 0.82 | 10.90 | 15.82 | 50.27 | -5.43 | 29.91 | 0.1834 | 1038.8 | 724.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.83 | 50.11 | -5.58 | 27.92 | 0.1998 | 961.0 | 733.4 | |
| 0.63 | 1.89 | 0.32 | 0.95 | 14.47 | 50.05 | -5.65 | 35.23 | 0.1660 | 1223.9 | 987.7 | |
| 8.29 | -45.00 | 4.18 | -45.00 | 15.79 | 49.92 | -5.78 | 31.55 | 0.1860 | 1192.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 15.48 | 49.87 | -5.83 | 32.72 | 0.1820 | 1073.0 | 879.7 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 14.53 | 49.86 | -5.84 | 35.90 | 0.1687 | 1100.0 | 926.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 13.94 | 49.84 | -5.86 | 38.17 | 0.1610 | 778.0 | 529.4 | |
| 0.27 | -45.00 | 0.14 | -45.00 | 15.91 | 49.69 | -6.00 | 32.17 | 0.1897 | 873.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 15.60 | 49.61 | -6.09 | 33.46 | 0.1861 | 844.0 | 715.9 | |
| 0.00 | 7.66 | 0.00 | 3.86 | 15.20 | 49.46 | -6.24 | 35.37 | 0.1819 | 1103.0 | 955.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.49 | 49.42 | -6.28 | 38.01 | 0.1728 | 821.0 | 651.8 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 15.32 | 49.11 | -6.59 | 36.45 | 0.1871 | 698.0 | 610.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.30 | 49.05 | -6.65 | 33.69 | 0.2013 | 974.0 | 845.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.47 | 49.04 | -6.66 | 36.23 | 0.1899 | 841.0 | 695.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.14 | 48.96 | -6.74 | 34.49 | 0.2000 | 868.0 | 737.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 13.20 | 48.95 | -6.75 | 45.28 | 0.1617 | 859.0 | 594.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 13.02 | 48.92 | -6.77 | 46.23 | 0.1599 | 871.0 | 748.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 17.62 | 48.55 | -7.15 | 32.02 | 0.2246 | 803.0 | 672.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
