SDO HMI 2014-08-17 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.47 | 107.87 | 29.90 | 166.24 | 8.17 | 343.23 | -71.92 | 83.62 | 0.9482 | -356.8 | -150.8 | |
|
previous
or next observation for the same group /

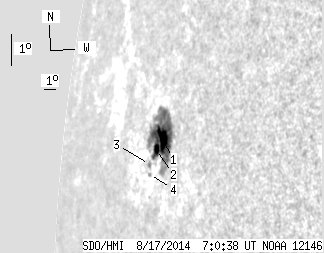

back to the solar disc SDO HMI 2014-08-17 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.60 | 103.82 | 22.29 | 159.73 | 8.31 | 343.37 | -71.78 | 83.49 | 0.9474 | -561.6 | -166.0 | |
| 4.87 | -1.00 | 7.61 | -1.00 | 7.92 | 342.93 | -72.22 | 83.86 | 0.9499 | 115.5 | 999999 | |
| 0.00 | 2.52 | 0.00 | 4.06 | 7.41 | 342.43 | -72.72 | 84.37 | 0.9528 | 326.0 | 275.1 | |
| 0.00 | 1.53 | 0.00 | 2.45 | 7.11 | 342.55 | -72.60 | 84.68 | 0.9523 | -70.0 | -47.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
