SDO HMI 2014-08-17 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.57 | 375.85 | 39.37 | 188.28 | 14.12 | 56.23 | 2.17 | 343.02 | 0.1451 | -255.2 | -181.0 | |
|
previous
or next observation for the same group /

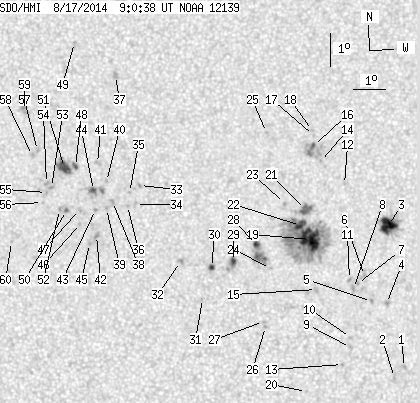

back to the solar disc SDO HMI 2014-08-17 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 0.94 | 9.69 | 60.53 | 6.47 | 295.13 | 0.1233 | -900.0 | -776.1 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 9.39 | 60.21 | 6.16 | 293.87 | 0.1163 | -897.0 | -678.8 | |
| 17.03 | 31.54 | 8.55 | 15.84 | 14.02 | 60.13 | 6.08 | 321.10 | 0.1644 | -1239.5 | -537.2 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 11.64 | 60.01 | 5.96 | 310.25 | 0.1338 | -1090.0 | -845.8 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 11.71 | 59.54 | 5.49 | 312.91 | 0.1285 | -1072.0 | -841.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.50 | 59.34 | 5.29 | 318.26 | 0.1358 | -923.0 | -745.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.26 | 59.12 | 5.07 | 318.24 | 0.1302 | -950.0 | -789.1 | |
| 0.00 | 3.06 | 0.00 | 1.53 | 12.11 | 58.99 | 4.94 | 318.16 | 0.1268 | -1100.0 | -829.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 10.31 | 58.87 | 4.81 | 307.24 | 0.1042 | -833.0 | -520.4 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 10.62 | 58.87 | 4.82 | 309.50 | 0.1075 | -865.0 | -675.8 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 12.38 | 58.87 | 4.82 | 320.28 | 0.1290 | -1079.0 | -804.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.29 | 58.78 | 4.73 | 331.94 | 0.1697 | 509.0 | 312.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.80 | 58.61 | 4.56 | 304.47 | 0.0954 | -921.0 | -761.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.01 | 58.04 | 3.98 | 337.51 | 0.1754 | -863.0 | -723.5 | |
| 0.00 | 3.24 | 0.00 | 1.62 | 12.09 | 57.84 | 3.79 | 325.37 | 0.1141 | -803.0 | -637.3 | |
| 0.81 | 18.65 | 0.41 | 9.39 | 16.50 | 57.83 | 3.77 | 339.62 | 0.1819 | -967.7 | -870.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 16.81 | 57.83 | 3.78 | 340.18 | 0.1869 | -776.0 | -604.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.96 | 57.80 | 3.75 | 340.61 | 0.1893 | -655.0 | -564.2 | |
| 30.28 | 166.44 | 15.14 | 83.21 | 13.62 | 57.68 | 3.62 | 332.89 | 0.1354 | -1324.7 | -479.4 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 8.99 | 57.49 | 3.44 | 303.69 | 0.0715 | -769.0 | -591.2 | |
| 5.05 | 11.71 | 2.53 | 5.87 | 14.54 | 57.54 | 3.48 | 336.60 | 0.1487 | -996.1 | -768.1 | |
| 6.49 | -19.00 | 3.25 | -19.00 | 14.05 | 57.37 | 3.32 | 336.22 | 0.1399 | -1083.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 14.73 | 56.88 | 2.83 | 341.07 | 0.1477 | -888.0 | -752.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.74 | 56.42 | 2.36 | 338.97 | 0.1126 | 552.0 | 410.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.91 | 56.34 | 2.29 | 347.80 | 0.1816 | -811.0 | -668.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.97 | 56.25 | 2.19 | 333.08 | 0.0833 | -1075.0 | -854.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 11.13 | 56.18 | 2.13 | 334.53 | 0.0852 | -741.0 | -482.0 | |
| 2.43 | 22.17 | 1.21 | 11.06 | 13.48 | 55.99 | 1.93 | 344.37 | 0.1224 | 698.7 | 448.7 | |
| 2.34 | 7.75 | 1.17 | 3.86 | 12.96 | 55.27 | 1.21 | 349.22 | 0.1108 | 892.9 | -103.6 | |
| 1.98 | 3.42 | 0.99 | 1.71 | 12.78 | 54.58 | 0.53 | 355.12 | 0.1061 | -1111.1 | -828.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 11.83 | 54.30 | 0.25 | 357.30 | 0.0893 | 898.0 | 607.1 | |
| 0.00 | 2.97 | 0.00 | 1.48 | 12.96 | 53.62 | -0.44 | 3.93 | 0.1092 | 920.0 | 774.7 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 15.29 | 52.32 | -1.73 | 11.08 | 0.1522 | 843.0 | 675.9 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 14.70 | 52.20 | -1.85 | 12.70 | 0.1428 | 667.0 | 636.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.07 | 52.01 | -2.04 | 13.35 | 0.1497 | 933.0 | 690.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 14.67 | 51.95 | -2.10 | 14.41 | 0.1432 | 859.0 | 692.8 | |
| 0.00 | 4.06 | 0.00 | 2.06 | 18.68 | 51.53 | -2.53 | 11.40 | 0.2121 | 787.0 | 645.4 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 14.79 | 51.48 | -2.57 | 17.20 | 0.1475 | 928.0 | 758.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.58 | 51.29 | -2.76 | 18.85 | 0.1449 | 1024.0 | 810.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.41 | 51.28 | -2.77 | 17.16 | 0.1586 | 852.0 | 721.1 | |
| 0.00 | 3.06 | 0.00 | 1.54 | 15.96 | 50.99 | -3.06 | 17.75 | 0.1692 | 607.0 | 621.1 | |
| 0.00 | 3.78 | 0.00 | 1.89 | 13.75 | 50.99 | -3.06 | 23.01 | 0.1334 | 955.0 | 782.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.55 | 50.95 | -3.10 | 21.08 | 0.1464 | 1020.0 | 852.1 | |
| 1.71 | 10.72 | 0.86 | 5.38 | 15.13 | 50.88 | -3.18 | 20.11 | 0.1563 | 1161.2 | 865.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.51 | 50.77 | -3.28 | 25.24 | 0.1311 | 977.0 | 833.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 14.12 | 50.48 | -3.57 | 25.15 | 0.1427 | 790.0 | 621.4 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 14.54 | 50.45 | -3.61 | 24.12 | 0.1497 | 909.0 | 809.5 | |
| 1.35 | 17.39 | 0.68 | 8.75 | 15.86 | 50.30 | -3.75 | 21.64 | 0.1716 | 1000.0 | 792.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.70 | 50.19 | -3.86 | 15.78 | 0.2343 | 849.0 | 716.4 | |
| 0.54 | 1.62 | 0.27 | 0.81 | 14.51 | 50.04 | -4.02 | 26.58 | 0.1522 | 1247.8 | 1014.3 | |
| 8.56 | -48.00 | 4.31 | -48.00 | 15.83 | 49.95 | -4.10 | 23.50 | 0.1734 | 1153.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.54 | 49.82 | -4.24 | 27.72 | 0.1544 | 972.0 | 768.0 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 15.21 | 49.55 | -4.50 | 27.14 | 0.1667 | 1223.0 | 966.2 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 15.33 | 49.39 | -4.66 | 27.61 | 0.1698 | 988.0 | 833.0 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 15.06 | 49.40 | -4.66 | 28.38 | 0.1656 | 968.0 | 753.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 14.75 | 49.28 | -4.77 | 29.94 | 0.1620 | 822.0 | 661.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.35 | 49.09 | -4.97 | 26.42 | 0.1877 | 949.0 | 764.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.19 | 48.93 | -5.12 | 27.51 | 0.1865 | 958.0 | 825.6 | |
| 0.00 | 6.13 | 0.00 | 3.10 | 17.58 | 48.64 | -5.42 | 25.52 | 0.2098 | 724.0 | 701.6 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 13.55 | 48.33 | -5.72 | 39.14 | 0.1543 | 756.0 | 587.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
