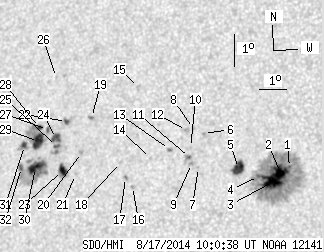

SDO HMI 2014-08-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.04 | 370.41 | 49.72 | 211.92 | 16.15 | 24.64 | -28.87 | 68.77 | 0.4978 | -106.6 | -104.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 197.88 | 0.15 | 109.40 | 16.31 | 28.67 | -24.84 | 66.33 | 0.4420 | -1011.0 | -390.1 | |
| 14.87 | -1.00 | 8.22 | -1.00 | 16.14 | 28.38 | -25.13 | 66.89 | 0.4453 | -1281.3 | 999999 | |
| 17.39 | -1.00 | 9.63 | -1.00 | 15.82 | 28.11 | -25.40 | 67.76 | 0.4477 | -1175.5 | 999999 | |
| 0.27 | -1.00 | 0.15 | -1.00 | 15.98 | 27.63 | -25.88 | 67.72 | 0.4553 | -358.7 | 999999 | |
| 9.73 | 12.89 | 5.45 | 7.21 | 16.19 | 26.89 | -26.61 | 67.73 | 0.4668 | -926.0 | -615.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 17.20 | 25.49 | -28.02 | 66.54 | 0.4911 | -907.0 | -711.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 16.15 | 25.47 | -28.03 | 68.61 | 0.4867 | -698.0 | -636.9 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 17.34 | 25.10 | -28.40 | 66.50 | 0.4971 | -708.0 | -563.0 | |
| 0.00 | 1.98 | 0.00 | 1.13 | 16.26 | 25.21 | -28.30 | 68.54 | 0.4910 | -895.0 | -750.0 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 16.75 | 25.09 | -28.41 | 67.65 | 0.4946 | -819.0 | -704.0 | |
| 0.81 | 3.87 | 0.46 | 2.20 | 16.44 | 25.11 | -28.40 | 68.24 | 0.4931 | -913.6 | -701.3 | |
| 0.00 | 3.69 | 0.00 | 2.11 | 17.26 | 24.86 | -28.64 | 66.78 | 0.5001 | -626.0 | -547.9 | |
| 0.00 | 1.98 | 0.00 | 1.14 | 16.65 | 24.35 | -29.16 | 68.24 | 0.5046 | -703.0 | -604.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 16.33 | 23.71 | -29.80 | 69.15 | 0.5123 | -312.0 | -193.3 | |
| 0.00 | 2.88 | 0.00 | 1.69 | 18.49 | 22.87 | -30.63 | 65.60 | 0.5327 | -465.0 | -521.7 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 15.44 | 23.20 | -30.31 | 71.08 | 0.5162 | 874.0 | 673.6 | |
| 0.00 | 1.71 | 0.00 | 0.99 | 15.70 | 22.90 | -30.61 | 70.71 | 0.5213 | 868.0 | 786.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 16.15 | 22.64 | -30.87 | 69.99 | 0.5265 | 683.0 | 540.3 | |
| 0.45 | 1.98 | 0.27 | 1.17 | 17.47 | 21.32 | -32.19 | 68.19 | 0.5494 | 860.4 | 760.8 | |
| 0.00 | 2.25 | 0.00 | 1.33 | 16.37 | 21.15 | -32.36 | 70.20 | 0.5478 | 893.0 | 734.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 15.69 | 21.05 | -32.46 | 71.47 | 0.5470 | 687.0 | 649.8 | |
| 1.62 | 4.87 | 0.97 | 2.91 | 17.29 | 20.41 | -33.10 | 68.89 | 0.5611 | 856.1 | 675.9 | |
| 5.77 | 10.09 | 3.43 | 6.00 | 15.78 | 20.54 | -32.96 | 71.49 | 0.5543 | 947.8 | 606.6 | |
| 5.05 | 15.05 | 3.02 | 9.00 | 16.74 | 20.13 | -33.37 | 69.95 | 0.5629 | 890.7 | 744.6 | |
| 1.44 | -24.00 | 0.86 | -24.00 | 16.50 | 20.18 | -33.32 | 70.36 | 0.5614 | 968.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 18.62 | 19.74 | -33.77 | 66.91 | 0.5748 | 527.0 | 463.1 | |
| 0.72 | 2.70 | 0.43 | 1.63 | 17.00 | 19.74 | -33.77 | 69.66 | 0.5690 | 763.5 | 584.8 | |
| 2.16 | 33.25 | 1.31 | 20.07 | 17.04 | 19.42 | -34.08 | 69.71 | 0.5734 | 406.2 | 204.3 | |
| 10.99 | -28.00 | 6.63 | -28.00 | 16.61 | 19.47 | -34.03 | 70.43 | 0.5713 | 906.1 | 999999 | |
| 10.36 | 57.94 | 6.23 | 34.86 | 15.81 | 19.52 | -33.99 | 71.79 | 0.5684 | 1004.4 | 421.9 | |
| 2.61 | 6.40 | 1.58 | 3.88 | 16.45 | 18.97 | -34.54 | 70.87 | 0.5777 | 601.6 | 406.1 | |
| 1.53 | -30.00 | 0.93 | -30.00 | 15.77 | 18.99 | -34.52 | 72.03 | 0.5755 | 473.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
