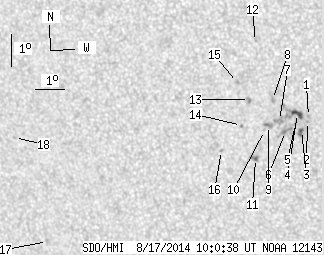

SDO HMI 2014-08-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.95 | 53.06 | 2.71 | 29.33 | -4.72 | 30.02 | -23.49 | 115.48 | 0.4414 | 444.2 | 370.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | -4.34 | 31.55 | -21.96 | 116.22 | 0.4173 | 931.0 | 736.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -4.50 | 31.51 | -21.99 | 116.52 | 0.4190 | 894.0 | 813.4 | |
| 0.90 | 4.24 | 0.49 | 2.32 | -4.78 | 31.30 | -22.20 | 116.90 | 0.4240 | 975.6 | 769.9 | |
| 3.42 | 13.52 | 1.87 | 7.39 | -4.26 | 31.19 | -22.32 | 115.68 | 0.4219 | 1108.8 | 735.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -4.57 | 31.11 | -22.39 | 116.26 | 0.4252 | 829.0 | 673.6 | |
| 0.00 | 5.50 | 0.00 | 3.02 | -4.84 | 30.77 | -22.73 | 116.45 | 0.4319 | 386.0 | 147.6 | |
| 0.00 | 5.86 | 0.00 | 3.21 | -4.51 | 30.59 | -22.92 | 115.57 | 0.4321 | 369.0 | 431.7 | |
| 0.00 | 2.16 | 0.00 | 1.19 | -3.87 | 30.38 | -23.13 | 114.02 | 0.4308 | 831.0 | 752.5 | |
| 0.00 | 4.14 | 0.00 | 2.28 | -4.68 | 30.22 | -23.29 | 115.55 | 0.4386 | 862.0 | 496.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -4.84 | 30.08 | -23.43 | 115.75 | 0.4416 | 385.0 | 332.5 | |
| 0.63 | 3.69 | 0.35 | 2.05 | -5.72 | 29.74 | -23.76 | 117.18 | 0.4526 | -926.6 | -754.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -2.10 | 29.86 | -23.65 | 109.74 | 0.4277 | 663.0 | 533.8 | |
| 0.00 | 2.79 | 0.00 | 1.54 | -3.90 | 29.61 | -23.89 | 113.37 | 0.4420 | 939.0 | 695.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -4.72 | 29.32 | -24.19 | 114.77 | 0.4516 | 641.0 | 522.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -3.40 | 29.23 | -24.28 | 111.97 | 0.4444 | 780.0 | 580.2 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -5.53 | 28.61 | -24.89 | 115.70 | 0.4669 | -818.0 | -631.5 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -8.72 | 22.35 | -31.16 | 116.03 | 0.5713 | -668.0 | -495.1 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -5.53 | 21.41 | -32.09 | 110.21 | 0.5656 | -545.0 | -451.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
