SDO HMI 2014-08-17 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.95 | 343.19 | 33.08 | 172.05 | 14.11 | 56.40 | 3.45 | 336.10 | 0.1514 | -261.5 | -218.7 | |
|
previous
or next observation for the same group /

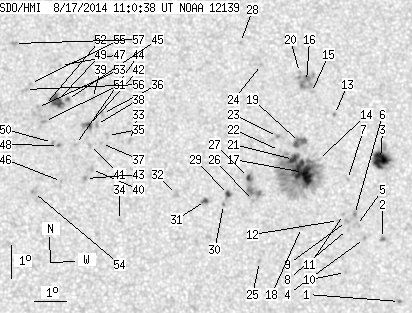

back to the solar disc SDO HMI 2014-08-17 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.69 | 60.58 | 7.62 | 291.90 | 0.1416 | -951.0 | -817.1 | |
| 0.36 | 2.07 | 0.18 | 1.04 | 11.62 | 60.10 | 7.14 | 305.21 | 0.1497 | -1068.2 | -830.3 | |
| 18.20 | 32.53 | 9.16 | 16.37 | 14.03 | 60.11 | 7.15 | 316.61 | 0.1766 | -1212.9 | -428.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.62 | 59.54 | 6.58 | 307.44 | 0.1420 | -1040.0 | -819.9 | |
| 0.00 | 3.51 | 0.00 | 1.76 | 12.02 | 59.30 | 6.34 | 310.68 | 0.1431 | -390.0 | -716.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.36 | 59.24 | 6.29 | 312.69 | 0.1462 | -1012.0 | -905.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.43 | 59.05 | 6.10 | 318.61 | 0.1569 | -866.0 | -657.9 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 11.91 | 59.01 | 6.06 | 311.30 | 0.1381 | -671.0 | -532.1 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 12.15 | 58.99 | 6.03 | 312.75 | 0.1405 | -911.0 | -799.7 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.60 | 58.92 | 5.97 | 303.63 | 0.1233 | -894.0 | -732.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 12.36 | 58.90 | 5.94 | 314.29 | 0.1420 | -980.0 | -751.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.18 | 58.74 | 5.78 | 314.11 | 0.1378 | -878.0 | -687.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 15.43 | 58.70 | 5.74 | 327.54 | 0.1805 | 850.0 | 681.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 14.05 | 58.16 | 5.20 | 325.47 | 0.1559 | -176.0 | -165.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 16.11 | 57.99 | 5.03 | 332.70 | 0.1846 | -825.0 | -648.5 | |
| 0.00 | 19.01 | 0.00 | 9.59 | 16.45 | 57.84 | 4.88 | 334.23 | 0.1887 | -876.0 | -838.2 | |
| 27.03 | 152.44 | 13.53 | 76.30 | 13.66 | 57.68 | 4.72 | 326.52 | 0.1457 | -1327.4 | -502.6 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 11.98 | 57.58 | 4.63 | 319.33 | 0.1216 | -948.0 | -682.1 | |
| 0.00 | 9.82 | 0.00 | 4.93 | 14.58 | 57.57 | 4.62 | 330.35 | 0.1582 | -905.0 | -883.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.73 | 57.62 | 4.67 | 335.86 | 0.1914 | -681.0 | -599.6 | |
| 5.14 | -17.00 | 2.57 | -17.00 | 14.06 | 57.37 | 4.42 | 329.70 | 0.1487 | -1069.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.34 | 56.94 | 3.98 | 333.09 | 0.1494 | -617.0 | -540.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 14.77 | 56.88 | 3.93 | 334.68 | 0.1556 | -959.0 | -719.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 16.99 | 56.42 | 3.47 | 342.02 | 0.1882 | -808.0 | -672.0 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.96 | 56.26 | 3.31 | 322.51 | 0.0935 | -1006.0 | -851.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.82 | 56.10 | 3.15 | 333.25 | 0.1194 | 857.0 | 748.1 | |
| 1.35 | 21.80 | 0.68 | 10.89 | 13.52 | 55.95 | 3.00 | 336.74 | 0.1294 | 796.2 | 453.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.67 | 55.77 | 2.81 | 346.18 | 0.1964 | -683.0 | -511.7 | |
| 1.98 | 5.23 | 0.99 | 2.61 | 13.01 | 55.32 | 2.37 | 339.79 | 0.1170 | 945.9 | 413.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.70 | 55.17 | 2.21 | 340.13 | 0.1111 | -807.0 | -747.5 | |
| 1.44 | 3.24 | 0.72 | 1.62 | 12.83 | 54.61 | 1.65 | 345.19 | 0.1103 | -1094.5 | -770.0 | |
| 0.00 | 3.15 | 0.00 | 1.57 | 13.02 | 53.70 | 0.75 | 353.37 | 0.1106 | 782.0 | 650.9 | |
| 0.00 | 2.52 | 0.00 | 1.26 | 14.67 | 52.24 | -0.72 | 5.03 | 0.1392 | 859.0 | 577.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 12.22 | 51.93 | -1.02 | 10.36 | 0.0977 | 810.0 | 521.1 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 14.82 | 51.55 | -1.41 | 9.60 | 0.1433 | 796.0 | 700.4 | |
| 0.00 | 2.52 | 0.00 | 1.26 | 15.50 | 51.38 | -1.57 | 9.84 | 0.1553 | 678.0 | 574.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.58 | 51.36 | -1.60 | 11.18 | 0.1397 | 918.0 | 749.7 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 15.16 | 51.20 | -1.76 | 11.42 | 0.1501 | 1018.0 | 804.2 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 15.96 | 51.07 | -1.89 | 11.19 | 0.1641 | 946.0 | 766.3 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 13.78 | 51.05 | -1.90 | 14.74 | 0.1274 | 1039.0 | 803.2 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 14.51 | 50.98 | -1.97 | 13.83 | 0.1401 | 908.0 | 712.3 | |
| 2.07 | 5.77 | 1.04 | 2.89 | 15.13 | 50.95 | -2.01 | 13.05 | 0.1505 | 1145.6 | 875.1 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 13.50 | 50.87 | -2.09 | 16.74 | 0.1237 | 988.0 | 800.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.54 | 50.54 | -2.41 | 16.68 | 0.1425 | 951.0 | 879.7 | |
| 0.54 | 15.32 | 0.27 | 7.70 | 15.92 | 50.28 | -2.68 | 15.71 | 0.1667 | 957.3 | 816.9 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 13.41 | 50.12 | -2.84 | 22.50 | 0.1265 | 835.0 | 621.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 16.97 | 50.04 | -2.91 | 15.30 | 0.1851 | 819.0 | 698.9 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 14.51 | 50.01 | -2.95 | 20.17 | 0.1449 | 1084.0 | 962.0 | |
| 7.84 | -45.00 | 3.94 | -45.00 | 15.86 | 49.93 | -3.03 | 17.74 | 0.1674 | 1101.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 14.60 | 49.82 | -3.13 | 21.12 | 0.1475 | 879.0 | 792.0 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 15.24 | 49.56 | -3.40 | 21.09 | 0.1595 | 1104.0 | 868.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.74 | 49.55 | -3.40 | 20.04 | 0.1675 | 616.0 | 488.3 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 15.67 | 49.33 | -3.62 | 21.36 | 0.1678 | 717.0 | 604.4 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 13.07 | 49.25 | -3.71 | 29.69 | 0.1278 | 1012.0 | 893.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 16.41 | 49.10 | -3.86 | 20.98 | 0.1810 | 809.0 | 689.7 | |
| 0.00 | 2.88 | 0.00 | 1.45 | 16.22 | 48.94 | -4.01 | 22.14 | 0.1790 | 936.0 | 751.6 | |
| 0.00 | 2.61 | 0.00 | 1.32 | 17.64 | 48.56 | -4.39 | 21.07 | 0.2039 | 849.0 | 717.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
