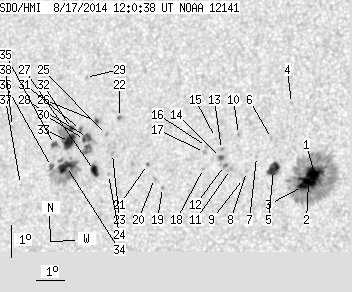

SDO HMI 2014-08-17 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.21 | 360.21 | 48.73 | 204.00 | 16.15 | 24.64 | -27.76 | 68.15 | 0.4822 | -83.7 | -109.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.40 | 188.01 | 8.99 | 103.02 | 16.13 | 28.39 | -24.01 | 66.13 | 0.4293 | -1226.5 | -407.0 | |
| 11.17 | -1.00 | 6.13 | -1.00 | 15.88 | 28.22 | -24.19 | 66.82 | 0.4305 | -1207.6 | 999999 | |
| 4.41 | -1.00 | 2.42 | -1.00 | 15.71 | 28.03 | -24.38 | 67.31 | 0.4324 | -1057.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 18.25 | 27.29 | -25.12 | 62.47 | 0.4564 | -791.0 | -624.7 | |
| 9.46 | 12.52 | 5.24 | 6.94 | 16.19 | 26.96 | -25.45 | 67.00 | 0.4501 | -863.7 | -579.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.14 | 26.75 | -25.65 | 65.15 | 0.4578 | -547.0 | -476.5 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 16.56 | 26.31 | -26.10 | 66.65 | 0.4612 | -644.0 | -418.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.08 | 26.02 | -26.38 | 67.82 | 0.4630 | -550.0 | -455.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 15.86 | 25.95 | -26.46 | 68.32 | 0.4631 | -680.0 | -564.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 17.20 | 25.57 | -26.83 | 65.81 | 0.4746 | -884.0 | -707.0 | |
| 0.00 | 2.70 | 0.00 | 1.52 | 16.11 | 25.45 | -26.95 | 68.09 | 0.4713 | -753.0 | -658.9 | |
| 0.00 | 2.97 | 0.00 | 1.67 | 16.23 | 25.22 | -27.18 | 67.99 | 0.4750 | -849.0 | -762.5 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 16.71 | 25.04 | -27.36 | 67.12 | 0.4798 | -835.0 | -740.5 | |
| 1.26 | 2.88 | 0.71 | 1.62 | 16.46 | 25.04 | -27.36 | 67.62 | 0.4786 | -908.1 | -771.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 17.07 | 24.77 | -27.64 | 66.57 | 0.4852 | -567.0 | -540.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 16.78 | 24.49 | -27.91 | 67.31 | 0.4877 | -716.0 | -570.9 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 16.59 | 24.45 | -27.95 | 67.71 | 0.4875 | -709.0 | -596.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 16.10 | 24.49 | -27.91 | 68.66 | 0.4848 | -551.0 | -395.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 15.44 | 23.12 | -29.29 | 70.64 | 0.5018 | 708.0 | 586.3 | |
| 0.00 | 1.98 | 0.00 | 1.14 | 15.70 | 22.79 | -29.62 | 70.29 | 0.5074 | 853.0 | 665.5 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 16.11 | 22.47 | -29.94 | 69.65 | 0.5135 | 773.0 | 715.9 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 17.49 | 21.19 | -31.22 | 67.69 | 0.5364 | 844.0 | 743.0 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 16.37 | 21.13 | -31.27 | 69.75 | 0.5329 | 765.0 | 655.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 15.72 | 21.10 | -31.31 | 70.96 | 0.5312 | 718.0 | 623.9 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 16.94 | 20.81 | -31.60 | 68.86 | 0.5395 | 841.0 | 752.2 | |
| 1.44 | 2.70 | 0.85 | 1.60 | 17.32 | 20.36 | -32.05 | 68.38 | 0.5470 | 889.9 | 734.0 | |
| 6.22 | 8.92 | 3.65 | 5.24 | 15.81 | 20.56 | -31.84 | 71.00 | 0.5389 | 893.8 | 626.3 | |
| 2.79 | 18.29 | 1.65 | 10.81 | 16.81 | 20.12 | -32.29 | 69.39 | 0.5484 | 854.6 | 734.6 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 18.65 | 19.67 | -32.74 | 66.38 | 0.5613 | 551.0 | 502.3 | |
| 1.80 | -28.00 | 1.07 | -28.00 | 16.74 | 20.02 | -32.39 | 69.56 | 0.5495 | 789.3 | 999999 | |
| 0.81 | 2.16 | 0.48 | 1.28 | 17.04 | 19.81 | -32.59 | 69.12 | 0.5534 | 746.6 | 581.1 | |
| 1.80 | 33.51 | 1.07 | 19.98 | 17.05 | 19.47 | -32.94 | 69.24 | 0.5580 | 477.6 | 185.3 | |
| 12.52 | -32.00 | 7.46 | -32.00 | 16.65 | 19.47 | -32.93 | 69.94 | 0.5566 | 851.2 | 999999 | |
| 11.80 | 55.58 | 7.01 | 33.03 | 15.87 | 19.50 | -32.90 | 71.29 | 0.5537 | 971.1 | 420.9 | |
| 1.80 | 5.22 | 1.08 | 3.13 | 16.52 | 18.93 | -33.48 | 70.37 | 0.5636 | 575.2 | 461.9 | |
| 1.53 | -34.00 | 0.92 | -34.00 | 15.84 | 18.94 | -33.46 | 71.55 | 0.5613 | 424.4 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 15.22 | 17.88 | -34.53 | 72.98 | 0.5741 | 510.0 | 424.2 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 16.97 | 17.22 | -35.19 | 70.22 | 0.5879 | 527.0 | 389.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
