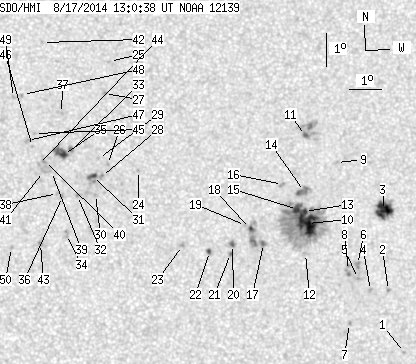

SDO HMI 2014-08-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.65 | 316.37 | 32.49 | 158.84 | 14.17 | 56.35 | 4.50 | 330.63 | 0.1608 | -208.8 | -184.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.67 | 60.62 | 8.77 | 289.27 | 0.1599 | -932.0 | -804.6 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 11.57 | 60.18 | 8.33 | 301.04 | 0.1663 | -967.0 | -753.5 | |
| 17.47 | 26.30 | 8.82 | 13.27 | 14.01 | 60.14 | 8.28 | 312.42 | 0.1902 | -1181.9 | -612.7 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 11.58 | 59.62 | 7.76 | 302.83 | 0.1582 | -926.0 | -756.8 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 11.95 | 59.25 | 7.40 | 306.06 | 0.1566 | -991.0 | -772.5 | |
| 0.00 | 3.42 | 0.00 | 1.72 | 12.37 | 59.23 | 7.38 | 308.32 | 0.1607 | -983.0 | -820.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 10.58 | 58.94 | 7.08 | 299.27 | 0.1396 | -889.0 | -758.8 | |
| 0.00 | 4.86 | 0.00 | 2.44 | 12.20 | 58.95 | 7.09 | 308.49 | 0.1549 | -836.0 | -882.4 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 15.50 | 58.67 | 6.82 | 323.24 | 0.1921 | 712.0 | 392.4 | |
| 28.82 | 146.10 | 14.46 | 73.26 | 13.65 | 57.70 | 5.85 | 320.68 | 0.1570 | -1304.1 | -495.6 | |
| 0.99 | 21.53 | 0.50 | 10.88 | 16.35 | 57.72 | 5.86 | 329.67 | 0.1950 | -1188.6 | -758.5 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 12.73 | 57.62 | 5.76 | 317.00 | 0.1443 | -840.0 | -613.0 | |
| 2.70 | -10.00 | 1.36 | -10.00 | 14.02 | 57.62 | 5.76 | 322.56 | 0.1610 | -1044.7 | 999999 | |
| 0.00 | 9.73 | 0.00 | 4.89 | 14.63 | 57.64 | 5.78 | 324.74 | 0.1696 | -908.0 | -814.4 | |
| 5.31 | -10.00 | 2.67 | -10.00 | 14.08 | 57.40 | 5.55 | 323.85 | 0.1596 | -1075.1 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 14.85 | 56.95 | 5.09 | 328.78 | 0.1663 | -843.0 | -652.1 | |
| 0.00 | 5.04 | 0.00 | 2.52 | 13.05 | 56.31 | 4.46 | 325.55 | 0.1344 | 716.0 | 478.4 | |
| 1.44 | 14.86 | 0.72 | 7.43 | 13.51 | 55.91 | 4.06 | 329.81 | 0.1375 | 780.2 | 477.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 13.61 | 55.76 | 3.90 | 331.10 | 0.1376 | 779.0 | 494.2 | |
| 0.99 | 2.88 | 0.49 | 1.44 | 13.03 | 55.34 | 3.49 | 331.64 | 0.1254 | 1084.3 | 796.1 | |
| 0.36 | 1.89 | 0.18 | 0.94 | 12.76 | 55.28 | 3.42 | 331.01 | 0.1207 | -870.5 | -691.5 | |
| 1.17 | 2.43 | 0.58 | 1.21 | 12.82 | 54.62 | 2.77 | 336.07 | 0.1167 | -1005.0 | -788.3 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 13.01 | 53.78 | 1.93 | 343.30 | 0.1147 | 895.0 | 765.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 15.31 | 52.42 | 0.57 | 356.33 | 0.1501 | 750.0 | 547.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.67 | 51.51 | -0.35 | 1.59 | 0.2078 | 758.0 | 641.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.50 | 51.45 | -0.41 | 2.58 | 0.1531 | 754.0 | 656.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 17.68 | 51.35 | -0.50 | 2.53 | 0.1909 | 800.0 | 666.3 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 15.13 | 51.26 | -0.60 | 3.93 | 0.1469 | 905.0 | 747.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.68 | 51.16 | -0.69 | 4.27 | 0.1566 | 700.0 | 514.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.58 | 51.07 | -0.78 | 5.54 | 0.1377 | 1006.0 | 848.2 | |
| 2.34 | 7.93 | 1.17 | 3.97 | 15.13 | 50.98 | -0.88 | 5.79 | 0.1473 | 1080.3 | 891.0 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 14.55 | 50.51 | -1.35 | 9.51 | 0.1384 | 1114.0 | 831.1 | |
| 0.00 | 2.79 | 0.00 | 1.40 | 15.96 | 50.31 | -1.54 | 9.18 | 0.1631 | 972.0 | 801.9 | |
| 0.00 | 3.24 | 0.00 | 1.62 | 13.35 | 50.17 | -1.68 | 13.94 | 0.1193 | 741.0 | 723.1 | |
| 3.06 | 11.26 | 1.54 | 5.65 | 15.80 | 50.06 | -1.80 | 10.83 | 0.1612 | 1163.3 | 919.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 14.51 | 50.04 | -1.82 | 12.78 | 0.1394 | 1094.0 | 940.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.06 | 49.99 | -1.87 | 9.86 | 0.1828 | 873.0 | 781.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 14.61 | 49.88 | -1.97 | 13.68 | 0.1416 | 905.0 | 763.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.28 | 49.69 | -2.17 | 13.80 | 0.1537 | 649.0 | 579.7 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 15.59 | 49.46 | -2.39 | 14.64 | 0.1598 | 889.0 | 731.4 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 15.28 | 49.43 | -2.42 | 15.33 | 0.1548 | 844.0 | 698.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 19.26 | 49.35 | -2.50 | 10.75 | 0.2218 | 823.0 | 661.4 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 13.07 | 49.36 | -2.49 | 20.99 | 0.1189 | 1137.0 | 905.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 15.49 | 49.27 | -2.58 | 15.90 | 0.1591 | 769.0 | 639.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 16.44 | 49.14 | -2.72 | 15.09 | 0.1756 | 861.0 | 662.2 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 16.04 | 49.08 | -2.78 | 16.05 | 0.1692 | 728.0 | 561.0 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 16.23 | 48.92 | -2.94 | 16.60 | 0.1730 | 792.0 | 760.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.65 | 48.74 | -3.12 | 15.30 | 0.1973 | 782.0 | 679.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 17.55 | 48.45 | -3.40 | 16.77 | 0.1970 | 781.0 | 620.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.95 | 48.46 | -3.40 | 28.05 | 0.1234 | 789.0 | 674.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
