SDO HMI 2014-08-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.16 | 125.11 | 29.19 | 165.36 | 8.22 | 343.26 | -68.60 | 83.83 | 0.9284 | -370.6 | -135.6 | |
|
previous
or next observation for the same group /

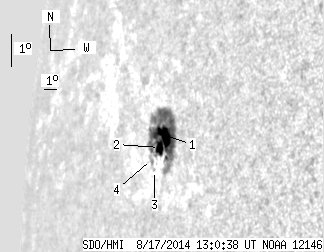

back to the solar disc SDO HMI 2014-08-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.77 | 119.62 | 19.38 | 157.88 | 8.39 | 343.38 | -68.48 | 83.66 | 0.9276 | -542.2 | -155.6 | |
| 7.39 | -1.00 | 9.81 | -1.00 | 7.99 | 343.10 | -68.76 | 84.07 | 0.9295 | -126.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.70 | 7.26 | 342.92 | -68.93 | 84.83 | 0.9310 | -74.0 | 16.1 | |
| 0.00 | 4.23 | 0.00 | 5.78 | 7.56 | 342.56 | -69.30 | 84.48 | 0.9332 | 260.0 | 265.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
