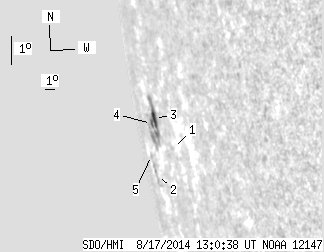

SDO HMI 2014-08-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.66 | 47.38 | 23.01 | 178.84 | -9.85 | 331.02 | -80.84 | 100.96 | 0.9912 | 54.9 | -89.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 3.07 | -9.92 | 334.17 | -77.69 | 101.49 | 0.9829 | -47.0 | -42.2 | |
| 0.00 | 8.65 | 0.00 | 39.19 | -11.32 | 329.75 | -82.11 | 102.24 | 0.9943 | -190.0 | -184.2 | |
| 5.67 | 36.21 | 19.27 | 129.96 | -9.32 | 331.56 | -80.29 | 100.50 | 0.9899 | 146.7 | -45.1 | |
| 0.99 | -3.00 | 3.74 | -3.00 | -9.58 | 330.70 | -81.15 | 100.64 | 0.9920 | -230.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 6.62 | -10.76 | 329.14 | -82.72 | 101.60 | 0.9953 | -302.0 | -263.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
