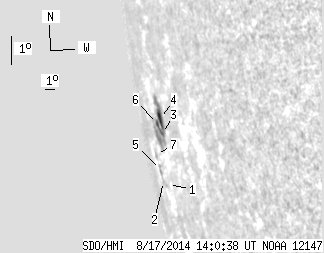

SDO HMI 2014-08-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.27 | 44.12 | 30.06 | 154.99 | -9.77 | 331.05 | -80.26 | 100.95 | 0.9898 | 92.0 | -85.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 2.97 | -11.48 | 330.71 | -80.59 | 102.62 | 0.9913 | -100.0 | -109.1 | |
| 0.00 | 0.99 | 0.00 | 4.21 | -11.51 | 329.63 | -81.67 | 102.50 | 0.9936 | -152.0 | -126.8 | |
| 1.08 | 36.38 | 3.51 | 122.01 | -9.79 | 331.50 | -79.81 | 101.05 | 0.9889 | 121.8 | -42.0 | |
| 6.75 | -3.00 | 21.52 | -3.00 | -9.31 | 331.61 | -79.70 | 100.58 | 0.9884 | 207.4 | 999999 | |
| 0.00 | 3.51 | 0.00 | 14.98 | -11.16 | 329.48 | -81.82 | 102.12 | 0.9938 | -268.0 | -199.7 | |
| 1.44 | -3.00 | 5.03 | -3.00 | -9.56 | 330.81 | -80.50 | 100.71 | 0.9905 | -186.8 | 999999 | |
| 0.00 | 2.43 | 0.00 | 10.82 | -10.72 | 329.18 | -82.12 | 101.64 | 0.9942 | -297.0 | -279.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
