groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12139 68.43 307.09 34.45 154.42 14.01 56.57 5.82 323.83 0.1703 -238.1 -190.3


previous   or   next   observation for the same group / back to the solar disc

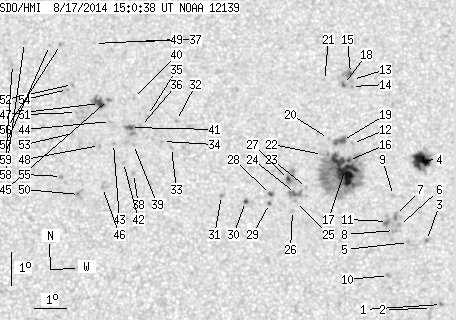

SDO HMI 2014-08-17 15:00:38 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.53 0.00 0.77 9.62 60.61 9.86 287.11 0.1774 -959.0 -833.4
2 0.00 0.99 0.00 0.50 9.51 60.29 9.54 286.95 0.1717 -973.0 -828.2
3 0.00 1.80 0.00 0.91 11.58 60.20 9.45 298.08 0.1832 -936.0 -774.3
4 18.10 29.62 9.16 14.99 14.02 60.14 9.39 309.00 0.2046 -1156.6 -513.0
5 0.00 1.08 0.00 0.54 11.53 59.64 8.89 299.26 0.1743 -998.0 -835.2
6 0.00 2.07 0.00 1.04 12.05 59.37 8.62 302.61 0.1749 -836.0 -711.5
7 0.00 3.15 0.00 1.59 12.36 59.26 8.51 304.44 0.1760 -953.0 -800.7
8 0.00 2.70 0.00 1.36 11.90 59.21 8.46 302.34 0.1712 -819.0 -808.9
9 0.00 1.44 0.00 0.73 12.97 59.22 8.47 307.40 0.1814 -703.0 -507.0
10 0.00 1.80 0.00 0.90 10.53 58.98 8.23 295.57 0.1568 -1075.0 -827.8
11 0.00 6.12 0.00 3.08 12.18 59.00 8.25 304.37 0.1707 -1075.0 -893.6
12 0.00 1.62 0.00 0.82 14.58 57.98 7.23 318.42 0.1843 -724.0 -535.3
13 0.00 1.89 0.00 0.96 16.54 58.05 7.30 324.55 0.2110 -480.0 -502.5
14 0.00 1.08 0.00 0.55 16.33 58.01 7.26 324.08 0.2077 -928.0 -795.1
15 0.63 7.11 0.32 3.61 16.73 58.00 7.25 325.28 0.2130 -974.6 -792.0
16 0.99 145.87 0.50 73.30 14.06 57.84 7.09 316.99 0.1762 -824.6 -477.8
17 37.28 -16.00 18.74 -16.00 13.76 57.70 6.95 316.29 0.1709 -1248.3 999999
18 0.36 2.16 0.18 1.09 16.39 57.76 7.01 325.21 0.2061 -1155.0 -1016.8
19 1.71 7.38 0.86 3.72 14.67 57.67 6.92 320.00 0.1821 -934.7 -877.2
20 0.00 1.17 0.00 0.59 14.74 57.23 6.48 322.06 0.1782 -698.0 -577.0
21 0.00 0.81 0.00 0.41 16.52 57.16 6.41 327.91 0.2023 -358.0 -288.6
22 0.00 1.53 0.00 0.77 14.25 57.02 6.27 321.14 0.1696 -537.0 -480.8
23 0.00 1.26 0.00 0.63 13.25 56.49 5.74 319.49 0.1506 564.0 395.6
24 0.00 8.10 0.00 4.06 13.07 56.15 5.39 320.43 0.1444 848.0 763.1
25 0.00 1.17 0.00 0.59 12.83 56.14 5.39 319.33 0.1412 828.0 573.2
26 0.00 1.44 0.00 0.72 12.56 56.04 5.29 318.53 0.1365 829.0 601.6
27 0.99 10.90 0.50 5.46 13.50 55.94 5.19 323.38 0.1480 918.4 163.0
28 0.99 2.97 0.50 1.49 13.05 55.36 4.61 324.62 0.1359 974.5 760.2
29 0.45 1.44 0.22 0.72 12.78 55.33 4.58 323.60 0.1317 -782.2 -646.5
30 0.81 1.62 0.40 0.81 12.85 54.58 3.83 328.59 0.1255 -928.4 -872.4
31 0.00 2.07 0.00 1.03 13.04 53.83 3.08 334.49 0.1222 961.0 672.4
32 0.00 1.62 0.00 0.81 15.34 52.45 1.70 349.17 0.1530 718.0 520.5
33 0.00 1.35 0.00 0.68 14.51 52.29 1.54 349.14 0.1384 924.0 710.9
34 0.00 0.81 0.00 0.41 14.70 52.01 1.26 351.30 0.1407 866.0 722.9
35 0.00 1.26 0.00 0.63 15.49 51.54 0.79 355.02 0.1535 735.0 643.0
36 0.00 2.07 0.00 1.04 15.16 51.32 0.57 356.26 0.1474 928.0 662.7
37 0.00 0.90 0.00 0.45 17.77 51.33 0.58 357.12 0.1925 860.0 714.1
38 0.00 1.17 0.00 0.58 13.72 51.09 0.34 357.26 0.1222 947.0 747.1
39 0.00 1.26 0.00 0.63 14.61 51.10 0.35 357.56 0.1376 971.0 793.9
40 0.00 0.99 0.00 0.50 16.02 51.10 0.35 357.92 0.1621 856.0 688.0
41 1.44 7.20 0.72 3.61 15.13 51.00 0.25 358.33 0.1466 1187.4 949.5
42 0.00 1.26 0.00 0.63 14.06 50.78 0.03 359.76 0.1279 941.0 701.1
43 0.00 1.08 0.00 0.54 14.64 50.47 -0.28 1.98 0.1381 933.0 756.1
44 0.00 0.99 0.00 0.50 15.31 50.37 -0.38 2.43 0.1499 775.0 610.9
45 0.00 1.71 0.00 0.86 15.99 50.31 -0.44 2.62 0.1616 944.0 855.3
46 0.00 1.17 0.00 0.58 13.29 50.13 -0.62 5.31 0.1151 885.0 720.5
47 4.68 10.81 2.35 5.42 15.87 50.03 -0.72 4.38 0.1598 1152.3 800.6
48 0.00 0.90 0.00 0.45 14.58 50.03 -0.72 5.10 0.1375 990.0 872.9
49 0.00 0.54 0.00 0.27 17.71 49.86 -0.89 4.43 0.1918 561.0 440.0
50 0.00 4.50 0.00 2.24 13.08 49.41 -1.34 11.66 0.1133 1102.0 862.7
51 0.00 0.81 0.00 0.41 15.59 49.30 -1.45 8.98 0.1565 841.0 708.4
52 0.00 1.71 0.00 0.86 16.45 49.17 -1.58 8.90 0.1715 868.0 677.7
53 0.00 0.90 0.00 0.45 14.94 49.18 -1.57 10.50 0.1458 792.0 665.0
54 0.00 1.44 0.00 0.72 16.29 49.02 -1.74 9.93 0.1693 983.0 801.2
55 0.00 1.62 0.00 0.81 13.63 48.85 -1.90 15.07 0.1248 889.0 728.2
56 0.00 1.44 0.00 0.73 17.68 48.78 -1.97 9.79 0.1935 922.0 695.2
57 0.00 1.08 0.00 0.55 17.65 48.43 -2.32 11.51 0.1941 696.0 514.4
58 0.00 1.44 0.00 0.73 17.74 47.63 -3.12 15.18 0.1987 775.0 512.0
59 0.00 1.17 0.00 0.59 17.06 47.26 -3.49 17.97 0.1894 788.0 595.2


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
