SDO HMI 2014-08-17 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.09 | 444.18 | 83.74 | 438.42 | -17.65 | 106.09 | 55.34 | 244.94 | 0.8655 | -3.9 | -14.9 | |
|
previous
or next observation for the same group /

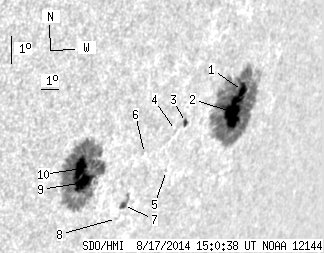

back to the solar disc SDO HMI 2014-08-17 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.28 | 232.58 | 8.91 | 249.86 | -16.47 | 109.51 | 58.76 | 247.49 | 0.8895 | 593.6 | 169.2 | |
| 33.86 | -1.00 | 36.40 | -1.00 | -17.16 | 109.31 | 58.56 | 246.67 | 0.8896 | 692.9 | 999999 | |
| 1.89 | 4.05 | 1.88 | 4.02 | -17.20 | 106.49 | 55.74 | 245.68 | 0.8684 | 516.2 | 390.4 | |
| 0.00 | 1.08 | 0.00 | 1.06 | -17.41 | 106.02 | 55.27 | 245.28 | 0.8653 | 353.0 | 394.2 | |
| 0.00 | 0.63 | 0.00 | 0.63 | -18.74 | 106.15 | 55.40 | 243.88 | 0.8701 | -433.0 | -380.4 | |
| 0.00 | 0.81 | 0.00 | 0.77 | -18.02 | 104.58 | 53.83 | 244.08 | 0.8556 | -432.0 | -323.7 | |
| 2.43 | 7.47 | 2.33 | 7.16 | -19.71 | 104.23 | 53.48 | 242.09 | 0.8581 | -534.9 | -343.5 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -20.13 | 104.05 | 53.30 | 241.57 | 0.8581 | -388.0 | -298.4 | |
| 20.53 | 197.11 | 18.30 | 174.49 | -18.70 | 101.66 | 50.91 | 242.15 | 0.8336 | -702.1 | -277.2 | |
| 18.10 | -9.00 | 15.92 | -9.00 | -18.20 | 101.30 | 50.55 | 242.55 | 0.8288 | -1056.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
