SDO HMI 2014-08-17 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.79 | 47.54 | 39.38 | 157.62 | -9.81 | 331.04 | -79.71 | 101.08 | 0.9885 | 89.3 | -103.8 | |
|
previous
or next observation for the same group /

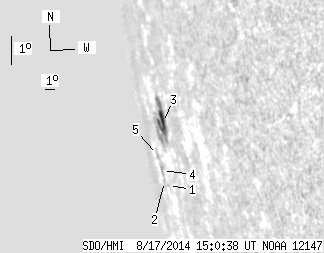

back to the solar disc SDO HMI 2014-08-17 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 2.63 | -11.56 | 330.27 | -80.48 | 102.72 | 0.9911 | -287.0 | -302.6 | |
| 0.00 | 1.62 | 0.00 | 6.43 | -11.53 | 329.51 | -81.24 | 102.57 | 0.9927 | -155.0 | -147.1 | |
| 12.79 | 39.17 | 39.38 | 124.16 | -9.45 | 331.46 | -79.29 | 100.78 | 0.9874 | 121.4 | -61.9 | |
| 0.00 | 3.87 | 0.00 | 15.33 | -11.17 | 329.57 | -81.18 | 102.23 | 0.9925 | -144.0 | -167.3 | |
| 0.00 | 2.16 | 0.00 | 9.07 | -10.73 | 329.09 | -81.66 | 101.72 | 0.9933 | -323.0 | -298.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
