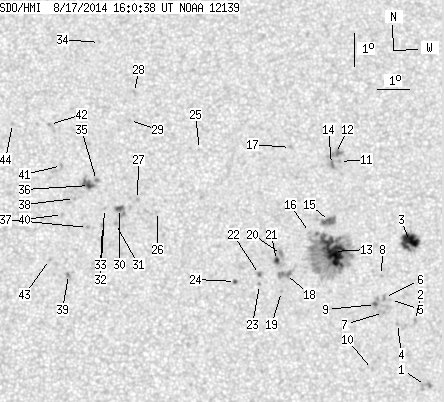

SDO HMI 2014-08-17 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.52 | 292.02 | 29.50 | 147.03 | 14.02 | 56.88 | 6.68 | 319.73 | 0.1784 | -407.0 | -271.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.75 | 0.00 | 3.40 | 9.62 | 60.46 | 10.27 | 286.48 | 0.1841 | -843.0 | -767.5 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 11.60 | 60.22 | 10.02 | 296.87 | 0.1920 | -912.0 | -692.6 | |
| 17.56 | 27.55 | 8.90 | 13.96 | 14.01 | 60.13 | 9.93 | 307.46 | 0.2118 | -1131.2 | -609.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 11.52 | 59.65 | 9.45 | 297.79 | 0.1827 | -1010.0 | -779.5 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 12.25 | 59.46 | 9.26 | 301.81 | 0.1859 | -782.0 | -568.2 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 12.32 | 59.27 | 9.07 | 302.61 | 0.1837 | -927.0 | -823.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.86 | 59.22 | 9.03 | 300.56 | 0.1791 | -953.0 | -824.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.99 | 59.20 | 9.00 | 305.86 | 0.1890 | -775.0 | -641.5 | |
| 0.45 | 5.58 | 0.23 | 2.81 | 12.11 | 58.98 | 8.78 | 302.44 | 0.1777 | -1183.0 | -889.7 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.13 | 58.82 | 8.63 | 292.27 | 0.1603 | -763.0 | -629.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.51 | 58.01 | 7.81 | 322.63 | 0.2157 | -931.0 | -833.8 | |
| 0.00 | 7.92 | 0.00 | 4.02 | 16.75 | 57.89 | 7.69 | 323.75 | 0.2178 | -850.0 | -801.3 | |
| 34.57 | 151.16 | 17.40 | 76.06 | 13.75 | 57.72 | 7.52 | 314.06 | 0.1776 | -1267.0 | -489.1 | |
| 0.00 | 4.41 | 0.00 | 2.24 | 16.42 | 57.75 | 7.55 | 323.28 | 0.2118 | -1128.0 | -940.1 | |
| 0.00 | 9.27 | 0.00 | 4.68 | 14.67 | 57.62 | 7.42 | 318.01 | 0.1877 | -976.0 | -833.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.34 | 56.98 | 6.78 | 319.31 | 0.1763 | -632.0 | -576.9 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 16.96 | 56.46 | 6.27 | 329.62 | 0.2073 | -859.0 | -630.8 | |
| 0.00 | 9.36 | 0.00 | 4.69 | 13.07 | 56.19 | 5.99 | 317.47 | 0.1511 | 922.0 | 776.3 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 12.55 | 56.05 | 5.85 | 315.65 | 0.1430 | 903.0 | 757.9 | |
| 0.00 | 3.96 | 0.00 | 1.99 | 13.68 | 56.08 | 5.88 | 320.65 | 0.1577 | 11.0 | -56.7 | |
| 1.71 | 3.51 | 0.86 | 1.76 | 13.50 | 55.92 | 5.72 | 320.66 | 0.1536 | 771.2 | 541.0 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 13.08 | 55.37 | 5.18 | 321.59 | 0.1421 | 1102.0 | 882.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.77 | 55.37 | 5.17 | 320.22 | 0.1380 | -822.0 | -659.2 | |
| 0.63 | 1.98 | 0.31 | 0.99 | 12.87 | 54.62 | 4.42 | 324.94 | 0.1315 | -990.4 | -809.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 16.93 | 53.57 | 3.37 | 342.39 | 0.1866 | -713.0 | -484.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.03 | 52.21 | 2.01 | 346.76 | 0.1489 | 745.0 | 564.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 15.40 | 51.59 | 1.39 | 351.19 | 0.1531 | 753.0 | 588.1 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 18.70 | 51.52 | 1.32 | 353.99 | 0.2094 | 697.0 | 584.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 17.84 | 51.35 | 1.15 | 354.31 | 0.1943 | 828.0 | 616.4 | |
| 1.80 | 8.55 | 0.90 | 4.28 | 15.13 | 51.02 | 0.82 | 354.59 | 0.1472 | 1100.7 | 906.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 14.67 | 50.89 | 0.69 | 355.16 | 0.1391 | 1108.0 | 987.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.13 | 50.55 | 0.35 | 357.69 | 0.1467 | 944.0 | 706.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 14.61 | 50.48 | 0.28 | 357.99 | 0.1376 | 989.0 | 833.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 20.26 | 50.40 | 0.20 | 359.18 | 0.2349 | 649.0 | 466.2 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 15.99 | 50.30 | 0.10 | 359.41 | 0.1614 | 956.0 | 790.4 | |
| 1.80 | 8.73 | 0.90 | 4.38 | 15.84 | 50.08 | -0.12 | 0.74 | 0.1588 | 1265.2 | 872.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.55 | 50.01 | -0.19 | 1.32 | 0.1365 | 1097.0 | 897.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.44 | 49.60 | -0.59 | 3.78 | 0.1522 | 983.0 | 797.9 | |
| 0.00 | 2.07 | 0.00 | 1.03 | 13.11 | 49.42 | -0.78 | 6.80 | 0.1123 | 1171.0 | 983.8 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 14.95 | 49.23 | -0.97 | 6.54 | 0.1443 | 826.0 | 608.8 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 16.45 | 49.19 | -1.01 | 5.71 | 0.1703 | 859.0 | 657.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 17.72 | 48.80 | -1.39 | 6.94 | 0.1927 | 844.0 | 665.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 13.57 | 48.83 | -1.37 | 11.08 | 0.1217 | 910.0 | 713.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.74 | 47.62 | -2.57 | 12.63 | 0.1966 | 773.0 | 631.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
