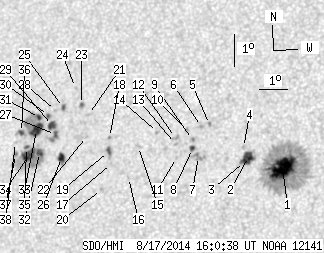

SDO HMI 2014-08-17 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.11 | 371.28 | 50.01 | 206.17 | 16.19 | 24.78 | -25.42 | 66.64 | 0.4492 | -27.1 | -129.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.23 | 192.31 | 17.39 | 103.69 | 15.98 | 28.31 | -21.89 | 64.81 | 0.3978 | -1239.0 | -403.7 | |
| 6.21 | 14.77 | 3.38 | 8.04 | 16.27 | 27.11 | -23.09 | 65.14 | 0.4167 | -932.7 | -424.7 | |
| 3.24 | -2.00 | 1.77 | -2.00 | 16.11 | 26.99 | -23.21 | 65.59 | 0.4175 | -866.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 16.53 | 26.90 | -23.29 | 64.70 | 0.4211 | -693.0 | -538.9 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 17.19 | 25.63 | -24.56 | 64.26 | 0.4427 | -812.0 | -649.9 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 17.11 | 25.37 | -24.83 | 64.62 | 0.4461 | -867.0 | -723.8 | |
| 0.00 | 6.57 | 0.00 | 3.62 | 16.19 | 25.39 | -24.81 | 66.58 | 0.4410 | -961.0 | -803.1 | |
| 1.71 | 2.88 | 0.95 | 1.59 | 16.42 | 25.15 | -25.05 | 66.24 | 0.4456 | -824.4 | -673.5 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 16.70 | 25.11 | -25.09 | 65.68 | 0.4475 | -899.0 | -778.8 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 17.00 | 24.86 | -25.34 | 65.24 | 0.4526 | -684.0 | -537.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.12 | 24.63 | -25.57 | 67.23 | 0.4515 | -640.0 | -523.4 | |
| 0.00 | 3.78 | 0.00 | 2.10 | 16.73 | 24.51 | -25.69 | 66.03 | 0.4562 | -654.0 | -554.4 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 16.55 | 24.53 | -25.66 | 66.40 | 0.4549 | -611.0 | -539.9 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 16.86 | 23.85 | -26.34 | 66.21 | 0.4660 | -618.0 | -487.7 | |
| 0.00 | 2.61 | 0.00 | 1.47 | 16.39 | 23.25 | -26.95 | 67.53 | 0.4724 | 131.0 | 113.9 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 15.43 | 23.03 | -27.16 | 69.63 | 0.4714 | 772.0 | 623.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 15.82 | 22.37 | -27.83 | 69.17 | 0.4824 | 740.0 | 645.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 16.62 | 22.18 | -28.02 | 67.70 | 0.4885 | 842.0 | 706.3 | |
| 1.89 | 5.40 | 1.07 | 3.06 | 16.19 | 22.21 | -27.99 | 68.53 | 0.4862 | 1025.7 | 807.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 15.01 | 22.13 | -28.06 | 70.93 | 0.4827 | 745.0 | 517.0 | |
| 0.00 | 2.34 | 0.00 | 1.34 | 17.28 | 21.31 | -28.89 | 66.89 | 0.5035 | 811.0 | 609.2 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 16.60 | 21.35 | -28.85 | 68.17 | 0.5000 | 860.0 | 604.2 | |
| 0.81 | 2.52 | 0.47 | 1.45 | 17.58 | 21.00 | -29.19 | 66.50 | 0.5090 | 904.0 | 771.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 18.09 | 20.69 | -29.50 | 65.72 | 0.5156 | 672.0 | 550.5 | |
| 1.17 | 2.61 | 0.68 | 1.51 | 17.45 | 20.37 | -29.83 | 67.09 | 0.5172 | 904.5 | 796.0 | |
| 4.77 | 7.92 | 2.74 | 4.55 | 15.91 | 20.56 | -29.64 | 69.89 | 0.5085 | 897.3 | 644.3 | |
| 1.89 | 14.14 | 1.09 | 8.17 | 16.60 | 20.22 | -29.97 | 68.74 | 0.5158 | 1037.8 | 796.4 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 17.34 | 20.09 | -30.10 | 67.43 | 0.5205 | 698.0 | 556.3 | |
| 4.50 | -27.00 | 2.61 | -27.00 | 16.87 | 20.07 | -30.13 | 68.31 | 0.5190 | 909.2 | 999999 | |
| 0.90 | 2.25 | 0.52 | 1.31 | 17.17 | 19.87 | -30.33 | 67.85 | 0.5230 | 737.8 | 590.5 | |
| 1.71 | 32.59 | 1.00 | 18.99 | 17.09 | 19.55 | -30.65 | 68.16 | 0.5270 | 561.5 | 189.5 | |
| 3.78 | 49.25 | 2.19 | 28.61 | 16.02 | 19.74 | -30.46 | 70.06 | 0.5204 | 1072.4 | 414.5 | |
| 10.89 | -31.00 | 6.34 | -31.00 | 16.72 | 19.51 | -30.69 | 68.87 | 0.5262 | 920.3 | 999999 | |
| 10.62 | -32.00 | 6.18 | -32.00 | 15.90 | 19.35 | -30.85 | 70.44 | 0.5254 | 969.6 | 999999 | |
| 0.90 | -32.00 | 0.52 | -32.00 | 16.14 | 19.24 | -30.96 | 70.04 | 0.5278 | 684.6 | 999999 | |
| 1.89 | 5.58 | 1.11 | 3.26 | 16.59 | 18.97 | -31.23 | 69.34 | 0.5331 | 627.7 | 472.8 | |
| 0.00 | 2.34 | 0.00 | 1.37 | 15.91 | 18.87 | -31.33 | 70.64 | 0.5321 | 570.0 | 385.2 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 16.27 | 18.81 | -31.39 | 69.99 | 0.5342 | 482.0 | 347.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
