SDO HMI 2014-08-17 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.09 | 363.21 | 50.73 | 200.66 | 16.18 | 24.86 | -24.78 | 66.24 | 0.4399 | -63.9 | -118.6 | |
|
previous
or next observation for the same group /

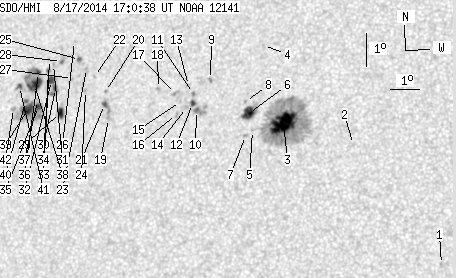

back to the solar disc SDO HMI 2014-08-17 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.93 | 11.82 | 33.89 | -15.76 | 70.77 | 0.2827 | -824.0 | -633.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 15.39 | 30.74 | -18.90 | 63.41 | 0.3508 | -13.0 | -9.9 | |
| 34.21 | 179.68 | 18.38 | 96.51 | 15.94 | 28.34 | -21.31 | 64.39 | 0.3891 | -1278.8 | -424.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 18.31 | 27.36 | -22.28 | 59.88 | 0.4179 | -831.0 | -659.8 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 15.68 | 27.31 | -22.33 | 65.88 | 0.4025 | -610.0 | -468.6 | |
| 10.17 | 17.01 | 5.52 | 9.22 | 16.20 | 27.11 | -22.53 | 64.84 | 0.4082 | -841.3 | -113.8 | |
| 0.00 | 2.25 | 0.00 | 1.22 | 15.52 | 27.09 | -22.55 | 66.44 | 0.4049 | -512.0 | -305.2 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 16.56 | 26.97 | -22.68 | 64.13 | 0.4124 | -549.0 | -451.1 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 17.19 | 25.68 | -23.97 | 63.81 | 0.4343 | -844.0 | -640.1 | |
| 1.17 | 7.83 | 0.64 | 4.30 | 16.21 | 25.32 | -24.32 | 66.20 | 0.4341 | -894.8 | -808.0 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 16.73 | 25.15 | -24.50 | 65.20 | 0.4392 | -896.0 | -744.8 | |
| 1.80 | 3.24 | 0.99 | 1.78 | 16.42 | 25.15 | -24.49 | 65.86 | 0.4375 | -891.2 | -682.6 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 16.97 | 24.94 | -24.70 | 64.85 | 0.4434 | -558.0 | -476.7 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 16.29 | 24.96 | -24.68 | 66.29 | 0.4396 | -605.0 | -512.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.46 | 24.73 | -24.91 | 66.08 | 0.4438 | -626.0 | -490.2 | |
| 0.00 | 2.34 | 0.00 | 1.29 | 16.06 | 24.65 | -25.00 | 67.00 | 0.4430 | -692.0 | -541.6 | |
| 0.00 | 3.42 | 0.00 | 1.89 | 16.70 | 24.52 | -25.12 | 65.71 | 0.4479 | -684.0 | -563.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 16.82 | 23.91 | -25.74 | 65.88 | 0.4573 | -710.0 | -519.6 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 15.82 | 22.29 | -27.36 | 68.94 | 0.4757 | 908.0 | 708.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 16.64 | 22.05 | -27.59 | 67.41 | 0.4825 | 983.0 | 774.1 | |
| 1.62 | 5.94 | 0.91 | 3.35 | 16.24 | 22.08 | -27.56 | 68.20 | 0.4804 | 1009.4 | 796.1 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 17.08 | 21.59 | -28.05 | 66.81 | 0.4910 | 866.0 | 704.2 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 17.31 | 21.26 | -28.38 | 66.56 | 0.4966 | 761.0 | 656.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 16.63 | 21.34 | -28.31 | 67.83 | 0.4926 | 875.0 | 720.6 | |
| 0.99 | 2.34 | 0.57 | 1.34 | 17.57 | 20.96 | -28.68 | 66.22 | 0.5019 | 932.3 | 772.9 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 18.12 | 20.69 | -28.96 | 65.36 | 0.5083 | 639.0 | 582.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 16.98 | 20.81 | -28.83 | 67.45 | 0.5014 | 758.0 | 660.0 | |
| 0.54 | 4.59 | 0.31 | 2.64 | 17.48 | 20.33 | -29.32 | 66.76 | 0.5103 | 979.0 | 729.2 | |
| 4.59 | 7.56 | 2.62 | 4.32 | 15.91 | 20.55 | -29.09 | 69.64 | 0.5008 | 952.3 | 689.9 | |
| 2.25 | 14.58 | 1.29 | 8.39 | 16.64 | 20.25 | -29.39 | 68.40 | 0.5078 | 1058.1 | 804.9 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 17.37 | 20.05 | -29.59 | 67.11 | 0.5136 | 620.0 | 520.6 | |
| 4.14 | -30.00 | 2.38 | -30.00 | 16.87 | 20.07 | -29.58 | 68.04 | 0.5113 | 935.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 17.51 | 19.88 | -29.76 | 66.93 | 0.5166 | 504.0 | 367.2 | |
| 0.63 | 2.25 | 0.36 | 1.30 | 17.17 | 19.90 | -29.74 | 67.56 | 0.5148 | 770.6 | 633.3 | |
| 3.42 | 43.57 | 1.97 | 25.17 | 16.05 | 19.73 | -29.91 | 69.76 | 0.5128 | 1085.9 | 475.6 | |
| 1.98 | 30.97 | 1.15 | 17.94 | 17.09 | 19.55 | -30.09 | 67.89 | 0.5193 | 589.8 | 208.8 | |
| 0.00 | 1.98 | 0.00 | 1.14 | 16.23 | 19.66 | -29.98 | 69.45 | 0.5144 | 656.0 | 670.4 | |
| 11.79 | -36.00 | 6.82 | -36.00 | 16.72 | 19.47 | -30.17 | 68.63 | 0.5190 | 925.5 | 999999 | |
| 9.27 | -35.00 | 5.36 | -35.00 | 15.94 | 19.35 | -30.30 | 70.15 | 0.5178 | 1010.8 | 999999 | |
| 0.90 | -35.00 | 0.52 | -35.00 | 16.18 | 19.23 | -30.41 | 69.75 | 0.5202 | 732.2 | 999999 | |
| 1.62 | 5.31 | 0.94 | 3.09 | 16.62 | 18.93 | -30.71 | 69.05 | 0.5260 | 630.9 | 512.1 | |
| 0.00 | 2.43 | 0.00 | 1.41 | 15.94 | 18.83 | -30.81 | 70.37 | 0.5250 | 632.0 | 444.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
