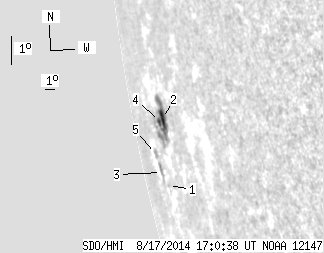

SDO HMI 2014-08-17 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.66 | 54.37 | 18.44 | 161.94 | -9.80 | 330.85 | -78.79 | 101.20 | 0.9860 | 101.7 | -83.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 3.16 | -11.59 | 330.28 | -79.36 | 102.91 | 0.9885 | -270.0 | -298.3 | |
| 5.40 | 43.48 | 14.71 | 123.85 | -9.35 | 331.46 | -78.19 | 100.85 | 0.9842 | 249.9 | -25.0 | |
| 0.00 | 6.57 | 0.00 | 22.76 | -11.28 | 329.37 | -80.27 | 102.47 | 0.9906 | -228.0 | -197.9 | |
| 1.26 | -2.00 | 3.73 | -2.00 | -9.52 | 330.84 | -78.80 | 100.92 | 0.9861 | -160.6 | 999999 | |
| 0.00 | 3.33 | 0.00 | 12.17 | -10.75 | 328.86 | -80.78 | 101.86 | 0.9915 | -398.0 | -318.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
