SDO HMI 2014-08-17 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.18 | 0.00 | 5.08 | 9.19 | 22.94 | -26.15 | 83.11 | 0.4394 | 44.6 | 14.4 | |
|
previous
or next observation for the same group /

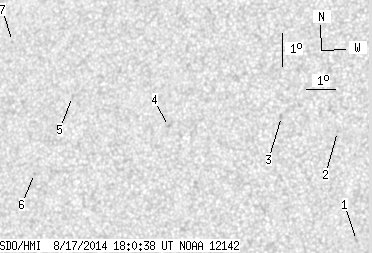

back to the solar disc SDO HMI 2014-08-17 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.90 | 6.23 | 29.09 | -20.00 | 90.33 | 0.3415 | -831.0 | -607.1 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 9.52 | 28.30 | -20.79 | 80.95 | 0.3560 | -867.0 | -723.0 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 9.89 | 26.42 | -22.67 | 80.47 | 0.3867 | -791.0 | -659.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 9.41 | 22.63 | -26.46 | 82.41 | 0.4453 | 833.0 | 620.2 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 10.14 | 19.20 | -29.89 | 81.36 | 0.4981 | 643.0 | 468.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 7.73 | 18.07 | -31.02 | 86.22 | 0.5138 | 694.0 | 527.9 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 11.68 | 16.86 | -32.23 | 78.77 | 0.5346 | 631.0 | 499.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
