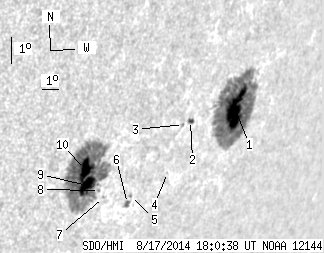

SDO HMI 2014-08-17 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.90 | 419.91 | 76.46 | 432.65 | -17.68 | 105.96 | 56.87 | 245.45 | 0.8773 | 36.9 | -13.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.54 | 212.79 | 42.65 | 241.41 | -17.05 | 109.40 | 60.31 | 247.34 | 0.9018 | 691.0 | 203.0 | |
| 1.80 | 2.88 | 1.88 | 3.01 | -17.11 | 106.64 | 57.55 | 246.39 | 0.8821 | 530.8 | 416.6 | |
| 0.00 | 0.99 | 0.00 | 1.02 | -17.21 | 106.27 | 57.18 | 246.17 | 0.8795 | 258.0 | 298.6 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -18.77 | 106.11 | 57.02 | 244.43 | 0.8824 | -470.0 | -397.3 | |
| 0.00 | 0.90 | 0.00 | 0.90 | -19.34 | 104.26 | 55.17 | 243.14 | 0.8702 | -345.0 | -310.8 | |
| 1.53 | 3.60 | 1.53 | 3.60 | -19.60 | 104.23 | 55.14 | 242.85 | 0.8707 | -543.9 | -362.3 | |
| 0.00 | 0.81 | 0.00 | 0.78 | -19.25 | 102.72 | 53.63 | 242.65 | 0.8579 | -305.0 | -207.7 | |
| 0.00 | 0.54 | 0.00 | 0.51 | -18.98 | 102.37 | 53.28 | 242.80 | 0.8543 | -206.0 | -152.8 | |
| 16.83 | 197.13 | 15.59 | 181.14 | -18.74 | 101.57 | 52.48 | 242.75 | 0.8469 | -680.0 | -295.4 | |
| 16.20 | -9.00 | 14.81 | -9.00 | -18.18 | 101.27 | 52.18 | 243.25 | 0.8426 | -1010.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
