SDO HMI 2014-08-17 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.11 | 410.71 | 74.12 | 430.32 | -17.64 | 105.97 | 57.44 | 245.68 | 0.8815 | 65.3 | 2.0 | |
|
previous
or next observation for the same group /

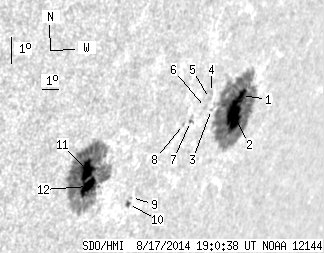

back to the solar disc SDO HMI 2014-08-17 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.12 | 204.95 | 7.09 | 236.94 | -16.57 | 109.57 | 61.03 | 248.06 | 0.9058 | 668.2 | 224.6 | |
| 31.68 | -1.00 | 36.74 | -1.00 | -17.16 | 109.37 | 60.83 | 247.37 | 0.9057 | 650.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.09 | -16.83 | 107.78 | 59.24 | 247.24 | 0.8938 | 512.0 | 462.2 | |
| 0.00 | 1.71 | 0.00 | 1.85 | -16.25 | 107.49 | 58.95 | 247.77 | 0.8904 | 293.0 | 295.6 | |
| 0.00 | 1.35 | 0.00 | 1.46 | -16.44 | 107.46 | 58.92 | 247.56 | 0.8906 | 230.0 | 262.8 | |
| 0.00 | 1.80 | 0.00 | 1.94 | -16.72 | 107.35 | 58.81 | 247.22 | 0.8905 | 251.0 | 217.1 | |
| 0.54 | 2.97 | 0.57 | 3.15 | -17.10 | 106.62 | 58.09 | 246.58 | 0.8861 | 620.8 | 360.3 | |
| 0.00 | 1.08 | 0.00 | 1.13 | -17.16 | 106.23 | 57.69 | 246.39 | 0.8833 | 452.0 | 372.2 | |
| 0.00 | 0.72 | 0.00 | 0.73 | -19.36 | 104.29 | 55.76 | 243.33 | 0.8747 | -406.0 | -260.4 | |
| 1.26 | 2.97 | 1.28 | 3.01 | -19.59 | 104.24 | 55.70 | 243.07 | 0.8749 | -493.4 | -365.8 | |
| 16.65 | 192.17 | 15.43 | 179.02 | -18.17 | 101.29 | 52.76 | 243.49 | 0.8473 | -982.4 | -299.2 | |
| 13.86 | -11.00 | 13.01 | -11.00 | -18.72 | 101.54 | 53.00 | 242.98 | 0.8512 | -713.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
