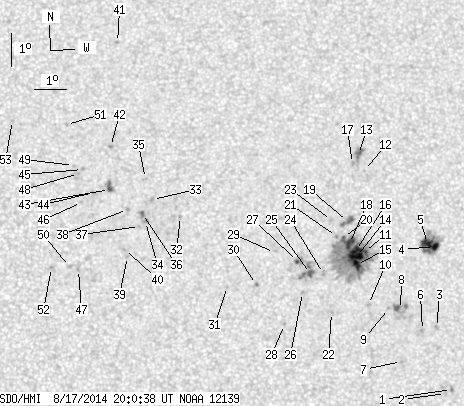

SDO HMI 2014-08-17 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.76 | 292.78 | 25.76 | 148.18 | 13.96 | 56.95 | 8.97 | 309.99 | 0.2039 | -302.3 | -284.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.01 | 9.57 | 60.63 | 12.65 | 283.52 | 0.2231 | -979.0 | -817.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 9.46 | 60.44 | 12.46 | 283.18 | 0.2195 | -823.0 | -658.9 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 11.47 | 60.24 | 12.26 | 292.16 | 0.2257 | -848.0 | -608.6 | |
| 4.77 | 32.58 | 2.44 | 16.64 | 13.94 | 60.33 | 12.35 | 301.58 | 0.2448 | -1077.1 | -548.8 | |
| 8.37 | -4.00 | 4.27 | -4.00 | 14.04 | 60.08 | 12.10 | 302.43 | 0.2420 | -1247.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 11.39 | 59.79 | 11.81 | 292.52 | 0.2182 | -881.0 | -728.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.46 | 59.09 | 11.11 | 289.41 | 0.2018 | -924.0 | -756.8 | |
| 0.00 | 11.97 | 0.00 | 6.07 | 12.05 | 59.13 | 11.14 | 296.52 | 0.2122 | -713.0 | -890.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 12.09 | 58.75 | 10.77 | 297.44 | 0.2068 | -813.0 | -659.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 12.22 | 58.12 | 10.14 | 299.40 | 0.1984 | -863.0 | -621.9 | |
| 2.34 | 145.27 | 1.19 | 73.51 | 13.84 | 58.07 | 10.08 | 306.33 | 0.2120 | -955.5 | -494.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.32 | 58.19 | 10.21 | 314.64 | 0.2401 | -847.0 | -614.8 | |
| 0.00 | 9.00 | 0.00 | 4.60 | 16.82 | 58.02 | 10.04 | 316.58 | 0.2439 | -1155.0 | -874.9 | |
| 10.71 | -11.00 | 5.42 | -11.00 | 13.69 | 57.81 | 9.82 | 306.44 | 0.2070 | -1431.8 | 999999 | |
| 7.02 | -11.00 | 3.55 | -11.00 | 13.45 | 57.80 | 9.81 | 305.48 | 0.2045 | -1263.8 | 999999 | |
| 5.67 | -11.00 | 2.87 | -11.00 | 13.88 | 57.78 | 9.80 | 307.23 | 0.2085 | -1303.4 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 16.55 | 57.82 | 9.83 | 316.35 | 0.2383 | -1060.0 | -879.0 | |
| 7.02 | -11.00 | 3.56 | -11.00 | 14.10 | 57.60 | 9.62 | 308.58 | 0.2083 | -1105.7 | 999999 | |
| 0.00 | 7.47 | 0.00 | 3.79 | 14.77 | 57.57 | 9.59 | 311.19 | 0.2150 | -976.0 | -859.6 | |
| 0.27 | -11.00 | 0.14 | -11.00 | 14.28 | 57.42 | 9.44 | 309.82 | 0.2078 | -919.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.32 | 57.20 | 9.22 | 310.60 | 0.2053 | -893.0 | -732.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.00 | 56.95 | 8.97 | 301.31 | 0.1793 | -785.0 | -692.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.81 | 57.06 | 9.08 | 312.84 | 0.2090 | -864.0 | -706.9 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 13.20 | 56.74 | 8.76 | 307.41 | 0.1875 | -706.0 | -587.1 | |
| 1.80 | 20.52 | 0.91 | 10.34 | 13.20 | 56.33 | 8.35 | 308.73 | 0.1821 | 879.2 | 452.5 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 12.63 | 56.06 | 8.08 | 307.00 | 0.1725 | 965.0 | 700.4 | |
| 0.99 | -25.00 | 0.50 | -25.00 | 13.58 | 55.94 | 7.96 | 311.68 | 0.1809 | 778.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.66 | 55.47 | 7.49 | 304.11 | 0.1548 | 712.0 | 559.5 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 13.86 | 55.22 | 7.24 | 315.51 | 0.1754 | -324.0 | -374.7 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.89 | 54.63 | 6.65 | 313.65 | 0.1566 | -921.0 | -777.7 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.85 | 53.72 | 5.74 | 317.56 | 0.1451 | 746.0 | 597.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 15.00 | 52.29 | 4.31 | 333.19 | 0.1617 | 783.0 | 554.2 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 15.53 | 51.42 | 3.44 | 339.26 | 0.1640 | 820.0 | 660.8 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 14.86 | 51.19 | 3.21 | 339.02 | 0.1518 | 1068.0 | 921.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 16.18 | 51.21 | 3.23 | 341.72 | 0.1733 | 668.0 | 548.7 | |
| 0.45 | 3.60 | 0.23 | 1.81 | 15.10 | 51.10 | 3.12 | 340.13 | 0.1552 | 1164.4 | 982.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.71 | 51.00 | 3.02 | 339.80 | 0.1481 | 1022.0 | 801.7 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 15.23 | 50.63 | 2.65 | 343.18 | 0.1547 | 983.0 | 709.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.79 | 50.61 | 2.63 | 340.02 | 0.1310 | 874.0 | 644.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 14.01 | 50.52 | 2.54 | 341.21 | 0.1340 | 856.0 | 800.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 20.40 | 50.39 | 2.41 | 350.52 | 0.2402 | 913.0 | 712.7 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 17.17 | 50.12 | 2.14 | 348.86 | 0.1851 | 1048.0 | 810.0 | |
| 1.35 | 6.03 | 0.68 | 3.03 | 15.85 | 50.07 | 2.09 | 347.49 | 0.1626 | 1225.7 | 888.4 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 15.76 | 49.57 | 1.58 | 350.36 | 0.1594 | 960.0 | 795.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.47 | 49.22 | 1.24 | 352.98 | 0.1707 | 870.0 | 728.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 15.45 | 49.19 | 1.20 | 352.38 | 0.1532 | 824.0 | 638.1 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 13.40 | 49.08 | 1.10 | 350.87 | 0.1177 | 1065.0 | 722.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 16.34 | 49.10 | 1.11 | 353.61 | 0.1683 | 877.0 | 725.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.59 | 48.94 | 0.96 | 354.64 | 0.1723 | 717.0 | 506.9 | |
| 0.00 | 2.25 | 0.00 | 1.12 | 13.49 | 48.80 | 0.82 | 353.27 | 0.1186 | 947.0 | 696.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.86 | 48.73 | 0.74 | 356.33 | 0.1937 | 759.0 | 537.0 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 13.47 | 48.24 | 0.25 | 357.89 | 0.1174 | 860.0 | 640.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.98 | 47.00 | -0.98 | 4.77 | 0.1962 | 782.0 | 543.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
