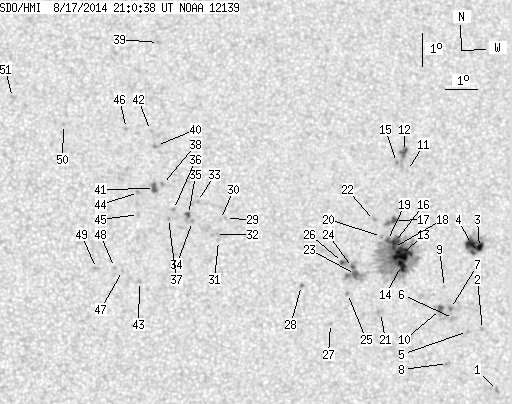

SDO HMI 2014-08-17 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.54 | 308.72 | 27.72 | 156.46 | 13.97 | 56.91 | 9.48 | 309.95 | 0.2106 | -263.9 | -280.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.15 | 9.56 | 60.68 | 13.25 | 282.93 | 0.2329 | -895.0 | -756.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.43 | 60.29 | 12.86 | 291.11 | 0.2349 | -759.0 | -677.3 | |
| 4.14 | 30.78 | 2.12 | 15.75 | 13.93 | 60.32 | 12.89 | 300.51 | 0.2525 | -1054.7 | -550.3 | |
| 8.01 | -3.00 | 4.10 | -3.00 | 14.03 | 60.07 | 12.64 | 301.32 | 0.2497 | -1225.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 11.38 | 59.81 | 12.38 | 291.59 | 0.2270 | -868.0 | -764.0 | |
| 0.00 | 3.15 | 0.00 | 1.60 | 11.79 | 59.38 | 11.95 | 293.95 | 0.2229 | -700.0 | -659.5 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 12.09 | 59.30 | 11.87 | 295.36 | 0.2236 | -1003.0 | -820.7 | |
| 0.00 | 2.79 | 0.00 | 1.41 | 10.42 | 59.14 | 11.71 | 288.36 | 0.2112 | -969.0 | -721.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 12.74 | 59.14 | 11.71 | 298.26 | 0.2258 | -769.0 | -616.8 | |
| 2.07 | 11.61 | 1.05 | 5.89 | 12.07 | 58.99 | 11.56 | 295.83 | 0.2186 | -1160.3 | -766.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 16.35 | 58.15 | 10.72 | 313.34 | 0.2465 | -869.0 | -726.9 | |
| 2.25 | 10.35 | 1.15 | 5.30 | 16.93 | 58.09 | 10.66 | 315.25 | 0.2525 | -987.4 | -777.5 | |
| 18.54 | 153.29 | 9.41 | 77.70 | 13.78 | 57.83 | 10.40 | 305.27 | 0.2157 | -1315.1 | -488.1 | |
| 6.57 | -13.00 | 3.33 | -13.00 | 13.44 | 57.81 | 10.38 | 303.98 | 0.2123 | -1225.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 16.60 | 57.81 | 10.38 | 315.00 | 0.2453 | -920.0 | -850.6 | |
| 2.43 | -13.00 | 1.23 | -13.00 | 14.15 | 57.62 | 10.19 | 307.22 | 0.2164 | -1134.0 | 999999 | |
| 1.98 | 6.75 | 1.01 | 3.43 | 14.82 | 57.65 | 10.22 | 309.60 | 0.2237 | -941.2 | -837.0 | |
| 0.90 | -13.00 | 0.46 | -13.00 | 14.00 | 57.58 | 10.15 | 306.74 | 0.2144 | -1301.1 | 999999 | |
| 0.27 | -13.00 | 0.14 | -13.00 | 14.21 | 57.40 | 9.97 | 308.05 | 0.2141 | -1010.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 14.34 | 57.22 | 9.79 | 309.03 | 0.2130 | -812.0 | -661.1 | |
| 0.00 | 3.60 | 0.00 | 1.82 | 12.02 | 57.09 | 9.66 | 299.61 | 0.1896 | -653.0 | -613.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.84 | 57.02 | 9.59 | 311.41 | 0.2156 | -858.0 | -711.3 | |
| 2.16 | 20.43 | 1.09 | 10.31 | 13.20 | 56.35 | 8.92 | 306.92 | 0.1896 | 821.0 | 209.8 | |
| 0.90 | -23.00 | 0.45 | -23.00 | 13.41 | 56.26 | 8.83 | 308.11 | 0.1906 | 692.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.62 | 56.07 | 8.64 | 305.17 | 0.1802 | 990.0 | 772.3 | |
| 0.81 | 4.86 | 0.41 | 2.45 | 13.57 | 55.95 | 8.52 | 309.74 | 0.1882 | 743.7 | 113.4 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 11.72 | 55.51 | 8.08 | 302.44 | 0.1638 | 735.0 | 533.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.89 | 54.64 | 7.21 | 311.34 | 0.1637 | -819.0 | -754.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.97 | 52.31 | 4.88 | 330.15 | 0.1658 | 707.0 | 550.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 14.94 | 52.15 | 4.72 | 330.87 | 0.1640 | 799.0 | 638.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 14.30 | 52.07 | 4.64 | 329.19 | 0.1538 | 725.0 | 554.9 | |
| 0.00 | 3.60 | 0.00 | 1.81 | 14.48 | 51.98 | 4.55 | 330.30 | 0.1557 | 690.0 | 698.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 15.50 | 51.44 | 4.01 | 336.13 | 0.1671 | 800.0 | 667.1 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 14.89 | 51.27 | 3.84 | 335.45 | 0.1563 | 1019.0 | 838.6 | |
| 1.17 | 4.68 | 0.59 | 2.35 | 15.10 | 51.14 | 3.71 | 336.71 | 0.1589 | 1113.2 | 851.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 15.26 | 50.67 | 3.24 | 339.74 | 0.1584 | 925.0 | 728.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.99 | 50.51 | 3.08 | 340.05 | 0.1530 | 1026.0 | 864.9 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 16.03 | 50.34 | 2.91 | 343.15 | 0.1692 | 941.0 | 735.2 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 20.43 | 50.29 | 2.86 | 348.80 | 0.2420 | 867.0 | 615.1 | |
| 0.00 | 3.51 | 0.00 | 1.77 | 17.23 | 50.17 | 2.74 | 345.91 | 0.1883 | 775.0 | 796.1 | |
| 2.34 | 5.67 | 1.18 | 2.85 | 15.91 | 50.09 | 2.66 | 344.35 | 0.1659 | 1128.3 | 816.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 17.70 | 49.99 | 2.56 | 347.38 | 0.1953 | 743.0 | 585.8 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 13.07 | 49.58 | 2.15 | 341.59 | 0.1163 | 981.0 | 784.0 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 15.79 | 49.58 | 2.15 | 347.05 | 0.1618 | 993.0 | 849.2 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 15.11 | 49.57 | 2.14 | 346.06 | 0.1504 | 747.0 | 561.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 17.76 | 49.22 | 1.79 | 351.13 | 0.1940 | 874.0 | 697.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.40 | 49.05 | 1.62 | 346.59 | 0.1195 | 963.0 | 738.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.50 | 48.80 | 1.38 | 348.74 | 0.1201 | 932.0 | 711.3 | |
| 0.00 | 2.25 | 0.00 | 1.12 | 13.47 | 48.24 | 0.81 | 353.25 | 0.1181 | 778.0 | 604.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.89 | 47.21 | -0.21 | 1.06 | 0.1939 | 804.0 | 590.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 18.73 | 45.58 | -1.85 | 8.38 | 0.2105 | 737.0 | 566.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
