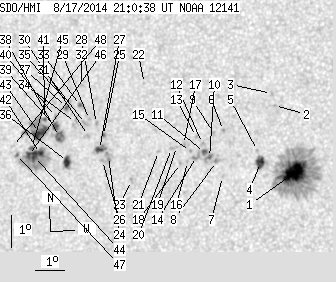

SDO HMI 2014-08-17 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.18 | 381.72 | 44.67 | 207.91 | 16.24 | 24.56 | -22.87 | 64.60 | 0.4128 | 9.2 | -108.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.20 | 181.64 | 13.35 | 96.21 | 15.92 | 28.38 | -19.05 | 62.22 | 0.3563 | -1434.2 | -467.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 17.96 | 27.49 | -19.94 | 58.24 | 0.3832 | -777.0 | -643.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 18.33 | 27.34 | -20.09 | 57.56 | 0.3879 | -723.0 | -621.7 | |
| 6.84 | 11.07 | 3.65 | 5.91 | 16.19 | 27.21 | -20.22 | 62.78 | 0.3748 | -972.3 | -433.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.55 | 27.07 | -20.36 | 62.04 | 0.3792 | -485.0 | -467.5 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 17.12 | 25.85 | -21.58 | 61.90 | 0.4001 | -774.0 | -588.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 15.71 | 25.98 | -21.45 | 65.11 | 0.3897 | -764.0 | -655.2 | |
| 0.00 | 3.06 | 0.00 | 1.65 | 16.16 | 25.73 | -21.70 | 64.26 | 0.3960 | -982.0 | -782.4 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 17.05 | 25.52 | -21.91 | 62.39 | 0.4043 | -851.0 | -681.4 | |
| 0.72 | 3.06 | 0.39 | 1.65 | 16.27 | 25.47 | -21.95 | 64.22 | 0.4003 | -1042.1 | -753.9 | |
| 1.80 | 3.51 | 0.97 | 1.90 | 16.42 | 25.29 | -22.14 | 64.04 | 0.4038 | -1008.0 | -737.7 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 16.69 | 25.19 | -22.24 | 63.50 | 0.4069 | -883.0 | -702.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.90 | 24.95 | -22.48 | 63.23 | 0.4114 | -657.0 | -510.0 | |
| 0.00 | 4.05 | 0.00 | 2.19 | 16.28 | 25.03 | -22.40 | 64.57 | 0.4067 | -576.0 | -638.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.43 | 24.81 | -22.62 | 64.43 | 0.4108 | -903.0 | -748.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 16.12 | 24.74 | -22.69 | 65.19 | 0.4099 | -772.0 | -643.4 | |
| 0.00 | 2.34 | 0.00 | 1.27 | 16.63 | 24.54 | -22.89 | 64.19 | 0.4157 | -746.0 | -578.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 16.05 | 24.51 | -22.92 | 65.54 | 0.4129 | -655.0 | -552.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.56 | 24.31 | -23.12 | 64.54 | 0.4186 | -638.0 | -482.0 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 16.49 | 24.15 | -23.28 | 64.82 | 0.4206 | -669.0 | -502.6 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 16.38 | 23.71 | -23.72 | 65.41 | 0.4262 | -714.0 | -481.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 18.45 | 22.93 | -24.50 | 61.61 | 0.4489 | -384.0 | -365.6 | |
| 0.00 | 2.16 | 0.00 | 1.19 | 15.45 | 22.89 | -24.54 | 68.06 | 0.4333 | 722.0 | 541.9 | |
| 0.00 | 4.77 | 0.00 | 2.64 | 16.15 | 22.00 | -25.43 | 67.13 | 0.4495 | 934.0 | 819.1 | |
| 0.63 | 1.62 | 0.35 | 0.90 | 16.78 | 21.74 | -25.69 | 65.96 | 0.4563 | 1035.4 | 881.4 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 16.01 | 21.81 | -25.62 | 67.53 | 0.4516 | 938.0 | 748.4 | |
| 3.69 | 7.83 | 2.05 | 4.35 | 16.35 | 21.66 | -25.77 | 66.93 | 0.4553 | 1037.7 | 754.0 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 17.14 | 21.44 | -25.99 | 65.43 | 0.4624 | 917.0 | 797.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 17.25 | 21.17 | -26.26 | 65.38 | 0.4666 | 818.0 | 667.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 16.76 | 21.21 | -26.22 | 66.36 | 0.4636 | 864.0 | 777.6 | |
| 0.00 | 2.79 | 0.00 | 1.56 | 17.12 | 21.05 | -26.38 | 65.73 | 0.4677 | 871.0 | 794.5 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 18.28 | 20.72 | -26.70 | 63.62 | 0.4782 | 694.0 | 633.2 | |
| 0.63 | 3.69 | 0.35 | 2.07 | 17.67 | 20.79 | -26.64 | 64.80 | 0.4741 | 948.7 | 770.5 | |
| 0.00 | 5.76 | 0.00 | 3.23 | 17.13 | 20.69 | -26.74 | 65.93 | 0.4728 | 709.0 | 703.8 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 17.71 | 20.39 | -27.04 | 64.98 | 0.4798 | 526.0 | 498.6 | |
| 5.49 | 8.19 | 3.08 | 4.59 | 15.92 | 20.59 | -26.84 | 68.46 | 0.4687 | 1041.3 | 746.3 | |
| 1.08 | 2.52 | 0.61 | 1.42 | 17.58 | 20.30 | -27.13 | 65.29 | 0.4804 | 922.9 | 782.5 | |
| 4.95 | 15.66 | 2.79 | 8.83 | 16.68 | 20.19 | -27.23 | 67.16 | 0.4776 | 1009.7 | 821.3 | |
| 3.06 | -38.00 | 1.73 | -38.00 | 16.97 | 20.01 | -27.42 | 66.68 | 0.4816 | 1035.8 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 17.28 | 19.96 | -27.47 | 66.10 | 0.4838 | 715.0 | 577.9 | |
| 0.72 | 34.02 | 0.41 | 19.32 | 17.17 | 19.58 | -27.85 | 66.55 | 0.4885 | 679.4 | 288.4 | |
| 3.78 | 52.93 | 2.14 | 29.96 | 16.12 | 19.60 | -27.83 | 68.61 | 0.4836 | 1193.4 | 454.6 | |
| 11.61 | -41.00 | 6.58 | -41.00 | 16.76 | 19.47 | -27.96 | 67.42 | 0.4882 | 989.5 | 999999 | |
| 5.94 | -42.00 | 3.36 | -42.00 | 16.02 | 19.40 | -28.03 | 68.93 | 0.4860 | 1137.7 | 999999 | |
| 1.26 | -42.00 | 0.71 | -42.00 | 16.26 | 19.26 | -28.17 | 68.53 | 0.4890 | 698.9 | 999999 | |
| 3.24 | -42.00 | 1.84 | -42.00 | 16.04 | 19.18 | -28.25 | 69.00 | 0.4892 | 861.8 | 999999 | |
| 0.54 | -42.00 | 0.31 | -42.00 | 16.04 | 18.75 | -28.68 | 69.21 | 0.4953 | 541.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 16.28 | 18.57 | -28.86 | 68.84 | 0.4988 | 279.0 | 230.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
