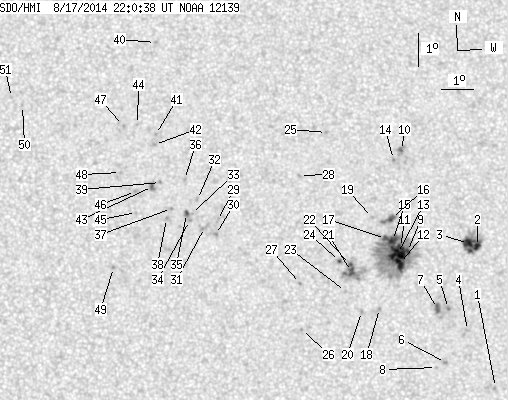

SDO HMI 2014-08-17 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.98 | 273.17 | 28.48 | 138.68 | 14.06 | 56.94 | 10.06 | 306.30 | 0.2185 | -242.4 | -257.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-17 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.41 | 9.61 | 60.70 | 13.82 | 282.67 | 0.2425 | -895.0 | -788.6 | |
| 3.60 | 30.96 | 1.85 | 15.88 | 13.92 | 60.35 | 13.47 | 299.44 | 0.2608 | -1079.9 | -656.6 | |
| 6.39 | -2.00 | 3.28 | -2.00 | 14.02 | 60.06 | 13.19 | 300.27 | 0.2574 | -1230.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 11.37 | 59.89 | 13.01 | 290.63 | 0.2369 | -838.0 | -701.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 12.05 | 59.32 | 12.44 | 294.22 | 0.2321 | -1006.0 | -850.0 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 10.41 | 59.15 | 12.27 | 287.57 | 0.2203 | -1023.0 | -901.5 | |
| 1.80 | 5.40 | 0.92 | 2.75 | 12.06 | 58.97 | 12.09 | 294.83 | 0.2268 | -1192.2 | -925.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 10.27 | 58.86 | 11.98 | 287.28 | 0.2149 | -766.0 | -530.8 | |
| 2.52 | 143.03 | 1.28 | 72.64 | 13.82 | 58.10 | 11.23 | 303.47 | 0.2276 | -951.1 | -475.2 | |
| 0.00 | 5.40 | 0.00 | 2.77 | 16.92 | 58.08 | 11.21 | 313.83 | 0.2589 | -1181.0 | -893.9 | |
| 3.51 | -9.00 | 1.78 | -9.00 | 13.95 | 57.89 | 11.01 | 304.44 | 0.2257 | -1101.9 | 999999 | |
| 7.38 | -9.00 | 3.75 | -9.00 | 13.46 | 57.83 | 10.95 | 302.70 | 0.2206 | -1197.3 | 999999 | |
| 16.11 | -9.00 | 8.19 | -9.00 | 13.77 | 57.78 | 10.90 | 304.00 | 0.2226 | -1374.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.65 | 57.81 | 10.93 | 313.71 | 0.2525 | -922.0 | -835.4 | |
| 4.86 | -9.00 | 2.47 | -9.00 | 14.17 | 57.64 | 10.77 | 305.84 | 0.2244 | -1072.4 | 999999 | |
| 2.34 | 7.92 | 1.19 | 4.03 | 14.84 | 57.64 | 10.77 | 308.27 | 0.2311 | -968.3 | -755.4 | |
| 1.62 | -9.00 | 0.82 | -9.00 | 14.24 | 57.42 | 10.55 | 306.63 | 0.2220 | -965.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.10 | 57.14 | 10.26 | 298.57 | 0.1992 | -855.0 | -692.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 14.89 | 57.04 | 10.16 | 309.98 | 0.2236 | -937.0 | -679.1 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 12.03 | 56.57 | 9.69 | 299.53 | 0.1901 | -901.0 | -650.7 | |
| 3.15 | 22.77 | 1.59 | 11.51 | 13.25 | 56.30 | 9.42 | 305.68 | 0.1971 | 805.1 | 246.7 | |
| 0.90 | -21.00 | 0.45 | -21.00 | 13.47 | 56.28 | 9.40 | 306.64 | 0.1989 | 703.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.64 | 56.09 | 9.21 | 303.62 | 0.1884 | 935.0 | 692.6 | |
| 0.81 | 2.07 | 0.41 | 1.05 | 13.56 | 55.93 | 9.06 | 308.04 | 0.1952 | 762.9 | 601.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.53 | 55.70 | 8.82 | 322.13 | 0.2393 | -931.0 | -749.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 11.51 | 54.67 | 7.79 | 302.23 | 0.1578 | 762.0 | 647.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.91 | 54.68 | 7.80 | 309.24 | 0.1717 | -1032.0 | -777.4 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.22 | 54.77 | 7.90 | 321.41 | 0.2124 | -822.0 | -597.6 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 14.88 | 52.13 | 5.25 | 327.99 | 0.1676 | 640.0 | 575.1 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 14.45 | 52.06 | 5.18 | 326.91 | 0.1608 | 930.0 | 789.8 | |
| 0.00 | 4.86 | 0.00 | 2.44 | 14.67 | 51.71 | 4.84 | 329.38 | 0.1609 | 811.0 | 726.6 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 15.53 | 51.51 | 4.64 | 332.97 | 0.1721 | 796.0 | 660.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 15.10 | 51.31 | 4.44 | 332.78 | 0.1641 | 552.0 | 481.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 14.89 | 51.25 | 4.37 | 332.51 | 0.1603 | 1073.0 | 921.8 | |
| 0.99 | 1.98 | 0.50 | 0.99 | 15.10 | 51.16 | 4.28 | 333.61 | 0.1629 | 1029.6 | 814.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 16.15 | 51.12 | 4.24 | 336.49 | 0.1788 | 932.0 | 787.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 15.26 | 50.69 | 3.81 | 336.56 | 0.1619 | 941.0 | 773.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.95 | 50.52 | 3.65 | 336.68 | 0.1560 | 1012.0 | 900.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.06 | 50.36 | 3.48 | 340.16 | 0.1726 | 952.0 | 660.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 20.40 | 50.29 | 3.41 | 346.69 | 0.2434 | 883.0 | 675.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.54 | 50.23 | 3.35 | 343.42 | 0.1961 | 824.0 | 675.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 17.23 | 50.19 | 3.31 | 343.12 | 0.1908 | 1027.0 | 857.1 | |
| 0.00 | 4.68 | 0.00 | 2.35 | 15.94 | 50.10 | 3.22 | 341.28 | 0.1692 | 1177.0 | 961.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 17.85 | 49.66 | 2.78 | 346.50 | 0.1987 | 822.0 | 659.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 15.15 | 49.58 | 2.71 | 342.64 | 0.1535 | 748.0 | 600.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.79 | 49.56 | 2.68 | 343.97 | 0.1640 | 1062.0 | 887.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 17.83 | 49.21 | 2.33 | 348.58 | 0.1966 | 860.0 | 708.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.38 | 49.10 | 2.22 | 347.46 | 0.1718 | 950.0 | 694.6 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 13.47 | 48.84 | 1.97 | 344.04 | 0.1219 | 951.0 | 805.3 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 18.45 | 45.99 | -0.89 | 4.15 | 0.2040 | 782.0 | 564.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 18.70 | 45.64 | -1.24 | 5.66 | 0.2087 | 814.0 | 670.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
